Osmotic demyelination syndrome: clinical and neuroimaging characteristics in a series of 8 cases
Letter to the Editor

Osmotic demyelination syndrome: clinical and neuroimaging characteristics in a series of 8 cases

Pei Wang, Tianran Li

Department of Radiology, Fourth Medical Center, Chinese People’s Liberation Army General Hospital, Beijing, China

Correspondence to: Tianran Li, MD, PhD. Department of Radiology, Fourth Medical Center, Chinese People’s Liberation Army General Hospital, 51 Fucheng Road, Haidian District, Beijing 100048, China. Email: ltran@icloud.com; Pei Wang, MM. Department of Radiology, Fourth Medical Center, Chinese People’s Liberation Army General Hospital, 51 Fucheng Road, Haidian District, Beijing 100048, China. Email: wangpei911229@163.com.

Submitted Nov 23, 2022. Accepted for publication Apr 26, 2023. Published online May 10, 2023.

doi: 10.21037/qims-22-1302

Introduction

The first case of the uncommon clinical condition known as osmotic demyelination syndrome (ODS), which includes central pontine myelinolysis (CPM) and extrapontine myelinolysis (EPM), was described by Adams in 1959. It is considered a noninflammatory demyelinating disease and affects the pons (1). Other brain regions, such as the basal ganglia, thalamus, cerebral cortex, and subcortical white matter, can also be involved, according to another study published in 1962 (2). During 1970–1980, it was recognized that the rapid correction of chronic alcoholism, chronic malnutrition and hyponatremia were the main causes of ODS. Treatment must be determined by the etiology and duration of the condition. Acute hyponatremia, especially when accompanied by symptoms, increases the risk of cerebral edema and necessitates immediate treatment. The challenge is in determining if the hyponatremia is temporary or chronic since fast treatment of chronic hyponatremia predisposes patients to ODS. Regarding the ideal rate of adjustment, there is no agreement. The recommendation to correct serum sodium at a rate of no more than 0.5 mmol/L/h is frequently cited (3). Because ODS was mainly identified by autopsy, it was first thought that the condition was deadly. Up to 70–80% of individuals with ODS can survive, according to later studies that used clinical and radiological diagnosis, with 50–60% of all patients showing some neurological recovery(4). Demyelination and fiber-tract compression are caused by edema related to variable osmotic pressures, particularly when hyponatremia is rapidly and excessively corrected. The central nervous system regions with a dense mix of white and gray matter, such as the pons and basal ganglia, are more likely to experience these alterations (5). With the introduction of magnetic resonance imaging (MRI), the incidence of ODS has increased, and some patients have few symptoms or no symptoms. Currently, for suspected patients, a complete medical history and imaging findings are largely used to determine an ODS diagnosis. The imaging data of 8 patients with ODS diagnosed by clinical and imaging examinations in our hospital were analyzed, their imaging features were discussed, and the main points of diagnosis were summarized.

Methods

Clinical data

This was a retrospective analysis of patients diagnosed with ODS in the Fourth Medical Center of PLA General Hospital from January 2017 to July 2022 according to their clinical manifestations, physical examinations and MRI examinations. There were 8 patients, with 5 males and 3 females, aged from 30 to 68 years. The clinical data of each patient were analyzed, including age, sex, past medical history, clinical manifestations and MRI findings. See Tables 1,2 and Figures 1,2 for details.

Table 1

Clinical features and magnetic resonance imaging findings of the 8 osmotic demyelination syndrome patients

Patient number Age (years) Sex Clinical symptoms Anamnesis Serum Na+: mmol/L
1 61 Male Lethargic state Hyponatremia, hypertension, diabetes 139 mmol/L (day 1)
2 49 Female Dizziness Chronic renal insufficiency uremic stage 139 mmol/L (day 2), 142 mmol/L (day 6), 137 mmol/L (day 10)
3 30 Male Dizziness and fever Lymphoma 140 mmol/L (day 1), 138 mmol/L (day 3), 137 mmol/L (day 7)
4 40 Male Psychiatric disorders Chronic renal insufficiency uremia, hypertension, diabetes 140 mmol/L (day 1), 140 mmol/L (day 4), 141 mmol/L (day 5), 137 mmol/L (day 11)
5 56 Female No complaint of discomfort Chronic renal insufficiency, hypertension 139 mol/L (day 1), 126 mmol/L (day 5), 136 mmol/L (day 7), 137 mol/L (day 9), 140 mol/L (day 12)
6 63 Female No complaint of discomfort Chronic renal insufficiency, uremic stage, hypertension 142 mmol/L (day 1)
7 40 Male Dizziness Acute leukemia No tests were done
8 68 Male Dizziness Kidney transplantation, hyponatremia, hypertension, diabetes 127 mmol/L (day 1), 126 mmol/L (day 2), 133 mmol/L (day 4)

Table 2

Clinical features and magnetic resonance imaging findings of the 8 osmotic demyelination syndrome patients (continued)

Patient number Location of lesion Lesion morphology Routine MRI findings Prognosis
1 Pons, bilateral caudate nucleus head, thalamus The pons lesions were symmetrical with a butterfly shape, and the bilateral caudate nuclei and thalamus lesions showed a symmetrical strip shape The pons signal was a symmetrical long T1/ long T2 signal There was no significant change in the patient’s symptoms
The thalamus of the bilateral caudate nucleus showed slightly longer T1 and T2 signal, and DWI showed a low signal
2 Pons Central strip shape Long T1 and long T2 signal, DWI showed high signal The patient’s symptoms improved
3 Pons Symmetrical butterfly wing Long T1 and long T2 signal, DWI was high signal The patient did not improve and requested discharge
4 Pons Asymmetric point sheet Slightly longer T1 signal and slightly longer T2 signal, DWI showed a low signal Death
5 Pons, bilateral thalamus, bilateral basal ganglia The pons lesion was symmetrical with a trident sign and demonstrated symmetric signals within the caudate heads, lentiform nuclei, medial thalami Slightly longer T1, slightly longer T2 signal, DWI showed a high signal The patient’s symptoms improved
6 Pons Symmetrical trident sign Slightly longer T1 signal and slightly longer T2 signal, DWI showed low signal The patient’s symptoms improved
7 Pons Symmetrical trident sign Slightly shorter, slightly longer T1, slightly longer T2 signal, DWI showed a high signal The patient did not improve and requested discharge
8 Pons Symmetrical dot spots Long T1, slightly longer T2 signal, DWI showed a low signal Death

MRI, magnetic resonance imaging; DWI, diffusion weighted imaging.

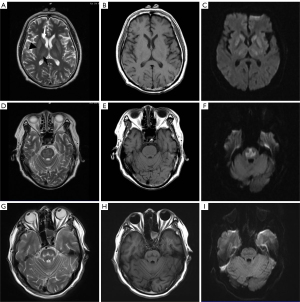

Figure 1 Imaging of two patients. (A-F) This male patient, 56 years old, with a history of chronic renal insufficiency and hypertension, was admitted to the hospital, showing isolated EPM at the level of the mid-pons and basal ganglia. (A) shows a symmetric hyperintense signal on T2WI with the medial thalamus (black arrow), lentiform nuclei (black arrowhead), and caudate heads (white arrow) on T1WI. (B) shows that the caudate heads, lentiform nuclei, and medial thalamus have symmetrical hypointense signals. (C) shows that the caudate heads, lentiform nuclei, and medial thalamus contain symmetrically hyperintense signals on DWI. (D-F) Symmetrical trident sign in the pons, with hyperintense signals on T2WI and DWI and a hypointense signal on T1WI. (G-I) The same male patient, 68 years old, with a history of kidney transplantation, hyponatremia, hypertension, and diabetes. (G-I) A symmetrical trident sign in the pons, with a hyperintense signal on T2WI and a hypointense signal on T1WI and DWI. EPM, extrapontine myelinolysis; T1WI, T1-weighted imaging; T2WI, T2-weighted imaging; DWI, diffusion weighted imaging.

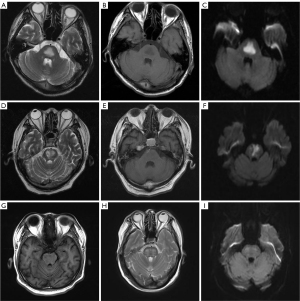

Figure 2 Imaging of 3 patients. (A-C) The same male patient, 30 years old, with a history of lymphoma and leukemia, dizziness and fever, was admitted to the hospital with symmetrical sphenoid pterygoid signal in the pons. (A) The signal intensity was high on T2WI. (B) Low signal on T1WI. (C) High signal on DWI. (D-F) The same male patient, 40 years old, with a history of acute leukemia and dizziness, was admitted, with symmetrical sphenoid pterygoid signal of the pons. (D) High signal on T2WI. (E) shows slightly high and low signals on T1WI. (F) A partial high signal on DWI. (G-I) The same female patient, 63 years old, with a symmetrical sphenoid pterygoid signal of the pons. A symmetrical trident sign was demonstrated in the pons, with a hyperintense signal on T2WI, a hypointense signal on T1WI, and a partial high signal on DWI. T1WI, T1-weighted imaging; T2WI, T2-weighted imaging; DWI, diffusion weighted imaging.

Among the 8 ODS patients, 1 patient had undergone renal transplantation, 2 had acute leukemia, 4 had chronic renal insufficiency and 1 case had hyponatremia, of whom 2 were diagnosed with EPM and CPM and 6 were diagnosed with CPM. Among the patients, 4 developed dizziness, and 1 patient developed lethargy. Imaging findings showed that for all 8 patients, the pons was involved, mainly with symmetrical “butterfly shaped”, “trident-sign” long T1 and long T2 signals in the center of pons, and diffusion weighted imaging (DWI) showed high or low signals. The extrapontine lesions mainly involved the bilateral thalamus and basal ganglia, which showed symmetrical speckles with long T1 and long T2 signals and low signals on DWI.

Instruments and inspection methods

All patients underwent routine MRI scans of the brain with a Siemens 3.0T MRI scanner (Simenns Skyra 3.0T) and 16-channel head phased array coil and routine axial MRI scans of the brain. The parameters for T1-weighted imaging (T1WI) were a repetition time (TR) =1,300 ms, an echo time (TE) =8.6 ms, a field of view (FOV) =22 cm × 22 cm, a matrix =256×256, and a slice thickness of 6 mm; the parameters for T2-weighted imaging (T2WI) were a TR =4,000 ms, a TE= 90 ms, an FOV =22 cm × 22 cm, a matrix =256×256, and a slice thickness of 6 mm. The horizontal Axis T 2 liquid inhibition inversion recovery sequence parameters were as follows: a TR =6,000 ms, an inversion time =2,028 ms, a TE =90 ms, an FOV =22 cm × 22 cm, a matrix =256×256, and a slice thickness of 6 mm. The transverse diffusion-weighted imaging (DWI) parameters were as follows: a TR =6,400 ms, a TE =98 ms, an FOV =22 cm × 22 cm, a matrix =256×256, a slice thickness of 6 mm, and a b value of 0 and 1,000 s/mm2.

This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the ethics committee of Chinese People’s Liberation Army General Hospital. The requirement for individual consent for this retrospective analysis was waived.

Discussion

ODS is a rare noninflammatory osmotic demyelination disease of the central nervous system. CPM is the most typical manifestation and was first reported by Adams in 1959 (1), reflecting the sensitivity of pontine white matter fibers to osmotic changes. Initial occurrences were discovered in individuals who had malnutrition and alcohol use disorders, but by the 1970s, subsequent cases were related to rapid sodium correction (4). Since then, severe burns, liver transplantation, anorexia nervosa, hyperemesis gravidarum, and hyperglycemia have all been linked to CPM. During the course of COVID-19 infection, ODS should be taken into account in cases of hyponatremia and neurological decline (6,7). This study included 8 patients with ODS, 6 of whom had chronic renal insufficiency and/or hyponatremia in their previous medical history. Chronic renal insufficiency patients needed dialysis year-round and had ion disorder. ODS usually occurs between 30 and 50 years of age, and 51.8% to 77.0% of patients are male (8). The average age of the patients in this study was 50.9±13.3 years old (ranging from 30 to 68 years old), and 62.5% of the patients were male.

ODS typically manifests acutely and can advance quickly. ODS has a variety of clinical symptoms that result from various sources. The main clinical symptoms include dysarthria and dysphagia, delayed paralysis, spastic paralysis caused by damage to the base of the pons, and pupil and eye movement disorders caused by changes in the tegmental part of the pons. Some patients even have Locked-in syndrome (9). Involvement of the external position of the pons can cause mental disorders, abnormal movement, depression, and multiple radiculopathy, and inappropriate excitation of neurons can lead to epilepsy (10,11). EPM can affect the pith of the cortex or cortex-subcortex junction, and inappropriate excitation of the sheath and neurons can lead to epilepsy (12).

Due to the use of MRI, ODS can be diagnosed earlier. ODS can be classified as CPM and EPM based on the location of the demyelinating lesions. Both the same brain and other brains can exhibit these two types of lesions. According to a study, CPM complicated with EPM, CPM alone, and EPM alone accounted for 50%, 30%, and 20% of patients with ODS, respectively (13). In this study, among the 8 ODS patients, 2 were diagnosed with EPM complicated with CPM, and 6 were diagnosed with CPM. Because of the small number of patients, the proportion is not referential. Regarding the areas where ODS commonly affects the brain, it is considered that the pons in the brain stem is mainly affected, followed by the basal ganglia and thalamus (5), which may be related to the dense fiber bundles in these areas. With the rapid increase in osmotic pressure, the fiber bundles in these areas are obviously compressed, which is easily observed on MR images. Our research is consistent with previous reports, showing that the pons, basal ganglia and thalamus are the main affected parts of the brain. Our results show that symmetrical “butterfly wing” and “trident” long T1 and T2 signals mainly appear in the center of the pons in CPM patients, and DWI can have a high or low signal. The abnormal signals of “butterfly wing” and “trident sign” symmetry are mostly because the fibers and axons around the corticospinal tract are not involved (14). Two CPM patients with EPM had symmetrical lesions in the basal ganglia and thalamus outside the pontine. Within 24 h after the onset of ODS, the diffusion-limited signal can appear, and from 1 week to 10 days after changes on shown on DWI, T2 and Flair sequences can show symmetrical high signals without occupying effects. Because the change in the T2 signal may be delayed until 2 weeks after symptoms appear, patients with initial negative MRI examinations need to have a subsequent imaging examination.

For decades, there has been discussion on the proper rates of serum Na+ correction in patients with hyponatremia to avoid neurological sequelae. According to the European Clinical Practice Guidelines, serum Na+ should be kept at a maximum of 10 mmol/L for the first 24 hours and 8 mmol/L each day after that (15). Since the proportionate rise in plasma tonicity is greater, the maximum permitted correction for severe hyponatremia should be considerably slower. For patients with severe hypotonic hyponatremia who are at risk of fast autocorrection and ODS, a proactive “desmopressin clamp” with hypertonic saline boluses is an effective, safe, but uncommon therapy option. The Voets equation is logically appropriate for this situation (16).

Δ[Na+]p=[Na+]pViTBW(1.7OiOu−1)

Here, the variables Δ[Na+]p, [Na+]p, Vi, TBW, Oi, and Ou stand for the anticipated change in the plasma sodium concentration, the starting plasma sodium concentration, the infusion volume, the total body water, infusion osmolarity (which is the same as infusion tonicity for crystalloid fluids), and urine osmolarity, respectively (17).

In summary, ODS is a complex disease entity that has many causes and manifests as symptoms involving different brain systems. The MRI manifestations of osmotic demyelinating syndrome have certain characteristics. The key to preventing and managing this condition is early detection, removal, or the correction of disorders that cause osmotic demyelinating syndrome.
