Assessment of hepatic function employing hepatocyte specific contrast agent concentrations to multifactorially evaluate fibrotic remodeling

Introduction

Diffuse parenchymal liver diseases are contributing substantially to global morbidity and represent major causes of deaths worldwide (1). Subsumed disease entities include non-alcoholic fatty liver disease (NAFLD) with a current prevalence of about 20–30% in western countries (2), alcoholic fatty liver disease (3) as well as viral hepatitis (4). Each of these liver disease entities may cause chronic parenchymal inflammation with resulting fibrotic remodeling, portal hypertension, cirrhosis, and ultimately higher likelihoods to progress into hepatocellular carcinoma (HCC) (5). Fortunately, studies demonstrated that early stages of parenchymal remodeling and fibrosis may be reversible (6). Thus, early detection of liver disease seems to be of utmost importance to prevent disease progression with irreversible parenchymal damage and potentially development of malignancy.

Despite its inherent invasiveness, sampling heterogeneity and resultant sampling errors, liver biopsy still represents the reference standard for diagnosis and staging of hepatic remodeling and fibrosis as early hallmark of chronic liver disease (7). Current non-invasive quantitative imaging methods to assess liver fibrosis include ultrasound or magnetic resonance (MR) elastography as well as MR relaxometry. While for ultrasound-based assessments the diagnostic accuracy is highly operator-dependent (8,9), MR elastography (10) and non-contrast MR T1 relaxometry (11) imaging, on the other hand, showed promising results in detecting and characterizing early liver fibrosis. One advantage of T1 mapping over elastography in this regard is a shorter preparation time for the patient and that additional equipment is not necessary.

In addition to the histological stage [according to meta-analysis of histological data in viral hepatitis (METAVIR)] (12), the functional status of the liver is clinically relevant. Scores that address this are, for example, Child-Pugh or model of end-stage liver disease (MELD) (13,14). Methods such as elastography or T1 mapping are able to detect even early histologic stages of fibrotic remodeling. However, changes of the liver function cannot be evaluated on non-contrast MR imaging (MRI). Liver function is mostly assessed through determination of blood laboratory values such as total bilirubin, albumin, creatinine and platelet concentrations (15-19). The pharmacokinetics of hepatobiliary contrast agents through utilization of membrane transporters are depending on overall hepatic function. Hepatocyte-specific MR contrast agents may therefore allow for both global and segmental liver function estimation (15-17). Therefore, hepatic MRI is a valuable tool for quantitative evaluation and monitoring of advanced liver diseases, showing good results in cirrhotic screening. Moreover, it enables the quantitative determination of fibrosis, iron overload and steatosis.

The purpose of this study was to combine established quantitative MR non-contrast methodologies of relaxometry, specifically hepatic fat and iron quantitation with evaluation of intrahepatic distribution and relaxometry-based quantification of hepatocyte-specific contrast material as surrogate for liver function estimation, in order to improve detection of chronic liver diseases using machine learning differentiation algorithms. We present this article in accordance with the STARD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-22-884/rc).

Methods

This retrospective study was approved by the Ethics Committee of Northwest and Central Switzerland (No. BASEC 2020-00943) and in accordance with the Declaration of Helsinki (as revised in 2013). The requirement for written informed consent was waived due to the retrospective nature of the study.

Study population

The local radiology information system (RIS) was retrospectively and consecutively queried for abdominal MRI examinations performed between 07/2018–12/2019 for the following indications: (I) patients with newly diagnosed liver lesions of unknown origin, or (II) patients with abnormally elevated hepatic or biliary parameters without preexistent diffuse liver disease or (III) patients with known liver fibrosis or cirrhosis undergoing screening for HCC as well as a recent liver parenchyma biopsy within one month of the imaging window. Exclusion criteria were: (I) non-contrast imaging protocols or protocols without hepatocyte-specific contrast agents, (II) known systemic diseases with involvement of the liver, e.g. autoimmune hepatitis, (III) known metastatic liver disease, (IV) patients undergoing chemotherapy or immune modulating therapy, (V) patients with mechanical obstruction of the hepatobiliary tree as well as (VI) patients with laboratory results of elevated transaminases and bilirubin levels older than one month within the imaging window (Figure 1).

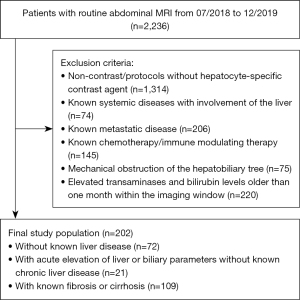

Figure 1 Flowchart with the inclusion and exclusion criteria. MRI, magnetic resonance imaging.

The final study sample consisted of 202 patients in three disease groups: 72 patients (mean age: 53±16 years, 32 men) without known proven liver disease, 21 patients (mean age: 65±15 years, 14 men) with incidentally detected elevated liver enzymes [aspartate aminotransferase (ASAT) >34 U/L or alanine aminotransferase (ALAT) >41 U/L or gamma-glutamyltransferase (GGT) >40 U/L or bilirubin >24 µmol/L] (acute liver disease group) and 109 patients (mean age: 61±11 years, 80 men) with biopsy proven liver fibrosis/cirrhosis (chronic liver disease group); severity of fibrosis was classified by using the histopathologic METAVIR score. The functional classification was graded through calculation of the Child-Pugh score based on clinical information from the electronic patient record.

MR parameters, acquisition and data assessment

All liver MR examinations were performed on one of two scanners systems: 133 liver imaging studies were acquired at 1.5 T (MAGNETOM Avanto FIT, Siemens Healthineers, Erlangen, Germany) and 69 studies at 3 T (MAGNETOM Skyra, Siemens Healthineers, Erlangen, Germany). Imaging protocols included the same sequences and were adapted for the different field strengths. Body phased-array coils of up to 48 channels were used for the examinations.

Prior to intravenous contrast administration, T1 maps were generated by using a single breath-hold axial Look-Locker approach [echo time (TE) =1.32 ms, repetition time (TR) =3 ms, acquisition time (TA) =0.7 s, 3 slices: slice thickness (ST) =8.5 mm, in plane resolution =1.15 mm × 1.15 mm, flip angle =8°, field of view 373×459 mm²]. Subsequently, parenchymal fat fraction and R2* values to detect hepatic iron overload were determined by using an axial whole-organ six-point gradient-echo Dixon T1 sequence (TE =1.26 ms, TR =9.26 ms, TA =17.4 s, 72 slices: ST =3 mm, in plane resolution =1.48 mm × 1.48 mm, flip angle =4°, field of view 308×380 mm²) (14). A fat-saturated T2-weighted sequence (TE =95 ms at 1.5 T, TE =152 ms at 3 T, TR =3,480 ms, TR =3,010 ms at 3 T, TA =88 s at 3 T, TA =134 s at 1.5 T; 35 slices: ST =5 mm, in plane resolution 1.4 mm × 1.4 mm, flip angle =160°, field of view 378×378 mm²) allowed assessment for presence or absence of ascites.

For intravenous contrast administration, a weight-adjusted bolus of hepatocyte-specific gadolinium ethoxybenzyl-diethylenetriaminepentaacetic acid (Gd-EOB-DTPA, 0.25 mmol/mL Primovist, Bayer AG, Leverkusen, Germany) was injected into the right antecubital vein. Patients weighing less than 50 kg received 7.5 mL of undiluted contrast media, patients weighing 50 to 100 kg received 10 mL of contrast media, and a fixed dose of 15 mL was administered if patient weight was above 100 kg. Analogously, whole-organ T1 maps were generated by using the same single breath-hold axial Look-Locker approach (TE =1.32 ms, TR =3 ms, 3 slices: ST =8.5 mm, in plane resolution =1.15 mm × 1.15 mm, flip angle =8°, field of view 373×459 mm²). Fifteen minutes post contrast administration.

Liver volume was evaluated via manual segmentation. Liver volume was calculated based on this segmentation. Data assessment was performed on a volume-of-interest (VOI) based segmentation of left and the right liver lobes, encompassing the entire lobar volume with exclusion of visible hepatic veins or arteries on unenhanced and delayed phase T1 maps, as well as fat fraction and R2* maps. Gd-concentrations in µmol/L were quantitated based on the calculated T1 maps and the relaxivity r1 at 1.5 T (6.9 L/µmol*s) and 3 T (6.2 L/µmol*s) (Figure 2) (18):

[Gd]=1r1(1T1post−1T1pre)[1]

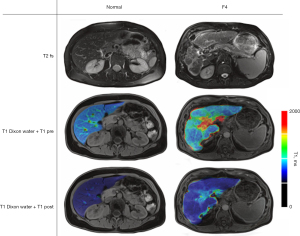

Figure 2 Axial fat saturated (fs) T2-weighted image in patient without histopathologically-confirmed liver disease and a patient with F4 fibrosis showing an inhomogeneous liver surface with focal fibrosis and higher T1 values in the corresponding overlay of T1 maps before (T1pre) and after (T1post) administration of hepatocyte specific gadolinium.

Fat fraction (in %) and R2* as a measure for hepatic iron overload (1/ms) were analogously extracted based on lobar segmentation VOIs. The same segmentations were used as for the T1 maps. Presence or absence of ascites was noted as dichotomous parameter. Fat fraction, R2* and T1 values were generated by using a commercial software (Siemens LiverLab) (19,20).

Statistical analyses

Statistical evaluation of the ability of hepatic function based on post-contrast relaxometry alone to predict presence and type of diffuse parenchymal disease used Wilcoxon signed-rank tests (α=0.05) for hypothesis testing and Spearman’s rho coefficient tests for correlation analyses with hepatobiliary phase hepatic gadolinium concentration (in µmol/L) as dependent variable and successively bilirubin levels (in µmol/L), METAVIR (chronic disease group only) and Child-Pugh scores (chronic disease group only) as independent variables following evaluation for normal distribution using Shapiro-Wilk-tests. Diagnostic accuracy was quantified through receiver operating characteristic (ROC)-curve analyses (21).

For statistical evaluation whether a multiparametric approach allows prediction of presence and type of diffuse parenchymal disease, a machine learning solution for data classification with multiparametric predictors was implemented in Matlab (R2019a, The MathWorks, Natick, United States). Data classification was performed with bootstrap aggregation to differentiate three classes: patients without known liver disease, patients with acute liver disease and patients with fibrosis or cirrhosis (22). A random undersampling boost tree ensemble classifier was used for differentiation of patients without known liver disease and those with METAVIR F1 fibrosis (23). Five-fold cross-validation was used for all models as a measure to evaluate the classification performance in small data sets. Field strength independent predicting factors used for the multiparametric approach were (I) patient age (in years); (II) hepatic fat fraction (in %); (III) presence of liver iron overload (R2* >39/ms at 1.5 T, R2* >69 ms at 3 T) (24); (IV) hepatobiliary phase parenchymal gadolinium concentrations in the left and the right liver lobe (in µmol/L) and (V) absence/presence of ascites. Analogously, diagnostic accuracy was quantified through ROC-curve analyses.

Statistical analyses were performed using commercially available software solutions (JMP v14, SAS Institute, North Carolina, United States); a P value of less than 0.05 was considered to be statistically significant.

Results

Disease spectrum in study population

Patients without liver disease were younger than patients with acute (P=0.007) or chronic (P=0.002) liver disease (Table 1).

There were no differences for R2* between all three disease groups (P>0.05) (Table 1).

In contrast, the hepatic fat fraction of patients with mild liver fibrosis (METAVIR F1) was significantly higher compared to patients higher grades of liver fibrosis (METAVIR F2–F4) (Table 2).

Hepatic function based on post-contrast relaxometry alone predicting presence and type of diffuse parenchymal disease

Hepatobiliary phase gadolinium concentration was used as surrogate for hepatic function; mean delay of hepatobiliary phase MRI was 912±159 s.

Mean hepatobiliary phase hepatic parenchymal gadolinium concentration was significantly higher in patients without known liver disease (mean: 0.52±0.19 µmol/L) compared to patients with acute liver disease (mean: 0.28±0.16 µmol/L) or liver fibrosis/cirrhosis (mean: 0.31±0.12 µmol/L; P<0.001), while no significant difference in gadolinium concentration was seen between patients with acute liver disease and with fibrosis/cirrhosis (P=0.29) (Table 1, Figure 3). Specifically, mean hepatobiliary phase gadolinium concentration was higher in patients without known liver disease (mean: 0.52±0.19 µmol/L) than in subjects with METAVIR F2 (mean: 0.33±0.12 µmol/L, P=0.016), MEATVIR F3 (mean: 0.30±0.15 µmol/L, P=0.003) and METAVIR F4 liver fibrosis (mean: 0.28±0.10 µmol/L, P<0.001) (Table 2, Figure 3). Resultant moderate negative correlations between mean hepatobiliary phase parenchymal gadolinium concentration and the METAVIR stage of liver fibrosis (r=−0.44, P<0.001) were observed.

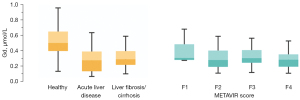

Figure 3 Mean hepatobiliary phase Gd concentration in the liver in subjects without histopathologically-proven liver disease and patients with acute liver disease and known fibrosis (left) and depending on the METAVIR score (right). Gd, gadolinium; METAVIR, meta-analysis of histological data in viral hepatitis.

The highest diagnostic accuracy to differentiate patients without known liver disease from patients with liver fibrosis/cirrhosis was reached using a hepatobiliary phase hepatic gadolinium parenchymal concentration threshold of 0.42 µmol/L with an area under the curve (AUC)_{Linear regression} of 0.73 (accuracy =0.74, sensitivity =0.74, specificity =0.63) in a monoparametric model.

Moderate negative correlations between mean hepatobiliary phase parenchymal gadolinium concentrations and the Child-Pugh stage of liver cirrhosis (r=−0.35, P<0.001) were observed; strong negative correlation between hepatobiliary phase hepatic parenchymal gadolinium concentrations and serum bilirubin levels were seen overall (r=−0.61, P<0.001), as well as within each subgroup (no proven liver disease: r=−0.38, P=0.009; acute liver disease: r=−0.51, P=0.02; fibrosis/cirrhosis: r=−0.38, P=0.002) (Figure 4). An overview of the values in the individual Child-Pugh stages is provided in Table 3.

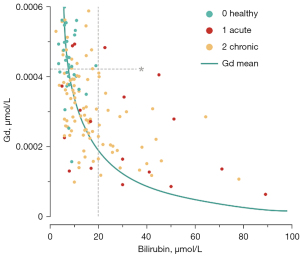

Figure 4 Hepatic hepatobiliary phase Gd concentration in correlation with the plasma total bilirubin level showing a high negative correlation (r=−0.61, P=0.0002). Illustration of a superimposed exponential function intended to represent nonlinear effects (blue). Of note: the majority of patients in the acute liver disease group as well as the chronic liver disease group had total bilirubin levels below the clinically used for short (vertical dotted line) and therefore the liver function would be characterized as normal; the horizontal dotted line shows the threshold determined in our study to differentiate best between compromised hepatic function and normal hepatic function using the hepatobiliary phase Gd concentration. Gd, gadolinium.

Multiparametric approach predicting presence and type of diffuse parenchymal disease

Predictors incorporated into the multiparametric approach were hepatic fat fraction, patient age, presence of hepatic iron overload, parenchymal hepatobiliary phase hepatic gadolinium concentrations in left and right hepatic lobes as well as the occurrence of ascites.

Utilization of the multiparametric approach to differentiate patients without known liver disease from patients with known fibrosis/cirrhosis showed a better diagnostic performance than single-factor (hepatic function based on post-contrast relaxometry alone) linear regression when using the same hepatobiliary phase parenchymal gadolinium concentration threshold of 0.42 µmol/L (AUC_{Multiparametric} =0.82 vs. AUC_{Linear regression} =0.73; accuracy_{Multiparametric} =0.76 vs. accuracy_{Linear regression} =0.74, Table 4).

When targeting differentiation of all three disease groups (no liver disease vs. acute liver disease vs. fibrosis/cirrhosis), an AUC_{Multiparametric} =0.79 was reached. The models used failed to differentiate between the three disease groups by using hepatobiliary phase hepatic gadolinium concentrations alone.

For subgroup differentiation of patients without known liver disease and with mild fibrotic changes of the liver parenchyma (METAVIR F1), a random undersampling boost tree ensemble classifier yielded a diagnostic accuracy of 0.74 (AUC_{Multiparametric} =0.84), as the four METAVIR groups could not be differentiated using hepatobiliary phase hepatic gadolinium concentration alone, a further differentiation between patients without histologically-proven liver disease and only F1 fibrosis was again not possible.

Discussion

The aim of our study was to investigate the combination of established quantitative MR non-contrast methodologies of relaxometry, specifically hepatic fat and iron quantitation with relaxometry-based quantification of hepatocyte-specific contrast material as surrogate for liver function (24,25). A multifactorially approach was used to assess the ability to classify different stages of fibrotic remodeling. While in general non-contrast T1 mapping has been known to predict fibrotic changes (11,26), recent investigations showed the additional value of contrast enhanced T1 mapping as a useful parameter of hepatocyte transporter function (27,28). In contrast to previously established methods, which predominantly use either native T1 mapping or calculation of the reduction rate, an advantage of our method is that a parameter is calculated that can be used both for the diagnosis of liver fibrosis or cirrhosis and as a surrogate parameter for liver function (29).

Our results confirm this letter observation by showing significantly lower hepatobiliary phase hepatic gadolinium parenchymal concentration in patients with acute liver disease as well as patients with known liver fibrosis compared to patients without known liver disease. As there were no significant differences observed in hepatobiliary phase hepatic gadolinium parenchymal concentrations in patients with acute elevation of hepatic or biliary parameters and patients with known fibrosis or cirrhosis, at least two mechanisms individually or conjointly appear to be responsible: for acute hepatic disease with substantially elevated bilirubin levels a reduced excretion of gadolinium into the biliary radicals has been observed as bilirubin and Gd-EOB-DTPA compete for the same hepatocyte transporter molecules; for chronic liver disease remodeling and transformation of hepatocytes and associated biliary radicals into thickened fibrotic membranes lead to overall less processing capabilities in patients with hepatic fibrosis or cirrhosis.

Clinical scores assessing hepatic function use blood laboratory values such as total bilirubin with a normal cutoff value of >20 µmol/L. However, the majority of the patients with either acute or chronic liver disease in our study showed bilirubin levels of <20 µmol/L, and according to the clinical scores would characterize the hepatic function to be normal (30-32). Our study showed that a hepatobiliary phase hepatic gadolinium parenchymal concentration threshold of 0.42 µmol/L differentiates patients with temporarily pathologically altered liver enzymes from patients without histopathologic confirmed liver disease with an accuracy of 0.73.

Differentiation of patients with fibrosis/cirrhosis from patients with temporary elevation of liver enzymes was not possible either multi- or mono-parametrically. Hence, temporary elevation of liver enzymes may be considered a confounding factor for the evaluation of liver fibrosis based on T1 relaxometry alone.

The diagnostic performance of the multiparametric approach with an AUC of 0.82, a sensitivity of 0.84 and a specificity of 0.68 when evaluating parenchymal fibrotic changes in a patient group with a METAVIR score of F1–F4 is within the results of previous studies using MRI elastography, which is still seen as the reference standard for non-invasive classification of liver fibrosis: for instance meta-analysis based on 697 patients by of Singh et al. in 2015 showed a mean AUC of 0.84 for all stages of fibrosis (0.73 sensitivity, 0.79 specificity) (33). Recent studies calculating the T1 reduction rate show even better results in some cases: for example, Li et al. showed that it was possible to differentiate between patients with and without liver cirrhosis and between different Child-Pugh stages with an AUC >0.95 (34). However, the patients without liver cirrhosis also suffered from chronic liver disease. Diagnostic performance is similar compared with other more recent studies that calculated T1 reduction rates: For example, Obmann et al. achieved an AUC of 0.83 for distinguishing patients with and without cirrhosis (29). In contrast to this study, we did not evaluate diagnostic performance to differentiate between different Child-Pugh stages but examined histological subgroups. For a focused subgroup differentiation of patients without known liver disease and with mild fibrotic changes of the liver parenchyma (METAVIR F1), a diagnostic accuracy of 0.74 (AUC_{Multiparametric} =0.84) was reached in our study. Identification of this subgroup may be considered of utmost importance as the likelihood of fibrosis reversibility is the highest.

Lastly, a major advantage of contrast-enhanced T1 mapping in comparison to non-contrast T1 mapping is the independence of underlying magnetic field strength for the calculation of hepatobiliary phase hepatic gadolinium parenchymal concentrations and thresholds as reported in previous studies (27,28).

Our study had several limitations which have to be addressed. Primarily, it was a single center retrospective analysis with a relatively small study sample and different etiologies of liver cirrhosis. Secondarily, the relaxivity r1, which was fundamental for the calculation of hepatic Gd-EOB-DTPA concentrations, was chosen from the literature for blood plasma at 37 ℃, neglecting significant differences depending on the tissue, warming effects due to the MRI examination as well as the indoor climate and inhomogeneity of the B0 field (18,35). Therefore, effects of different scanners, warming during examination and the relaxivity of Gd-EOB-DTPA in hepatic tissue need to be investigated for future studies. The measurement of the hepatobiliary phase intrahepatic contrast agent concentration was performed about 15 minutes after contrast injection, which is within the hepatocyte phase (15,24,36), though identical delays in our study with resulting inter-patient differences could not be achieved due to the retrospective character of the study design. Further studies are needed to determine a correction factor and investigate the influence of the measurement time point. In addition, a comparison between the reduction rate and intrahepatic gadolinium concentration would be interesting in terms of diagnostic performance. Thirdly, due to the different respiratory positions in the T1 maps before and after contrast administration, the calculation of gadolinium concentrations is performed ROI-based and not voxel-wise. This limits the local information and necessitates the acquisition of more slices if necessary using breath-triggered gating. Last, a multiparametric approach using machine learning is always highly dependent on the choice of parameters used. We ultimately decided to use only image-based quantitative and non-quantitative parameters with the exception of patient age. Ultimately, the selection is arbitrary and the additional use of, for example, clinical parameters as input variables could lead to an improvement of the results. However, a disadvantage of these multiparametric analyses is that it is difficult to find causality for the results. For example, it is unclear why a multiparametric approach leads to an improvement in diagnostics. In the best case, this is due to a balanced selection of input parameters; in the worst case, it is due to differences in individual variables across (sub-)groups. We have tried to exclude this as best as possible and think that our additionally chosen input parameters are plausible. For example, the presence of ascites is definitely a known surrogate parameter for the (functional) severity of liver fibrosis. Optimally, this needs to be verified in much larger collectives and preferably a multicenter setting.

Conclusions

In summary, quantification of hepatic Gd-EOB-DTPA concentrations might provide an additional surrogate parameter for the liver function and might improve detection of fibrotic changes in a multiparametric approach. In patients receiving hepatocyte-specific contrast agents, an improved detection of chronic liver diseases might be achieved.

Acknowledgments

Funding: None.

Footnote

Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-22-884/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-22-884/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This retrospective study was approved by the Ethics Committee of Northwest and Central Switzerland (No. BASEC 2020-00943) and in accordance with the Declaration of Helsinki (as revised in 2013). The requirement for written informed consent was waived due to the retrospective nature of the study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
