Nomogram based on quantitative dynamic contrast-enhanced magnetic resonance imaging, apparent diffusion coefficient, and clinicopathological features for early prediction of pathologic complete response in breast cancer patients receiving neoadjuvant chemotherapy

Introduction

Breast cancer is currently the most common malignant tumor in females, accounting for 11.7% of all malignant tumors. Moreover, breast cancer is one of the leading causes of death in women (1,2). Neoadjuvant chemotherapy (NACT) is the standard of care for locally advanced breast cancer. It is mainly used for reducing the primary tumor size and downstaging of disease, which facilitates breast conservation (3,4). Patients achieving pathologic complete response (pCR) after NACT show lower rates of distant recurrence and longer disease-free survival (5-7); the improved outcomes are particularly observed in patients with human epidermal growth factor receptor 2 (HER2)+ breast cancer and those with the more aggressive triple negative subtypes (5,8,9). The reported pCR rates range from 6% to 45% depending on the tumor subtype and the NACT regimen (10-13). Therefore, early detection of NACT non-responders is a key imperative in order to spare them from ineffective therapies and their potential side effects, and to facilitate personalized alterations in treatment regimen.

The National Comprehensive Cancer Network Clinical Practice Guidelines in Oncology-Breast Cancer (version 2.2022) recommend magnetic resonance imaging (MRI) for assessment of breast cancer response to NACT. Compared with mammography and ultrasonography, MRI offers higher soft-tissue resolution. Moreover, MRI not only delineates the morphological characteristics of lesions, but also reflects the pathophysiological state of the tissue through dynamic contrast-enhanced magnetic resonance imaging (DCE-MRI) and diffusion weighted imaging (DWI). In a previous study, DCE-MRI parameters were found to predict the efficacy of NACT, but most of these are semi-quantitative parameters. A few studies have focused on the use of quantitative DCE-MRI parameters combined with perfusion and diffusion quantitative parameters to identify early predictors of pCR in breast cancer patients after NACT (14-21).

The pCR rate differs in different tumor subtypes. Moreover, several factors such as estrogen receptor (ER) negativity, high Ki67, low T stage, and high histologic grade have been shown to be associated with pCR. To better predict pCR, an increasing number of clinical studies have developed clinical-pathological variables-based nomogram models, in which complex logistic regression models were transformed into simple and visual graphical models that include multiple risk factors. Therefore, several studies have developed nomograms based on clinical-pathologic variables to predict pCR (22-25). However, there is a paucity of well-designed nomograms for predicting the probability of pCR. Therefore, the purpose of this study was to develop nomogram incorporating clinical-pathologic variables, quantitative DCE-MRI parameters, and ADC values obtained before and after 2 cycles of NACT to estimate the probability of pCR in breast cancer patients after NACT. We present this article in accordance with the TRIPOD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-22-869/rc).

Methods

Patients

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This study was approved by the Ethics Committee of Fujian Provincial Hospital (No. K2021-05-007, May 2019). Informed consent was obtained from all subjects involved in the study. In total, 215 patients with suspected breast cancer between July 2019 and January 2022 were prospectively collected in our hospital. The inclusion criteria were: (I) no needle biopsy, radiotherapy, or chemotherapy before MRI examination; (II) availability of complete MRI review data before NAT and within 3 weeks after NAT2 cycle treatment, with good image quality; (III) availability of complete pathological data; (IV) provision of written informed consent by patients before examination. The exclusion criteria are presented in Figure 1.

Figure 1 Flowchart of case selection and distribution in this study. MR, magnetic resonance; NACT, neoadjuvant chemotherapy; pCR, pathologic complete response; npCR, non-pathologic complete response.

Neoadjuvant chemotherapy regimen

NACT was formulated in accordance with the institution’s standard regimen (11). The chemotherapy regimen was intravenously administered every 3 weeks for 6–8 cycles. The chemotherapy regimens of 74 female patients were as follows: 21 patients received TCbHP regimen (docetaxel, carboplatin, trastuzumab, pertuzumab); 12 patients received AC-THP regimen (epirubicin, cyclophosphamide, paclitaxel, trastuzumab, pertuzumab); 12 patients received AC-T regimen (epirubicin, cyclophosphamide, paclitaxel); 11 patients received TAC regimen (paclitaxel or docetaxel, epirubicin, cyclophosphamide); 9 patients received AC regimen (epirubicin, cyclophosphamide); 3 patients received AC-TP regimen (epirubicin, cyclophosphamide, paclitaxel, carboplatin); 2 patients received AC-H regimen (Epirubicin, cyclophosphamide, trastuzumab); 2 patients received TP regimen (paclitaxel, carboplatin); and 1 patient received THP regimen (paclitaxel, trastuzumab, pertuzumab) and 1 patient received AT regimen (epirubicin, paclitaxel).

Image acquisition and analysis

All MR examinations were performed in a 3.0T MR (MAGNETOM Prisma, Siemens Healthcare, Erlangen, Germany) with 18-channel dual breast-dedicated phase-controlled surface coil. All patients were scanned in the prone position, with breasts naturally suspended in the coil. The sequences included T1WI (TR/TE =6.03/2.82 ms, thickness =0.9 mm, number of slices =160, bandwidth =300 Hz/Px, FOV read =340 mm, FOV phase =100%, matrix size =403×448), fat saturation T2WI (TR/TE =3,730/69 ms, thickness =4 mm, number of layers =35, bandwidth =246 Hz/Px, FOV read =340 mm, FOV phase =100%, matrix size =384×384, averages =2, concatenations =2), and dynamic contrast enhanced MRI (DCE-MRI) (TR/TE =4.03/1.33 ms, thickness =1.5 mm, number of slices =112, bandwidth =1,120 Hz/Px, FOV read =350 mm, FOV phase =100%, matrix size =259×320, measurements 36, volume: 350 mm × 350 mm × 1.5 mm × 112, scan time =343 s). The parameters of multiple b-value DWI sequences were TR/TE =5,700/62 ms, layer thickness =4 mm, number of layers =35, bandwidth =2,024 Hz/Px, FOV read =340 mm, FOV phase =60%, matrix size =114×190; b-values =0, 30, 50, 80, 120, 160, 200, 500, 1,000, 1,500, 2,000 s/mm², averages =1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 3; scan time =308 s. The contrast agent used was gadopentetate meglumine injection (Magnevist, 0.2 mmol/kg; GE Healthcare), which was injected through the dorsal vein of the hand through a high-pressure syringe at an injection rate of 1.5–2.0 mL/s; 15–20 mL of normal saline was injected to flush the connecting tube of the residual contrast agent.

Image analysis

Data post-processing was performed by two radiologists with 10 and 3 years of experience in breast tumor MRI diagnosis, respectively. On the Siemens workstation (Siemens Syngo.Via MR workspace), the solid part with the largest early enhancement in the lesion area was selected and the region of interest (ROI) was manually delineated, with a size of 27–193 mm², avoiding areas with obvious necrosis, cystic degeneration, and/or liquefaction. We used the two compartments Tofts model in Tissue 4D module of Siemens Syngo.Via workstation. This model estimated three parameters, including K_trans (transfer constant), K_ep (rate constant), and V_e (relative extravascular extracellular space). In this work, the Tofts model was used as the pharmacokinetic model, and the population-based arterial input function preset was based on gamma-variate approximations (26-29). Rate of change in K_trans, K_ep, and V_e after 2 cycles of NACT was calculated as follows: ΔK_trans%, ΔK_ep%, ΔV_e% = [(parameter value after 2 cycles of NACT minus parameter value of baseline map)/parameter value of baseline map] ×100%. The DWI images were post-processed using the Siemens workstation (body diffusion toolbox), and b=0 and 1,000 s/mm² were calculated to obtain apparent diffusion coefficient (ADC) (30). On the ADC map, an ROI with a size of 29–203 mm² was delineated on the largest layer of the solid component of the lesion displaying the lowest ADC-values, avoiding areas with obvious necrosis, cystic degeneration, and liquefaction. If the lesion showed complete response after 2 cycles of NACT, the ROI was delineated at the same level and location where the lesion was in pre-NACT images. All the above parameters were independently measured twice by two physicians respectively, and the average value was taken. ADC change rate after NACT2 cycle: ΔADC% = [(ADC value after 2 cycles of NACT minus baseline ADC value)/baseline ADC value] ×100%. Tumor size is the largest tumor diameter measured on early post-contrast images (120 s after contrast injection). Rate of change in tumor size ΔD_max% = [(maximum tumor diameter after 2 cycles of NACT minus maximum tumor diameter at baseline)/maximum tumor diameter at baseline] ×100%.

Histopathologic analysis

The status of ER, progesterone receptor (PR), HER2, and Ki67 index were determined by immunohistochemical examination (IHC) of breast cancer tissue collected from pre-NACT needle core biopsy. ER and PR are collectively referred to as hormone receptors (HR). According to the 2021 version of the Chinese Society of Clinical Oncology (CSCO) guidelines, HR positive status (i.e., ER or PR positive) is defined as nuclear immunostaining of ≥1% tumor cells. HR-negative status (i.e., ER and PR negative) is defined as nuclear immunostaining of <1% tumor cells. Positive HER2 expression was defined as HER2 membrane immunostaining score of 3+; if the membrane immunostaining score is 2+, in situ hybridization test is required to prove HER2 gene amplification. Definition of Ki67 positivity: ≥20% of tumor cell nuclei stained for Ki67. After 6–8 cycles of NACT, the surgically removed breast tissue and regional lymph nodes were fixed, then embedded in paraffin, and the specimens were cut into thin slices, stained with hematoxylin and eosin, and examined by a pathologist with several years of experience in breast tumor diagnosis. The residual situation of tumor cells was observed. According to the 2021 version of the CSCO guidelines (21), pCR is defined as no invasive carcinoma in the primary breast (ductal carcinoma in situ may be present) and regional lymph node negative, that is, the primary tumor is Miller-Payne (MP) grade 5 and lymph node negative, or residual tumor burden [residual cancer burden (RCB)] evaluation system grade 0.

Statistics

SPSS v25.0 and R software (4.0.0) were used for statistical analysis. The normality of distribution and homogeneity of variance of continuous variables were assessed by Shapiro-Wilk test and Levene variance test, respectively. Normally-distributed continuous variables were expressed as mean ± standard deviation (SD), and between-group differences were assessed using two independent samples t-test. Non-normally distributed continuous variables were expressed as median (upper and lower quartiles) and compared using the Mann-Whitney U test. Categorical variables were described as frequency (percentage) and the between-group differences were assessed using Pearson’s Chi-squared and continuous-corrected Chi-squared test. Variables associated with P values <0.10 in univariate analysis were included in the multivariate binary logistic regression analysis by stepwise method to establish the best combined prediction model. Taking the pathological pCR results as the gold standard, receiver operating characteristic (ROC) curve analysis was performed to evaluate the predictive value of univariate and combined model to predict pCR after NACT, and the area under the ROC curve (AUC) was calculated. The cutoff value was chosen according to the maximum Youden index. DeLong’s test or Bootstrap test was used to compare the differences between univariate and combined models. A nomogram model for predicting pCR was established based on a multivariate logistic regression model. Nomogram performance was assessed using AUC and calibration plots. A calibration plot is a graphical assessment of the predictive power by comparing the observed probabilities with nomogram-predicted probabilities. The ROC curve of the predictive model was plotted and the AUC was calculated to evaluate the predictive ability.

Results

Clinicopathological characteristics

A total of 74 female patients with stages II–III breast cancer were included. The mean age of patients was 49.7±10.2 years (range, 27–73 years). Data pertaining to all clinicopathological variables were collected before NACT. The pathological diagnosis was invasive ductal carcinoma in 70 cases (Figure 2), invasive lobular carcinoma in 3 cases, and metaplastic carcinoma in 1 case. Luminal A (5/74, 6.8%), Luminal B (38/74, 51.4%), HER2+ (21/74, 28.4%), Basal-like (10/74, 13.5%). HR-negative patients (16/25, 64.0%), HER2-positive patients (18/25, 72.0%) and Ki67-positive patients (24/25, 96.0%) in the pCR group were all significantly more than those in the non-pathologic complete response (npCR) group (P=0.006, P=0.002, P=0.043, respectively). There was no significant difference between pCR and npCR groups with respect to age or lesion morphology (Table 1).

Figure 2 Representative case study: a 50-year-old woman with npCR after NACT. (A-F) Lesion before neoadjuvant treatment; (G-L) lesion after 2 cycles of neoadjuvant treatment. (A,G) Transverse compression lipid T1WI sequence shows the maximum tumor diameter is decreased by more than 30%, which indicates a good treatment response. (B,H) ADC image shows value of 0.624×10⁻³vs. 0.632×10⁻³ mm²/s before and after 2 cycles of NACT. (C,I) K_trans pseudo-color image shows value of 0.319 vs. 0.305 min⁻¹ before and after 2 cycles of NACT. (D,J) Kep pseudo-color image shows value of 0.837 vs. 0.821 min⁻¹ before and after 2 cycles of NACT. (E,K) Ve pseudo-color image shows value of 0.370 vs. 0.251 before and after 2 cycles of NACT. ΔADC%, ΔK_trans% and ΔK_ep% after 2 cycles of NACT are significantly associated with npCR compared to the traditional method of measuring the changes in lesion size. (F,L) The average dynamic curve in the ROI with chi-square value of 0.031 vs. 0.021 before and after 2 cycles of NACT. npCR, non-pathologic complete response; NACT, neoadjuvant chemotherapy; T1WI, T1-weighted imaging; ADC, apparent diffusion coefficient; K_trans, transfer constant; K_ep, rate constant; V_e, relative extravascular extracellular space.

Comparison of DCE-MRI quantitative parameters and ADC values between pCR and npCR groups by univariate analysis

Before NACT, The K_trans value in the pCR group [0.29 (0.24, 0.32) min⁻¹] was significantly higher than that in the npCR group [0.24 (0.20, 0.29) min⁻¹ (P=0.033)]. The K_ep value in the pCR group [0.96 (0.85, 1.20) min⁻¹] was slightly higher than that in npCR group [0.83 (0.64, 1.04) min⁻¹]; however, the difference was not statistically significant (P=0.052). There were no significant differences between the pCR and npCR groups with respect to V_e or ADC values (P=0.172 and P=0.622, respectively).

After 2 cycles of NACT, significant difference of ΔK_trans%, ΔK_ep%, and ΔADC% were found in pCR group, compared to npCR group (P≤0.001). These findings suggested the potential predictive value of ΔK_trans%, ΔK_ep%, and ΔADC% for pCR. No significant difference of ΔD_max% and ΔV_e% was observed between the pCR and npCR groups (P>0.05) (Table 2).

Intra- and interclass correlation analysis of the DCE-MRI quantitative parameters and ADC

The intraclass and interclass correlation coefficients (CCs) were used to analyze the consistency of the results of two measurements by the same physician and the first measurement by the two physicians. The values of ICC range from 0 to 1: ≥0.75 indicates good consistency, 0.50≤ ICC <0.75 indicates general consistency, and <0.50 indicates poor consistency. The results showed that K_trans and V_e exhibited better consistency, compared with K_ep and ADC (Table 3).

Development of nomogram models

Clinicopathological variables and DCE-MRI quantitative parameters associated with P values <0.10 in the univariate analysis were included. After stepwise multivariate binary logistic regression analysis, the results showed that pre-NACT HER2, Ki67, and K_trans were independent predictors of pCR. The HER2-Ki67-K_trans based nomogram model 1 was established (Figure 3). Each predictive factor was awarded a score based on the upper scale line. The probability of pCR was shown when the total score was summed up from all the predictors. Its equation is ln(p/1−p) = −6.403 + 2.03 × HER2 + 2.536 × Ki67 + 8.965 × K_trans (HER2 positive =1, Ki67 positive =1, HER2 negative =0, Ki67 negative =0).

Figure 3 Establishment of HER2-Ki67-K_trans based nomogram model 1 for predicting pCR. HER2, human epidermal growth factor 2; K_trans, transfer constant; pCR, pathologic complete response.

Similarly, Ki67, ΔADC%, and ΔK_trans% were identified as independent predictors of pCR after 2 cycles of NACT. The Ki67-ΔADC%-ΔK_trans% based nomogram model 2 was established (Figure 4) and its equation is ln(p/1−p) = 2.433 × Ki67 + 2.562 × ΔADC% + −4.737 × ΔK_trans% (Ki67 positive =1, Ki67 negative =0).

Figure 4 Establishment of Ki67-ΔADC%-ΔK_trans% based nomogram model 2 for predicting pCR after 2 cycles of NACT. ADC, apparent diffusion coefficient; K_trans, transfer constant; pCR, pathologic complete response; NACT, neoadjuvant chemotherapy.

Performance of pCR prediction by single-parameter and nomogram model

Among all single-parameters obtained before NACT and after 2 cycles of NACT, ΔK_trans% had the highest AUC value (area under the receiver operating characteristic curve): 0.818 (cutoff −36.894), suggesting the highest predictive performance of ΔK_trans%. The diagnostic sensitivity, specificity, positive predictive value, negative predictive value, and accuracy of ΔK_trans% were 100.0%, 69.4%, 62.5%, 100.0%, and 79.7%, respectively (Tables 4,5 and Figures 5,6).

Figure 5 Representative case using nomogram models for predicting pCR: a 56-year-old woman with pCR after NACT. The pathology of breast puncture was invasive ductal carcinoma with HR−, HER2+, Ki67 45%. K_trans value was 0.450 vs. 0.181 min⁻¹, ADC 0.633×10⁻³vs. 1.132×10⁻³ mm²/s before and after 2 cycles of NACT. (A) Using nomogram model 1 for predicting pCR before NACT; (B) using nomogram model 2 for predicting pCR after 2 cycles of NACT. pCR, pathologic complete response; NACT, neoadjuvant chemotherapy; HR, hormone receptor; HER2, human epidermal growth factor 2; ADC, apparent diffusion coefficient; K_trans, transfer constant.

Figure 6 ROC curves of single parameter and nomogram models for predicting pCR. ROC, receiver operating characteristic; pCR, pathologic complete response; HER2, human epidermal growth factor 2; ADC, apparent diffusion coefficient; K_trans, transfer constant; AUC, area under the receiver operating characteristic curve.

The predictive performance of nomogram model 2 was significantly higher compared to the other single-parameter [AUC =0.900 (0.829, 0.970), P<0.001] (Table 5). The AUC value of nomogram model 2 was slightly higher than that of nomogram model 1 (0.900 and 0.833, respectively), but the difference was not statistically significant (P=0.174). nomogram model 1 was found to be the best model for predicting pCR before NACT, compared to K_trans and K_ep [AUC =0.833, 0.652, and 0.639, respectively) (Table 4). nomogram model 2 was the best model [AUC =0.900, P<0.05) for predicting pCR after 2 cycles of NACT, compared to other single-parameters (AUC values of ΔADC%, ΔK_trans%, ΔK_ep%, and ΔVe% were 0.809, 0.818, 0.740, and 0.590, respectively) (Table 5).

The calibration plots from both nomogram models showed a good fit of the calibration prediction curve with the ideal curve, suggesting a high predictive value of both models (Figures 7,8). In both nomogram models, the predicted pCR showed a good agreement with the observed pCR. Importantly, nomogram model 2 had a smaller mean absolute error of the agreement, compared with nomogram model 1 (0.017 vs. 0.051). This suggested that nomogram model 2 is a better tool to predict pCR with a better agreement with the observed pCR.

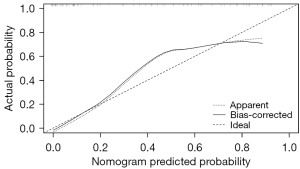

Figure 7 Calibration plot of predicted pCR by nomogram model 1 with actual pCR. pCR, pathologic complete response.

Figure 8 Calibration plot of predicted pCR by nomogram model 2 with actual pCR. pCR, pathologic complete response.

Discussion

The ability to accurately predict post-NACT pCR in patients with breast cancer can provide a distinct leverage during treatment decision-making and help improve patient prognosis. In this study, HR negative, HER2 positive, and Ki67 positive status were associated with pCR. Before NACT, higher K_trans value was associated with pCR; after 2 cycles of NACT, higher absolute values of ΔK_trans%, ΔK_ep%, and ΔADC% were associated with pCR. Notably, we developed two nomograms based on the clinicopathological features, quantitative DCE-MRI parameters, and ADC values, before NACT and after 2 cycles of NACT, respectively. Both HER2-Ki67-K_trans based nomogram model 1 (pre-NACT) and Ki67-ΔADC%-ΔK_trans% based nomogram model 2 (after 2 cycles of NACT) showed good predictive ability for pCR, which was better than that achieved with using quantitative DCE-MRI parameters alone.

pCR rate differs based on the clinicopathological status. In previous studies, high-grade tumor, HER2-positive, high Ki67, and ER negative status were associated with a higher likelihood of achieving pCR after NACT (8,31-33). Consistent with this, in our study, HR-negative, HER2-positive, and high Ki67 status before NACT showed a significant association with pCR after NACT.

However, in clinical practice, patients with the same tumor histological type and stage often show different treatment outcomes even if they receive the same NACT. Therefore, there is a need to include functional imaging combined with magnetic resonance imaging parameters to further improve the predictive performance. Quantitative DCE-MRI can help assess the exchange of contrast agent between blood vessels and intercellular spaces, and evaluate tissue perfusion and the integrity of the vascular endothelium within the tissue. Currently, the most commonly used pharmacokinetic model is the two-compartment model proposed by Tofts et al. (26) in 1991. The two compartments are the vascular space and the interstitial space [or extravascular extracellular space (EES)]. The model includes the following three parameters (27): (I) K_trans (transfer constant): refers to volume transfer constant of gadolinium from blood plasma to the EES, which is related to microangiogenesis and vascular permeability (28); (II) K_ep (rate constant): rate constant gadolinium reflux from the EES back into the vascular system; (III) V_e (extravascular extracellular volume): volume of the EES per unit volume of tissue (i.e., the amount of “space” available within the interstitium for accumulating gadolinium; it is a ratio: K_trans/K_ep), indicating the degree of cell necrosis and cellularization. The larger the extracellular space volume of the extracellular tissue, the lower the degree of cellularization or the greater the degree of cell necrosis. Among the pre-NACT quantitative DCE-MRI parameters in this study, higher K_trans value showed a significant association with pCR. Wu et al. (28) also reported a strong correlation between K_trans and tumor microvascular density (Pearson R²=0.451, P<0.05). Therefore, a higher K_trans value indicates greater tumor microvascular density and vascular permeability, which leads to an accumulation of the therapeutic drug in the lesion. This facilitates the disintegration and necrosis of tumor cells, thereby achieving pCR. However, the predictive performance of K_trans in our study was low [AUC =0.652) before NACT. There was no significant difference in K_ep and V_e values between pCR and npCR groups, which is consistent with the results of most studies (14,34).

After 2 cycles of NACT treatment, there was no significant difference between pCR and npCR groups with respect to ΔD_max% (P>0.05), which indicated no changes in tumor size after 2 cycles of NACT. Notably, higher absolute values of ΔK_trans% and ΔK_ep% after 2 cycles of NACT were significantly associated with pCR (P<0.001). This suggested that quantitative ΔK_trans% and ΔK_ep% after 2 cycles of NACT can more readily reflect the pathophysiological changes occurring at an earlier stage than morphological changes, and can be used as early predictors of pCR. ΔVe% was not found to predict pCR, which may be related to the disintegration and necrosis of tumor cells and the formation of local fibrous tissue in the extracellular space after NACT (35).

DWI reflects the cell density and tissue microstructure based on the diffusion of water in tissue. The ADC value increases with decrease in the tumor cell density during NACT. In our study, absolute ΔADC% value after 2 cycles of NACT in the pCR group was significantly higher than that in the npCR group. Similar results have been reported previously (36). The pre-treatment ADC value was not found to predict pCR, which is also consistent with previous studies (19,20).

According to the univariate analysis and stepwise multivariate binary logistic regression analysis, the independent predictors before NACT were HER2, Ki67, and K_trans, and those after 2 cycles of NACT were Ki67, ΔADC%, and ΔK_trans%. Two nomograms were developed based on different predictors obtained before and after 2 cycles of NACT. Both nomograms showed good predictive discrimination [AUC =0.833 and 0.900, before and after 2 cycles of NACT nomograms, respectively) and calibration ability (mean absolute error of the agreement =0.051 and 0.017, before and after 2 cycles of NACT nomograms, respectively). This indicated a better predictive ability of nomogram after 2 cycles of NACT. This study combined the clinicopathological characteristics and MR quantitative parameters to improve the prediction efficacy compared with the univariate analysis. It also further verified that the clinical-imaging-pathological multidisciplinary participation is needed to evaluate the efficacy of NACT in breast cancer patients.

Nevertheless, some limitations of our study should be acknowledged. First, the impact of different molecular subtypes of breast cancer, different quadrant, density, or depth of breast on the predictive efficacy for post-NACT pCR could not be analyzed due to the limited sample size. Second, this study was based on a single-center cohort, and the nomogram was not validated in an external cohort. Third, whether the earlier time point (e.g., after 1 cycle of NACT) could predict pCR worth our further investigation. Finally, this study selected the solid component of the largest level of the tumor to manually delineate the ROI, which may have introduced an element of selection bias. Since the overall lesion was not measured, it may not be representative of the overall tumor. Further multi-center studies with larger patient cohorts are required to verify the pCR prediction performance of nomogram model based on the full-volume VOI of the lesion.

Conclusions

Nomograms based on HER2, Ki67, and K_trans and Ki67 pre-NACT, ΔK_trans%, and ΔADC% after 2 cycles of NACT can help predict pCR in breast cancer and inform individualized treatment decision-making.

Acknowledgments

We thank Medjaden Inc. for scientific editing of this manuscript.

Funding: This work was supported by the China International Medical Foundation (No. Z-2014-07-1912-23, to M He), and the Natural Science Foundation of Fujian Province, China (No. 2020J011057, to M He).

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-22-869/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-22-869/coif). M He reports that this work was supported by the China International Medical Foundation (No. Z-2014-07-1912-23), and the Natural Science Foundation of Fujian Province, China (No. 2020J011057). The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of Fujian Provincial Hospital (No. K2021-05-007, May 2019). Informed consent was obtained from all subjects involved in the study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
