Automated segmentation of the human supraclavicular fat depot via deep neural network in water-fat separated magnetic resonance images

Introduction

In 1902, Japanese biologist Hatai first observed interscapular and supraclavicular brown adipose tissue (BAT) in human fetuses (1). It was long believed that most of the mitochondria, which drive thermogenesis in brown adipocytes, disappear after reaching adulthood and that the BAT would become functionally and morphologically similar to white adipose tissue (WAT). However, many recent studies discovered the presence of active BAT in a significant portion of healthy adults using ¹⁸F-fluorodeoxyglucose positron emission tomography (¹⁸F-FDG PET) (2,3). In addition to its thermo-regulatory role, postprandial BAT activation triggers glucose uptake and triglyceride clearance (4,5), and thus can improve insulin resistance. Furthermore, postprandial BAT activation was found to induce satiation (6). BAT activation is thus considered as a potential therapeutic target for the treatment of obesity (7). Some works reckon that BAT activation may even have more benefits, such as having a role in bone health and density (8). A steadily growing community of researchers aim at examining BAT presence and activity with various imaging modalities including PET, ultrasound (US), and magnetic resonance imaging (MRI) (9). Facing the large amount of current and future study data, we not only need an easy, robust, and reproducible way to automatically extract the BAT-containing region within the supraclavicular fossa, but also a method to quantify BAT accurately in order to enable the evaluation of possible associations between BAT and clinical parameters.

While BAT in rodents is linked with a specific anatomical region, namely the interscapular region, BAT studies in human adults have revealed a more heterogeneous tissue composition comprising both BAT, and WAT in different perivascular regions (10), and under constant influence by seasonal and hormonal changes (11). Many studies had already been conducted exploiting magnetic resonance (MR) contrast mechanisms to characterize BAT presence and to detect BAT activation, both in rodents and humans (9). Chemical-shift based water-fat imaging techniques acquire gradient echoes at different echo times (TEs) to resolve the water-fat separation, rendering a proton density fat fraction (PDFF) map. Due to the clinical availability of this technique, it has become a popular tool in the research of BAT with MRI.

There is controversy about the correlation between the MRI-based fat fraction in a given region of interest (ROI) scanned during rest and the BAT presence measured with PET during BAT activation (12-15). Yet, some MR-only studies revealed significant relative change of PDFF during BAT activation paradigms in comparison to baseline PDFF measurements (16-19). The BAT ROI selection was guided by simultaneously or previously acquired PET images revealing voxels with glycolysis (20,21).

In case of MR-only studies, however, diverse segmentation rules have been followed: In one study (18), a small ROI around the dorsal scapular artery was drawn, another study (19) defined a fat depot restricted by the trapezius, the sternocleidomastoid muscle, and the clavicle. In two studies (16,17), a larger ROI was chosen and divided into PDFF intervals for further analysis. Thus, the comparability between different pure MR studies is hampered by different segmentation rules. Automatic segmentation following consistent rules would circumvent a potential bias from different segmentation rules.

So far, fully automated segmentation algorithms of BAT have been only reported in rodents (22,23). In human anatomy, only a semi-automatic multi-atlas segmentation (MAS) has been proposed (24). However, the lateral borders of the segmentation mask did not follow any anatomical structure but were defined by a geometric cylinder. MAS conducts segmentation through registering a set of atlases to the target image. The corresponding labels of those atlases are then directly transferred from the atlas space to the target space using the same obtained parameters, and further integrated as the final segmentation, which is time-consuming and requires high computational costs (25). In addition to a lack of a consistent anatomical border definition for BAT studies, there is also a lack of consensus on the optimal PDFF threshold used for defining potential BAT regions. While it has been shown that PDFF in infants of the supraclavicular fossa can be as low as 17% (26), MR studies in adults have been using the threshold of PDFF as 30% (16-19) or 50% (14,27,28) to exclude adjacent voxels originating from muscles or vessels after manual annotation. Being directly adjacent to bones like the scapula and the clavicle, the bone signal can be easily misinterpreted as BAT, as bone marrow exhibits similar values on the PDFF maps.

Deep learning methods, as one of the most advanced machine learning approaches, have the advantage of being able to learn salient feature representations automatically and efficiently from the data. They avoid the effort of feature-engineering in conventional machine learning methods to design useful hand-crafted features and therefore make the learning process data-driven (29). For image segmentation, convolutional neural networks (CNNs) have achieved significant success in segmenting previously unseen images (30,31). Fully convolutional networks (FCNs) (32) were developed to perform semantic segmentation using a convolution and deconvolution architecture. The U-Net (33), equipped with skip-connections was one such architecture proposed for medical image segmentation. Already widely utilized in medical image analysis, U-Net-like models recently still show state-of-the-art performance in medical image analysis (34-36).

In this work, we leverage the deep CNN architecture for the automated segmentation of the supraclavicular fat depot for the purpose of human BAT analysis based on chemical-shift based water-fat MR images. To efficiently encode the multi-modal information and 3D context information from MRI scans and mimic the workflow of physicians for characterizing BAT, we jointly leveraged two-dimensional (2D) and three-dimensional (3D) CNN architecture to build the network (termed as BAT-Net). Our developed deep-learning-based BAT-Net can provide consistent quantitative evaluation among subjects and therefore support further investigations. Experiment results demonstrated that the BAT-Net outperformed widely-utilized 2D U-Net-like networks (33) and 3D U-Net-like networks (37). Our code is available for download at: https://github.com/BMRRgroup/BATNet.

Methods

Data

MRI data

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Study protocols and procedures were approved by the Ethics Committee of the Faculty of Medicine of the Technical University of Munich, Germany (Number 165/16 S). Informed consent was given by all individual participants. A total of 50 healthy subjects (demographics information in Table 1) underwent MR scans of the neck region on a 3T Ingenia scanner (Philips Healthcare, Best, Netherlands) [a subcohort from the following study (38)]. No intervention for BAT activation was performed. A combination of a head and neck coil, anterior and posterior coil arrays inside the scanner table was used. A 3D multi-echo gradient echo sequence with bipolar readouts was used in free breathing with following sequence parameters: 6 echoes, repetition time (TR) =12 ms, TE =1.24 ms, ΔTE =1 ms, flip angle =5°, bandwidth =1,413 Hz/pixel, 268×200×93 acquisition matrix size, field of view (FOV) =400×300×140 mm³ sensitivity encoding (SENSE) with R=2.5 in antero-posterior (AP) direction and scan time of 4 min 16 s. The reconstruction matrix size was (initially 288×216×93, before zero-filling 72 lines in AP direction), with voxel size 1.389×1.389×1.5 mm³. The acquired multi-echo gradient echo imaging data were processed online on the scanner using the fat quantification routine of the MR vendor. The technique first performs a phase error correction and then a complex-based water-fat decomposition using a pre-calibrated seven-peak fat spectrum and a single T2* to model the T2* decay of the signal with TE. The PDFF map was computed as the ratio of the fat signal over the sum of fat and water signals. The magnitude discrimination approach was used to reduce noise bias in areas with low signal-to-noise ratio (SNR), which results in PDFF values above 100% and below 0% (39). In addition, water and fat images were reconstructed. These four image modalities made up four separate channel inputs in the deep learning model (40).

Manual segmentation of the human supraclavicular fat depot was done based on fat contrast images following coherent anatomical rules. The initial raw manual segmentation included adjacent muscle tissue, vessels, and slightly signal from cortical bone. In a successive pre-processing step, pixels with PDFF values lower than a threshold are removed to exclude muscle and vessel signal. Pixels with T2* lower than a certain threshold are removed to exclude bone signal (details in section “Pre-processing”).

Manual annotation rules

For the training of our network, ground truth labels were generated based on coherent segmentation rules for depicting the cervical, supraclavicular, and axillary fat depot. As these three are connected, and especially the border between axillary and supraclavicular fat depot is molten, we refer to it as supraclavicular fat depot. In our work, radiological scientists with 4 to 8 years of experience in working with MR body imaging, together with a board-certified radiologist, defined anatomical landmarks for the segmentation in order to obtain reproducible anatomical borders to define the supraclavicular fossa with potential BAT presence. The segmentation rules were derived both from previously published segmentation rules in MR studies (16-19), as well as published PET images (20,21), that reveal anatomical areas with the highest likelihood of BAT glycolysis. Perivascular fat signal in all acquired axial slices was included, starting from the chin until 30 cm below. Subcutaneous fat tissue and all bones were excluded. The tissue of interest was further narrowed down by excluding interscapular fat and paravertebral fat, leaving us with cervical (= within the neck), supraclavicular (= above the clavicle) and axillary fat pockets, as illustrated in Figure 1 of (41). These fat depots follow the carotid artery, the subclavian artery as well as the axillary artery, respectively.

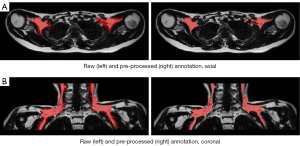

Figure 1 Comparison between raw manual annotation and processed labels. (A) Axial; (B) coronal. The supraclavicular fat depots are shown in red. As shown, most non-fatty tissues are removed from the supraclavicular fat depot mask after label pre-processing.

Following lateral exclusion criteria were defined based on the coronal view (Figure S1):

• Fat, laterally located of the touch point of the supraspinatus muscle with the trapezius, was excluded;
• Fat, laterally located from the coracoid process, or the collum scapulae, was excluded.

Following medial exclusion criteria were defined based on the axial view (Figure S1):

• Fat, medially located from the scalene muscles (superior parts of the scanned region) or the serratus anterior muscle (inferior parts of the scanned region), was excluded.

Following dorsal exclusion criteria were defined:

• Fat, dorsally located from the levator scapulae muscle, was excluded. This was for excluding the fat pocket surrounding the dorsal scapular artery.

An example of annotation applying these rules is shown in Figure S1.

Deep learning model

Overview

To take advantage of 3D information and to prevent over-fitting, we proposed a hybrid 2D and 3D approach for segmentation of supraclavicular fat depot for quantitative evaluation of BAT (termed as BAT-Net). The overview of the framework is illustrated in Figure 2, which presents the structure of the segmentation network and briefly describes the function of each component. The main pipeline consists of a preliminary segmentation stage and a fine-tuning segmentation stage. In the preliminary segmentation stage, we developed three combining 2D U-Net-like CNNs to mimic the workflow of physicians, who are used to review images slice-by-slice in axial, coronal, and sagittal planes to delineate areas with potential BAT. The three combining 2D CNN networks were designed for encoding the context information from the axial, coronal, and sagittal dimensions, respectively. Considering there exists four different MRI modalities, i.e., water, fat, PDFF and T₂* (detailed information can be found in section “Data”), we inputted MRI slices of each modality as four channels to leverage the multi-modality information. In the fine-tuning segmentation stage, a shallow 3D CNN network was developed to synthesize predictions of three-combining 2D networks and the original four-modality MRI scans to predict the final segmentation result.

Figure 2 An overview of the whole network. It consists of three combining 2D U-Net-like networks and a 3D fusion network to mimic the workflow of physicians for characterizing BAT regions and to efficiently encode the multi-modal information and extract the 3D context information from multi-modal MRI scans for the segmentation of the BAT. The three combining 2D networks leverage multi-modal information and comprehensive 2D context information in axial, coronal, and sagittal planes to conduct the preliminary segmentation and the 3D fusion network combines multi-modal information, 3D context information and preliminary segmentation results for obtaining a fine-tuning segmentation. 2D, two-dimensional; 3D, three-dimensional; BAT, brown adipose tissue; MRI, magnetic resonance imaging.

The details of the proposed methods are described in the following sections respectively. The U-Net-like 2D segmentation is presented in section “Three-combining 2D segmentation network”. The 3D fusion network is presented in section “3D fusion network”. Finally, the loss function of the BAT-Net is described in section “Loss function”.

Three-combining 2D segmentation network

Widely regarded as an elegant FCN architecture for image segmentation, U-Net-like architectures have been used in a great amount of biomedical segmentation applications (33,42-44). In this study, we used three combining 2D U-Nets to extract informative latent features in water/fat-contrast MRI, as well as quantitative PDFF and T₂* maps using axial, coronal, and sagittal planes simultaneously.

The detailed architecture of the U-Net is illustrated in Figure S2. It consists of convolutional layers, max pooling operation, batch normalization (45), transposed convolution, concatenation operation and activation functions organized as a down-sampling path including three repeated encoder stacks and an up-sampling path including three repeated decoder stacks. In each decoder-encoder pair of the U-Net architecture, feature maps in the encoder part are cropped and concatenated to the corresponding feature maps in the decoder part via the skip-connection (concatenation) operation, which allows U-Net to better utilize the features with higher spatial resolution from shallow layers of the encoder part directly to the layers of the decoder part for segmentation. With this setting, U-Net is able to effectively and efficiently capture local information and high-level global information to achieve high accuracy in segmentation tasks.

In this work, the developed U-Net has four down-sampling and up-sampling processes. Each encoder stack consists of two 3×3 convolutions together with a rectified linear unit (ReLU) activation function and a batch normalization after each convolution and a 2×2 max pooling operation with stride of 2 for down-sampling at the end of the encoder. Each decoder stack consists of a transposed convolution with kernel size 2×2 and a stride of 2 for up-sampling, a concatenation operation to fuse feature maps from the encoder stack into the corresponding decoder stack, and two 3×3 convolutions followed by a ReLU and a batch normalization. At the end of the U-Net, a 1×1 convolution with sigmoid activation is applied to map learnt features to the segmentation probability map.

3D fusion network

After the three-combining 2D U-Net, we obtained three segmentation results with utilizing comprehensive 2D context information in the axial, coronal, and sagittal planes, respectively. The 3D fusion network is proposed to merge these predictions and original multi-modal MRI scans for conducting the fine-tuning segmentation. As shown in the Figure 3, the 3D fusion network is a 3D FCN (32). Considering that the preliminary segmentation results can be used to provide references during the fine-tuning segmentation stage with 3D fusion network, and to reduce computing load, the 3D fusion network is designed to be a shallow FCN, which is easier to converge. The 3D fusion network, leveraging 3D context information for obtaining a fine-tuning segmentation, consists of four 3D convolution modules and a final 3D 1×1×1 convolution layer with a softmax activation function to map 3D feature maps to the final segmentation prediction. Each 3D convolution module has a 3×3×3 convolution layer with batch normalization and leaky ReLU activation function (46).

Figure 3 The detailed architecture of the 3D fusion network. The 3D fusion network is a shallow 3D neural network designed to synthesize multi-modal MRI scans and preliminary segmentation results obtained from three combining 2D networks for obtaining a fine-tuning segmentation by leveraging 3D context information. The 3D fusion network consists of four 3D convolution modules and a final 3D 1×1×1 convolution layer with a softmax activation function to map 3D features to the final segmentation prediction. Each 3D convolution module has a 3×3×3 convolution layer with the batch normalization and leaky ReLU activation function. 2D, two-dimensional; 3D, three-dimensional; ReLU, rectified linear unit; MRI, magnetic resonance imaging.

Loss function

In medical image segmentation, one of the challenges is class imbalance between the foreground and the background in the dataset. In this work, the supraclavicular fossa occupies a relatively small part of the MRI scans. Therefore, in this work, we leverage the Dice loss as the loss function, which was initially proposed in (47) and then has been proven to be well adaptable to the data imbalance tasks (48-50). To address possible class imbalance problems, we also considered loss functions such as the generalized dice loss (50), the focal loss (51), the Tversky loss (52) and their combinations. However, as we did not find any obvious improvement of segmentation performance on our data (Table S1), we kept it simple with the standard dice loss. To be specific, let P(x_i) denote the prediction probability of a voxel x_i and G(x_i) be the corresponding ground truth at the same voxel. The dice loss can be defined as:

LD(X)=−2∑xi∈XP(xi)G(xi)+ε∑xi∈XP(xi)+∑xi∈XG(xi)+ε[1]

where X represents the training images, ε denotes a small term to prevent any division by 0 issues.

Pre-processing

MRI scans including PDFF, T₂* maps and the corresponding manual annotations were pre-processed before being fed into neural networks. The pre-processing pipelines are illustrated in Figure 4. Figures 1,5 illustrate the comparison of images and manual labels before and after pre-processing.

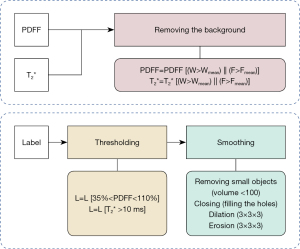

Figure 4 The illustration of the pre-processing pipelines for MRI scans (PDFF, T₂*) and manual annotation labels. PDFF, proton density fat fraction; F, fat; W, water; L, label; MRI, magnetic resonance imaging.

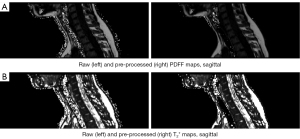

Figure 5 Comparison between raw MR images and pre-processed images of the (A) PDFF and (B) T2* modalities. As shown, noise in the background region is dramatically reduced. PDFF, proton density fat fraction; MR, magnetic resonance.

Image pre-processing (PDFF map, T₂* map)

The background was removed in both PDFF maps and T₂* maps by applying a foreground mask. This foreground mask was obtained slice-wise by calculating the mean value of the water and the fat image respectively and thresholding below the mean value. These two separate masks were combined by the logical or operator. Thus, voxels with water signal under the mean threshold and mean fat signal per slice were regarded as background.

Label pre-processing

During the manual segmentation procedure of the entire supraclavicular fossa, it would be dramatically time-consuming to annotate each voxel in the 3D volume belonging to the supraclavicular fossa. Therefore, the annotator was allowed to draw rough pre-annotations including adjacent muscle tissue and vessels. Subsequently, a set of well-designed pre-processing rules were applied to process the obtained rough raw manual pre-annotations into finely adjusted segmentation, which are then regarded as the ground truth.

Specifically, after the supraclavicular fossa regions have been delineated roughly using ITK-SNAP (version 3.8.0), the irrelevant surrounding non-fatty tissues were then removed. As shown in Figure 4, the detailed pre-processing includes following two steps: in the first step, voxel-wise masks are applied referring to PDFF maps (annotation regions satisfy PDFF >35% and PDFF <110%) and T₂* maps (annotation regions satisfy T₂* >10 ms). The PDFF threshold of 35% was chosen based on literature values (14,16-19,27,28) combined with empiric experience with our data. As bone exhibits much lower T₂* values than fat, the additional T₂* maps can help to distinguish fat from bone signal. The T2* threshold was thus chosen based on literature reports on T₂* values of cortical bone, being consistently shorter than 10 ms (53-55). After that, in the second step, smoothing operations including removal of small disconnected regions (voxel volume <100), filling of holes, dilation (3×3×3 filter) and an erosion (3×3×3 filter) step were performed.

Evaluation

Dice similarity coefficient (DSC) (56) is a popular evaluation criteria applied in many segmentation tasks and therefore is adopted in this work, which is defined as:

DSC=2×|X∩Y||X|+|Y|=2×TP2×TP+FP+FN[2]

where |X| and |Y| in our case denote the segmentation prediction of the proposed BAT-Net and the ground truth label (pre-processed manual segmentation annotation), respectively. Since the label data are Boolean, it can also be written as the formulation on the right-hand side, where TP, FP, and FN represent true positive, false positive, and false negative. All experiment results in this paper are evaluated by DSC.

Aside from DSC, precision score and recall score are also applied to obtain an extended evaluation with focus on FP and FN, respectively. The precision and recall are defined as:

Precision=|X∩Y||X|=TPTP+FP[3]

Recall=|X∩Y||Y|=TPTP+FN[4]

In addition, to evaluate the quantitative agreement of segmentations with the ground truth, Bland-Altman plots (57) were applied on the volume (mL) and the mean PDFF (%) of the predictions of the proposed BAT-Net and the ground-truth labels. For a more accurate quantitative evaluation, thresholding steps in section “Label pre-processing” were applied here again to exclude the voxels that were added by smoothing operations.

Experimental setup

Experiments were conducted on a server with the Linux operating system (Ubuntu 16.04), which was equipped with Intel Core i7-6700 CPU, 32 GB RAM, an NVIDIA Quadro GPU (24 GB RAM) and an NVIDIA Titan-Xp GPU (12 GB RAM).

The dataset was randomly divided into a developing set (80%) and a test set (20%, 10 subjects). When dividing the data, the BMI was considered such that both the developing set and the test set has included subjects with all ranges of BMIs and the mean BMIs for developing and test sets are very close, 24.4 and 24.1 kg/m², respectively. The developing set was further randomly split into training set and a validation set in a ratio of 4:1 to develop and train the proposed BAT-Net. The proposed model was implemented with Python and the Keras library (58). Adam optimizer (59) was utilized for training the network with an initial learning rate (lr) =5×10⁻⁴. Due to the large scale of the 3D fusion parameters, the batch size of 3D fusion net was 16, while that of 2D U-nets was 128. To avoid over-fitting (60) and save training times, we applied an early stopping strategy during the training phase, which means the training process will be stopped if the validation loss does not decrease after certain epochs. The patience of early-stopping was 20 for all the networks. In addition, rather than saving the model in the last epoch, we automatically saved the model which performed best on the validation set.

We conducted comparison experiments between our proposed BAT-Net and 2D U-Net/3D U-Net on the same training, validation, and test sets. The 3D U-Net used in this experiment has three down-sampling and up-sampling blocks. The encoder and decoder stacks have very similar structure as in a 2D U-Net, with 3D convolutional kernels of size 3×3×3. The comparison with 2D U-Net was implemented in three different slicing planes, denoted as 2D U-Net (axial), 2D U-Net (coronal), and 2D U-Net (sagittal).

Training based on raw annotation labels vs. pre-processed labels

At the beginning, we compared two different supervision strategies [using the baseline network architecture 2D U-Net (axial)]: (I) using the raw annotation before pre-processing as ground truth to let the network learn the original human-defined annotations and then using the pre-processing steps as described in section “Label pre-processing” as a post-processing step to refine the segmentation prediction and obtain the final segmentation. (II) Using the fine-tuned labels after pre-processing as in section “Label pre-processing” to enable the network to directly learn the processed labels.

Inter-rater evaluation

We evaluated the annotation difference between different raters (after pre-processing), 12 randomly selected subjects from the dataset were independently annotated by an additional rater and the inter-rater consistency was evaluated by DSC and Bland-Altman plots (57) on the volume (mL) and mean PDFF (%) of the annotation of two raters (after label processing).

Results

The experimental results are given in Table 2. The proposed BAT-Net achieved an average DSC of 0.878. The performance on DSC ranged from 0.853 to 0.920 with a standard deviation of 0.020. In general, the joint 2D-3D BAT-Net outperformed both the 2D and the 3D U-Net. We also conducted a 5-fold cross validation on all the proposed networks and performance of BAT-Net in the cross-validation was also superior to other compared methods (Table S2). In addition, we compared the proposed BAT-Net to other methods in terms of trainable parameters and operation times. The results of this comparison are presented in Table S3.

Raw annotation vs. fine-tuned annotation

As mentioned in section “Training based on raw annotation labels vs. pre-processed labels”, we did an experiment on comparing training with raw annotation and with fine-tuned annotation on 2D U-Net. The result of this experiment is illustrated in Table 3. The performance of the first strategy is denoted as ‘raw annotation’ with unprocessed raw labels and the second strategy is denoted as ‘fine-tuned annotation’ with processed labels after the steps in section “Label pre-processing”. We found that the second training supervision strategy outperformed the first one with an average DSC of 0.860 compared to 0.805. Accordingly, we applied the ‘fine-tuned annotation’ strategy to all the segmentation models in the succeeding experiments.

BAT-Net vs. 2D U-Net

Among all three 2D U-Nets, the network with inputs in axial plane and that in coronal plane performed better than that in sagittal plane, with average dice score of 0.860, 0.862 and 0.855, respectively. As expected, the BAT-Net outperformed all individual 2D U-Nets with average dice score 0.878 (Table 2), which highlights the advantage of using a 3D fusion module to encode 3D context information in case of our BAT-Net design. Comparing the result predictions of BAT-Net with other networks, we found the BAT-Net makes fewer FPs than 2D U-Net (axial) and 2D U-Net (sagittal) and fewer FNs than 2D U-Net (coronal). An increase of both the precision score and the recall score was also consistent with these results.

BAT-Net vs. 3D U-Net

Comparing the BAT-Net with 3D U-Net, we found a performance enhancement of 0.017 in average DSC (Table 2). In Figure 6, we compared the segmentation predictions of the BAT-Net and 3D U-Net with the ground truth annotation labels. It can be seen that the 3D U-Net makes more FP predictions (over segmentation problem), and thus, has a lower precision score. The FP predictions around the neck regions also indicate the limitation of the location recognition of the 3D U-Net. Similar results were found in the predictions of the subject with higher volume of supraclavicular fat depots, as shown in Figure S3.

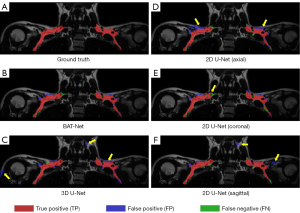

Figure 6 Comparison between (A) ground truth, predictions of (D-F) 2D U-Nets, (C) 3D U-Net, and (B) the BAT-Net. The yellow arrows mark the main difference compared to the proposed BAT-Net. BAT, brown adipose tissue; 3D, three-dimensional; 2D, two-dimensional.

PDFF and volume extraction

The Bland-Altman plots of the volume and mean PDFF of two raters are shown in Figure 7. The two raters annotated segmentations of similar volumes with a mean/minimum/maximum volume of 189/95.9/443 mL in case of rater 1 and 193/96.9/446 mL in case of rater 2. The mean absolute difference between rater 1 and rater 2 was −4.68 mL with minimum/maximum absolute differences of −3.24/8.88 mL except for one outlier. This outlier had a difference of −68.9 mL and was due to falsely annotated regions in an obese subject, such as subcutaneous fat by one of the raters.

Figure 7 Bland-Altman plots for comparison between annotations of two raters after label processing on (A) volume and (B) mean PDFF of the segmentation. Both volume and mean PDFF are in good agreement between different raters except for one striking outlier in the volume comparison. SD, standard deviation; PDFF, proton density fat fraction.

The resulting mean PDFF values in the segmented regions had a mean/minimum/maximum of 65.9/59.5/78.8% for rater 1 and 66.0/59.5/79.0% for rater 2. Mean PDFF values only varied by small amounts between raters 1 and 2 with the minimum/maximum absolute differences of −0.425/0.038% and a mean of −0.103%. Thus, except for the volume extraction in case of one outlier, both annotators’ segmentations were in good agreement with each other regarding segmented volume and mean PDFF inside the segmented regions. The inter-rater consistency evaluated with the average DSC was 0.966.

As shown in Figure 8, the volumes predicted by the network in the test set had a mean/minimum/maximum of 305/151/624 mL and the volumes of the manually segmented ground truth labels had a mean/minimum/maximum of 314/160/627 mL. In terms of absolute differences, there was a trend for smaller volumes predicted by the network with a mean difference between the outcome of the network and the ground truth labels of −9.20 mL and minimum/maximum volume differences of −19.8/6.96 mL.

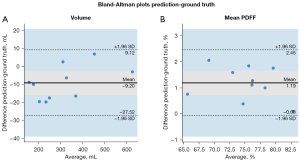

Figure 8 Bland-Altman plots for comparison between ground truth and predictions of the proposed BAT-Net on (A) volume and (B) mean PDFF of the segmentation. The volume segmented by the network is smaller on average compared to the ground truth labels while mean PDFF is increased. SD, standard deviation; PDFF, proton density fat fraction; BAT, brown adipose tissue.

Mean PDFF values inside the areas predicted by the network had mean/minimum/maximum values of 75.7/66.0/82.7% while the ground truth mean/minimum/maximum PDFF values were 74.5/65.2/82.8%. There was also a trend for differences in PDFF. The mean PDFF of the network predicted regions was elevated with respect to the manually annotated ground truth segmentations in every subject in the test set. The mean absolute difference was 1.19% and minimum/maximum absolute differences were 0.098/2.06%. Therefore, there was a slight bias towards smaller volumes and higher mean PDFF values predicted by the network compared to the ground truth labels.

Discussion

In this paper, a joint 2D-3D CNN architecture, i.e., BAT-Net, was developed for the automatic segmentation of the supraclavicular fossa to quantify BAT volume and PDFF. The design of the proposed BAT-Net followed the principle of leveraging multi-modal information, encoding both global and local 3D context information with—in comparison to full 3D U-Net—relatively low computing resource and GPU memory consumption.

As shown in section “Raw annotation vs. fine-tuned annotation”, we observed a performance enhancement when using fine-tuned annotations, compared to raw annotation. This suggests that the proposed processing pipeline solves the problem of inconsistency of segmentation border among subjects in case of the raw annotation, which confuses the deep learning networks. Therefore, training based on pre-processed, ‘fine-tuned’ labels results in a better performance.

In the BAT segmentation task, the 3D location and context information are essential for recognizing the supraclavicular fat region. Conventional 2D convolutional segmentation network conducts slice-wise segmentation, which cannot learn the correlation and context information among slices. Besides, a performance gap was observed among 2D U-Nets with inputs in different slicing directions, which may suggest axial and coronal planes, compared with sagittal plane, provide a better view for a 2D U-Net to encode context information to segment supraclavicular fat depots.

Pure 3D convolutional segmentation networks with 3D kernels have the ability to directly encode 3D context information within the MRI scans, but these networks face the challenge of having significantly more parameters to be optimized and require more GPU memory during the training stage (61). In this study, the performance of 3D U-Net is even lower than one of the 2D U-Nets, which may be caused by following reasons: (I) the 3D U-Net has much more trainable parameters than the 2D U-Net, making it hard to converge to the optimal point with relatively limited medical training data; (II) 3D U-Nets need more GPU memory and a relatively small batch size was used during training (batch size =16), which may have caused the instability in the training (62); (III) the training samples were relatively scarce in the 3D settings, where each MRI volume is regarded as a sample instead of a slice in the 2D settings. All above-mentioned factors are prone to lead to over-fitting. In comparison, the proposed BAT-Net employs a shallow 3D fusion net to synthesize information and use three prediction maps of 2D U-Nets as references to obtain the fine-tuned segmentation, which faces a smaller risk for over-fitting.

A consistent result from the quantification method is essential in BAT analysis, especially when comparing inter-individual differences, or when observing intra-individual changes during activation studies. To achieve this requested quantification precision, reproducible labels are necessary. In this paper, the reproducibility of volume and mean PDFF extraction from a BAT segmentation task was evaluated for the first time. This was done by an inter-rater evaluation as well as comparing the network-predicted labels with a set of ground truth labels, with a high DSC of 0.966 in case of the inter-rater consistency. Nevertheless, one of the twelve subjects had clearly flawed annotations by one rater evident by a 68.9 mL difference at a total segmented volume of 331 mL, accounting for a difference of 20.8%. While the faulty annotation was not used to train the network, it reveals the possibility of flawed segmentations. However, the mean PDFF of the segmented region seems to be not influenced by annotation errors as the inter-rater difference in mean PDFF was negligible. It needs to be mentioned that manual segmentation in obese subjects, who exhibit an above-average amount of fat in the supraclavicular fossa, is challenging, as different fat depots are morphologically connected in the MRI images, and thus visually more difficult to be separated.

When comparing the ground truth labels to the network-predicted labels with respect to volume and mean PDFF, a small bias is observable in both cases. While the volume segmented by the network is smaller by an average of 9.20 mL in the test set, the mean PDFF is higher in each subject and is elevated by 1.19% on average. A possible explanation for the observed differences is that the network predicted masks included fewer voxels at the edges of the fat depots, where partial volume effects comprising muscle may occur. As these voxels affected by partial volume effect exhibit smaller PDFF values, mean overall mean PDFF decreases. However, no large deviations with regards to volume or mean PDFF are apparent in the test set. Therefore, the labels predicted by the network are in good agreement with the ground truth labels.

One limitation of this study is that we trained our model on 50 healthy volunteers including a limited number of obese subjects. The trained result may not be applicable to other cohorts, for instance with primarily obese subjects, or children. Furthermore, only data from one center were used. Training the model on datasets of multiple different centers may allow the network to learn domain-invariant features among centers and enhance its generalization ability. And, due to the data-driven nature of deep learning, collecting more training data would further improve the performance of the BAT-Net. Therefore, one future step is to collect more data and evaluate the BAT-Net in different medical centers.

Another limitation is that we did not benchmark all possible segmentation network architectures. To prove the concept and to match the expectation of clinical community, where simple and robust methods are more favorable for the potential of clinical translation, we only used the widely proven and robust U-Net-like convolutional network to build the supraclavicular fossa segmentation model.

It remains to be emphasized that the segmented anatomy of the supraclavicular fossa (including the cervical and axillary fat pockets) was chosen based on previous publications revealing active BAT. While the terms BAT, WAT, and beige adipose tissue refer to the cellular lineage and cellular function, the term ‘perivascular fat’ refers to an anatomical location surrounding vessels. In our study, we limited the segmented anatomy to the cervical, supraclavicular, and axillary fossa, where BAT, WAT, and beige adipocytes are present at the same time. It is not possible with MR yet, which has an image resolution of about 1 mm³, to morphologically differentiate between cells that have a diameter of tens of microns. However, active BAT can be also found next to the vertebrae, a location we did not include.

While we have trained the network based on locations with PDFF in a range of 35–110%, it will be easy for the end user of the code we share to choose the final range of PDFF values to be included for their analysis. As we did not define borders in the superior or inferior direction (we segmented all fat pockets surrounding the carotid, the subclavian and axillary artery), it will remain open to the end user to define the cranial/caudal border according to their preference. A possible landmark for the cranial border could be the vocal cord. The clavicle could be used as the inferior border, but a variability is to be expected depending on the patient’s shoulder positioning. Future designs of improved network architectures need to account for the potential problem of over-fitting to current annotation labels, since as of now, we only have a limited number of subjects with labels. Besides, one interesting future possibility for improving the segmentation performance can be leveraging unannotated data with semi-supervised or unsupervised methods to further enhance the performance of our method.

Conclusions

This paper proposed an artificial intelligence (AI) system on a deep neural network for segmenting the supraclavicular fossa for BAT quantification. Experimental results demonstrated the potential of deep learning in the automatic segmentation of supraclavicular fat depots. The proposed BAT-Net with the ability of extracting informative latent features can provide consistent segmentation among subjects since the architecture and the corresponding parameters are determined after training. The model integrated multi-modal MRI scans, 2D and 3D, local and global context information and showed high-level segmentation performance. Our AI system can provide consistent quantification results and has the potential to facilitate the research on BAT using MRI.
