A magnetic resonance imaging-based computational analysis of cerebral hemodynamics in patients with carotid artery stenosis

Jonas Schollenberger1^, Drew J. Braet2, Luis Hernandez-Garcia1,3^, Nicholas H. Osborne2^, C. Alberto Figueroa1,2^

1Department of Biomedical Engineering, University of Michigan, Ann Arbor, MI, USA; 2Department of Surgery, University of Michigan, Ann Arbor, MI, USA; 3Functional MRI Laboratory, University of Michigan, Ann Arbor, MI, USA

^ORCID: Jonas Schollenberger, 0000-0002-9245-3984; Luis Hernandez-Garcia, 0000-0003-3002-0304; Nicholas H. Osborne, 0000-0002-8599-6649; C. Alberto Figueroa, 0000-0002-3934-6506.

Correspondence to: Jonas Schollenberger, PhD. Department of Biomedical Engineering, University of Michigan, 2800 Plymouth Rd, Bldg 20-211W, Ann Arbor, MI 48105, USA. Email: scjonas@umich.edu.

Abstract: Management of asymptomatic carotid artery stenosis (CAS) relies on measuring the percentage of stenosis. The aim of this study was to investigate the impact of CAS on cerebral hemodynamics using magnetic resonance imaging (MRI)-informed computational fluid dynamics (CFD) and to provide novel hemodynamic metrics that may improve the understanding of stroke risk. CFD analysis was performed in two patients with similar degrees of asymptomatic high-grade CAS. Three-dimensional anatomical-based computational models of cervical and cerebral blood flow were constructed and calibrated patient-specifically using phase-contrast MRI flow and arterial spin labeling perfusion data. Differences in cerebral hemodynamics were assessed in preoperative and postoperative models. Preoperatively, patient 1 demonstrated large flow and pressure reductions in the stenosed internal carotid artery, while patient 2 demonstrated only minor reductions. Patient 1 exhibited a large amount of flow compensation between hemispheres (80.31%), whereas patient 2 exhibited only a small amount of collateral flow (20.05%). There were significant differences in the mean pressure gradient over the stenosis between patients preoperatively (26.3 vs. 1.8 mmHg). Carotid endarterectomy resulted in only minor hemodynamic changes in patient 2. MRI-informed CFD analysis of two patients with similar clinical classifications of stenosis revealed significant differences in hemodynamics which were not apparent from anatomical assessment alone. Moreover, revascularization of CAS might not always result in hemodynamic improvements. Further studies are needed to investigate the clinical impact of hemodynamic differences and how they pertain to stroke risk and clinical management.

Keywords: Computational fluid dynamics (CFD); magnetic resonance imaging (MRI); cerebral hemodynamics; carotid artery stenosis (CAS); collateral flow

Submitted Jun 04, 2022. Accepted for publication Nov 28, 2022. Published online Jan 05 2023.

doi: 10.21037/qims-22-565


Carotid artery stenosis (CAS) is a leading cause of stroke, accounting for 10–15% of ischemic strokes (1,2). Management of patients with CAS relies on assessment of the percentage of stenosis, which does not evaluate factors important in stroke pathophysiology such as plaque composition, the patency of cerebral collaterals, or the cerebral vascular flow reserve (3-5). Given the wide variability regarding the indications for carotid endarterectomy (CEA) in asymptomatic patients, lack of contemporary trials, and limitations of stenosis measurements, improved mechanisms of assessing stroke risk and CEA benefit are warranted.

Cerebral hemodynamics play a key role in the stroke risk of CAS (6). Strokes in patients with high grade stenosis, in combination with inadequate collateral pathways in the circle of Willis (CoW), are likely to have a hemodynamic etiology due to a critical flow reduction ipsilateral to the stenosis (7). Furthermore, cerebral hemodynamics may play a role in the prevention of symptomatic CAS, given that patent collaterals have been associated with a reduced risk of stroke and transient ischemic attack (TIA) (8-10). However, obtaining a quantitative description of cerebral hemodynamics with clinically available mechanisms is challenging. The primary imaging tools to measure cerebral blood flow clinically include transcranial doppler, which provides a velocity spectrum in selected locations, and 4D-flow magnetic resonance imaging (MRI), which yields a velocity field with limited spatial and temporal resolution. Measurements of intravascular pressure in the cervical and cerebral arteries are generally not available.

In contrast, patient-specific computational fluid dynamics (CFD) allows for characterization of complex hemodynamics and the ability to provide velocity and pressure data with a high spatial and temporal resolution. The capabilities of patient-specific CFD analysis to assess cerebral hemodynamics have been demonstrated for intracranial stenosis (11-13) and aneurysm (14-16). However, patient-specific calibration of cerebral blood flow models remains challenging due to the high anatomical variability of cerebral vasculature and the effects of cerebral autoregulation on cerebral blood flow. Previous CFD studies of cerebral hemodynamics have generally relied on modeling assumption about the flow distribution in the CoW (17,18), thereby significantly limiting the ability to capture the hemodynamic impact of stenosis, in particular the flow compensation in the CoW.

The aim of this study was to quantify cerebral hemodynamics using MRI-informed CFD and to provide novel hemodynamic information that may improve the understanding of stroke risk and identify patients who would benefit from CEA. We previously presented a novel method of calibrating CFD models patient-specifically using a combination of arterial spin labeling (ASL) MRI brain perfusion, phase-contrast (PC)-MRI flow, and cuff pressure data, which was validated in a small cohort of subjects (19). In this work, we demonstrated the feasibility of an MRI-informed CFD analysis to (I) assess differences in cerebral hemodynamics and collateral flow between two patients with high grade CAS; (II) evaluate hemodynamic changes following CEA; and (III) derive pressure metrics to identify hemodynamically significant CAS.


Two patients with CAS were recruited from the vascular surgery unit at the University of Michigan Hospital. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Institutional Review Board of the University of Michigan (No. HUM00114275) and informed consent was taken from all individual participants.

Imaging data

Patients underwent an MRI study performed at 3T (MR750; GE Healthcare, Waukesha, WI). Patients 1 and 2 received MRI scans at 46 and 12 days preoperatively, respectively. Patient 2 received an additional MRI scan 56 days postoperatively. Anatomical information from the thoracic aorta to the CoW was acquired with a combination of 2D T1-weighted spoiled gradient echo MRI and 3D Time-of-Flight MRI. Additionally, preoperative neck and head computed tomography angiography (CTA) data was available for patient 2. Flow rates were obtained at the level of the ascending aorta and the main cervical arteries above the carotid bifurcation from PC-MRI. Brain tissue perfusion data were collected non-invasively using ASL. First, a standard non-selective labeling scheme was employed to acquire total perfusion maps of the brain tissue (20). Following, a vessel-selective labeling scheme was used to acquire the regional brain perfusion territories of the carotid and vertebral arteries (21,22). Cuff pressure was acquired in the right upper extremity while the patient remained in the supine position. Further details of the imaging protocol have been previously described (19).

MRI-informed computational modeling

MRI-informed CFD analysis of cervical and cerebral hemodynamics was performed using the validated open-source computational hemodynamics framework CRIMSON (23). Anatomical models of the large arteries from the aortic arch to the CoW were constructed by first segmenting 2D vessel contours along the centerline and second lofting an analytical representation of each vessel to create a combined 3D anatomical model (Figure S1). The preoperative model of patient 1 was reconstructed based on the anatomical MRI data. For the preoperative model of patient 2, the unsubtracted CTA data was used due to the higher spatial resolution. The postoperative anatomical model of patient 2 was created by updating the preoperative anatomical model in the region of the right carotid bifurcation based on the postoperative anatomical MRI data. Briefly, the postoperative MRI data was first co-registered to the preoperative CTA data in the region of the stenosis. The vessel segments of the common and internal carotid artery around the stenosis were then re-segmented based on the postoperative MRI and lofted to create a postoperative 3D model. 3D models were discretized using linear tetrahedral elements. All vessel walls were assumed rigid with a no-slip boundary condition. Inflow and outflow boundary conditions were prescribed at each model inlet and outlet (Figure S2). A volumetric flow waveform, reconstructed from PC-MRI, was imposed at the inflow of the ascending aorta. Each model outflow was coupled to a 3-element Windkessel lumped-parameter model, consisting of a proximal resistance Rp, a distal resistance Rd, and a compliance C, to capture the behavior of the distal vasculature. The Windkessel model parameters were iteratively calibrated to match the flow and pressure waveforms of the CFD model to the patient’s acquired hemodynamic data. Briefly, (I) Using the PC-MRI and ASL perfusion data, mean target flow rates were derived at each model outlet and the distal resistances Rd were tuned to match the CFD flow rates to the target values. (II) The resistance ratio Rp/Rd was manually adjusted to match the pulsatility of the CFD flow waveforms to the pulsatility of the PC-MRI waveforms above the carotid bifurcation. And (III), the total resistance and compliance of all windkessel models combined was adjusted to match the CFD model diastolic and systolic pressure at the right subclavian artery to the cuff pressure measurements. The final Windkessel parameters are provided in Table S1. A more detailed description of our patient-specific parameter tuning strategy can be found elsewhere (19).

Blood was modeled as an incompressible Newtonian fluid with a dynamic viscosity of 0.004 kg·m−1·s−1 and a density of 1,060 kg·m−3. Computations were performed with the CRIMSON Navier-Stokes Flow solver using 80 cores on a high-performance computing cluster. Simulations were run using a time step size of 0.1 ms until cycle-to-cycle periodicity was achieved, typically after 5 cardiac cycles. Velocity and pressure fields were extracted for the last cardiac cycle.

To visualize and quantify the blood supply from the cervical arteries to the CoW, a further post-processing analysis on the CFD data, known as Lagrangian particle tracking (LPT) was performed (24,25). Virtual boluses were created by seeding massless particles continuously at the root of each cervical artery and advecting the particles with the velocity field over multiple cardiac cycles. Particles were counted at each outlet over the last cardiac cycle.


Patient history

Patient 1 [female, 55 years old with history of hypertension (HTN), hyperlipidemia (HLD), peripheral artery disease, chronic obstructive pulmonary disease, and previous left CEA] presented with an asymptomatic 70–99% stenosis of the proximal right internal carotid artery (RICA) based on duplex ultrasound (DUS) North American Symptomatic Carotid Endarterectomy Trial (NASCET) criteria [peak systolic velocity (PSV)/end-diastolic velocity (EDV) = 417/140 cm/s]. She had a compete CoW and the left internal carotid artery (LICA) was patent with no evidence of stenosis (PSV/EDV = 112/42 cm/s). She underwent CEA with patch angioplasty on the RICA. Her post-operative course was uncomplicated. Her post-operative duplex demonstrated a PSV/EDV of 123/50 cm/s. At one month follow-up the patient was on optimal medical therapy (OMT).

Patient 2 (male, 63 years old with history of HTN and HLD) presented with an asymptomatic 50–69% stenosis of the proximal RICA by velocities (PSV/EDV = 160/33 cm/s) but a 70–99% stenosis by image criteria on DUS and a hemodynamically insignificant stenosis of the proximal LICA based on DUS (PSV/EDV =97/41 cm/s). CTA data revealed an 80–90% and 60% stenosis in the proximal RICA and proximal LICA respectively with a complex high-grade plaque. The patient’s CoW was incomplete with a hypoplastic right P1 segment and an atretic distal right vertebral artery (RVA). Given the disease progression with an 80–90% RICA stenosis identified on CTA, CEA with patch angioplasty was performed on the RICA following the study and patency was confirmed by DUS (RICA: PSV/EDV =73/19 cm/s, LICA: PSV/EDV =84/28 cm/s) postoperatively. The patient tolerated the procedure well, which was complicated by a neck hematoma that was managed conservatively. At one month follow up the patient remained asymptomatic and was on OMT.

Anatomical models

The cross-section at maximum RICA stenosis revealed a remaining luminal diameter of 1.4 and 3.5 mm for patients 1 and 2, respectively. The lumen of the proximal RICA in patient 2 was fully restored following CEA (8.3 mm) (Figure 1).

Figure 1 3D-reconstructed anatomical models. (A) Close-up of the stenosed carotid bifurcations of patients 1 and 2. The red arrows indicate the location of maximum stenosis. An axial cross-section illustrates the comparison between image data and model contours. (B) Posterior view of the CoW. The black arrows indicate variations in the CoW anatomy. R and L indicate the right and left sides from the subject’s perspective. RICA, right internal carotid artery; RECA, right external carotid artery; LICA, left internal carotid artery; LECA, left external carotid artery; CoW, Circle of Willis; CTA, computed tomography angiography; DUS, Duplex ultrasound.

Preoperative hemodynamics

In patient 1, the severe RICA stenosis resulted in a reduction in mean flow (Q¯) and pressure (P¯) when compared to the patent contralateral LICA (Q¯RICA=3.25 mL/s versus Q¯LICA=6.79 mL/s and P¯RICA=62.92 mmHg versus P¯LICA=87.72 mmHg, respectively) (Figure 2). In the CoW, the mean flow in the ipsilateral right middle cerebral artery (RMCA) was restored to the level of the contralateral left middle cerebral artery (LMCA) (Q¯RMCA=3.74 mL/s and Q¯LMCA=3.92 mL/s). However, the pressure difference between hemispheres remained (P¯RMCA=47.62 mmHg and P¯LMCA=74.91 mmHg). In contrast, the severe RICA stenosis in patient 2 resulted only in a minor flow reduction compared to the LICA with Q¯RICA=4.00 mL/s and Q¯LICA=5.25 mL/s and the mean pressure was comparable (P¯RICA=109.16 mmHg and P¯LICA=110.53 mmHg). In the CoW, the mean flows and pressures observed at the right and left MCA were comparable with P¯RMCA=106.42 mmHg versus P¯LMCA=106.37 mmHg and Q¯RMCA=2.50 mL/s versus Q¯LMCA=2.60 mL/s.

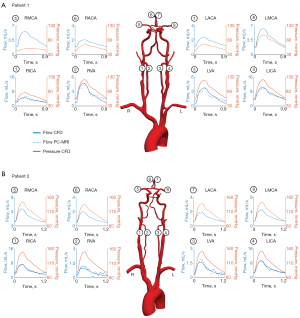

Figure 2 MRI-informed CFD flow and pressure waveforms at selected locations above the carotid bifurcation and in the CoW over a full cardiac cycle. MRI-informed CFD flow waveforms in the cervical arteries are compared to in-vivo PC-MRI flow data. (A) Pre-operative model of patient 1 (B) Pre-operative model of patient 2. RMCA, right middle cerebral artery; RACA, right anterior cerebral artery; RICA, right internal carotid artery; RVA, right vertebral artery; LACA, left anterior cerebral artery; LMCA, left middle cerebral artery; LVA, left vertebral artery; LICA, left internal carotid artery; MRI, magnetic resonance imaging; CFD, computational fluid dynamics; PC-MRI, phase-contrast MRI; CoW, circle of Willis.

Patient 1 exhibited a large amount of flow compensation between hemispheres with the right anterior cerebral artery (RACA) (#2) being predominately supplied by the LICA (80.31%) (Figure 3). In contrast, patient 2 revealed only a small amount of collateral flow from the LICA to the RACA (20.05%). The MCAs (#3, #4) were predominately supplied by the ipsilateral ICA in both patients. Patient 1 revealed a rotational motion of vertebral flow in the basilar artery, resulting in dominant supply of the left posterior cerebral artery (LPCA) (#5) from the RVA and dominant supply of the right posterior cerebral artery (RPCA) (#6) from the left vertebral artery (LVA). The posterior territory of patient 2 was supplied ipsilaterally by the ICAs and the cerebellum was supplied by the LVA.

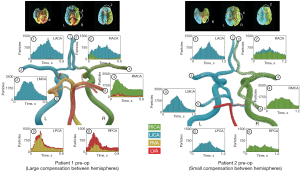

Figure 3 Analysis of blood supply in the CoW with Lagrangian particle tracking. Particles are color-coded based on the originating cervical artery. Histograms show the particle count over a full cardiac cycle at each outlet. The accuracy of the MRI-informed CFD models was demonstrated by validating the supply of the intracranial arteries obtained from LPT against territorial perfusion from vessel-selective ASL, which resulted in an overall good qualitative match. A more comprehensive and quantitative validation of the patient models was previously presented (19). LACA, left anterior cerebral artery; RACA, right anterior cerebral artery; LMCA, left middle cerebral artery; RMCA, right middle cerebral artery; LPCA, left posterior cerebral artery; RPCA, right posterior cerebral artery; RICA, right internal carotid artery; LICA, left internal carotid artery; RVA, right vertebral artery; LVA, left vertebral artery; Cow, circle of Willis; MRI, magnetic resonance imaging; CFD, computational fluid dynamics; LPT, Lagrangian particle tracking; ASL, arterial spin labeling.

Postoperative hemodynamics

The preoperative collateral flow from the LICA to the RACA observed in patient 2 disappeared postoperatively (Figure 4). The flow direction in the anterior communicating artery was reversed, resulting in a minor flow contribution from the RICA to the left anterior cerebral artery (LACA) (7.24%). Following CEA in patient 2, changes in flow rates were small in both cervical and cerebral arteries with flow increasing by 8.1% in the RICA and by 13.4% in the LMCA postoperatively (Figure 5).

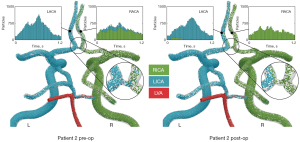

Figure 4 Comparison of the preoperative and postoperative blood supply in the CoW of patient 2 using Lagrangian particle tracking. Particles are color-coded based on the originating cervical artery. Histograms show the particle count over a full cardiac cycle at the right and left ACA. A close-up shows the flow in the anterior communication artery. LACA, left anterior cerebral artery; RACA, right anterior cerebral artery; RICA, right internal carotid artery; LICA, left internal carotid artery; LVA, left vertebral artery; Cow, circle of Willis; ACA, anterior cerebral artery.
Figure 5 Comparison of preoperative and postoperative mean flow rates in the main arteries of patient 2. Mean flow rates were normalized by the CO. CO, cardiac output; LICA, left internal carotid artery; RICA, right internal carotid artery; LVA, left vertebral artery; RVA, right vertebral artery; LACA, left anterior cerebral artery; RACA, right anterior cerebral artery; LMCA, left middle cerebral artery; RMCA, right middle cerebral artery; LPCA, left posterior cerebral artery; RPCA, right posterior cerebral artery; LSCA, left superior cerebral artery; RSCA, right superior cerebral artery.

Pressure metrics

The hemodynamic impact of CAS was further assessed by calculating a mean pressure gradient over the stenosis as the difference in pressures 2 cm proximal and distal to the maximum narrowing (Figure 6). The preoperative analysis resulted in a significantly higher mean pressure gradient over the RICA stenosis of patient 1 with ΔP¯RICA,pre=26.3 mmHg compared to the RICA stenosis of patient 2 with ΔP¯RICA,pre=1.8 mmHg. Following CEA in patient 2, the mean pressure gradient over the RICA stenosis was reduced to ΔP¯RICA,post=0.1 mmHg.

Figure 6 Evaluation of the mean pressure gradient ΔP¯ over the stenosis in patients 1 and 2. The pressure distribution in the vasculature is shown at peak systole. ΔP¯ was calculated as the difference between the mean pressures 2 cm proximal and distal to the peak stenosis. RICA, right internal carotid artery; LICA, left internal carotid artery.


Diagnosis and management of patients with CAS is centered around assessing the degree of stenosis. While reduced long-term stroke risk following carotid revascularization has been demonstrated in symptomatic patients with greater than 50% stenosis, the criteria and benefits of revascularization in asymptomatic patients are unclear (26-28). While contemporary guidelines recommend consideration of carotid artery revascularization for asymptomatic patients with greater than 70% stenosis (29), most clinicians reserve revascularization for cases greater than 80–90%. Thus, the question of how to best identify patients with asymptomatic CAS who would benefit from carotid revascularization remains. In the present study, we utilized a novel patient-specific MRI-informed CFD modeling strategy to provide quantitative insight into cerebral hemodynamics.

The preoperative comparison of two patients with high grade asymptomatic CAS showed significant differences in hemodynamics despite both patients having similar percentage of luminal narrowing. Patient 1 exhibited a large flow and pressure gradient in the RICA with a large amount of collateral flow compensation, while patient 2 demonstrated only minor reductions in the RICA. Differences in lumen diameter (1.4 mm for patient 1 and 3.5 mm for patient 2) may explain the differences in hemodynamics between patients in this study. These differences illustrate the variability in cerebral hemodynamics due to stenotic lesions, anatomical variations, patency of collaterals, and vascular flow reserve. While the peak velocities obtained from DUS revealed differences between the two patients, a comprehensive representation of the differences in flow, pressure, and blood supply is not available from DUS or CTA/magnetic resonance angiography (MRA). Interestingly, following CEA patient 2 had minor hemodynamic changes, with a small reduction in pressure gradient and increase in flow in the RICA thus highlighting that revascularization may not result in hemodynamic improvements. Although it is unclear how the hemodynamic differences noted in these two patients affected their stroke risk, these results highlight that patient-specific analyses provide a more comprehensive assessment of carotid artery lesions and their potential hemodynamic effects.

Due to its high sensitivity to the degree of luminal narrowing, the pressure gradient may be a better suited marker than anatomical or velocity-based metrics to identify hemodynamically significant stenotic lesions. In coronary artery disease, intervention based on pressure gradient-derived metrics (e.g., fractional flow reserve or FFR) has been shown superior to anatomic-derived metrics (30,31). While the use fractional flow has been proposed for CAS (6), studies so far have only established feasibility (12,32). Since pressure guidewire measurements in the cervical or intracranial arteries are generally unavailable, CFD analysis provides a non-invasive alternative. Liu et al. found a fractional flow of 0.88 to be a potential threshold to distinguish between severe and moderate degrees of stenosis based on CFD models of the carotid bifurcation informed by contrast-enhanced MRI and DUS data (33). Furthermore, CFD-derived pressure gradients in CAS have shown to correlate well with guidewire pressure measurements (11,34).

Distal to the stenosis, hemodynamics is further impacted by the flow compensatory capabilities of the cerebral vasculature. Digital subtraction angiography (DSA) is the gold standard for visualizing collateral flow and has been used to derive hemodynamic markers (e.g., bolus transit time) (35). ASL perfusion has been proposed as a non-invasive DSA alternative to assess the hemodynamic impact of CAS at the tissue level. ASL-derived markers (e.g., arterial transit time, cerebral blood volume, etc.) have shown to be good indicators of the hemodynamic severity of carotid stenosis (36,37). Vessel-selective ASL has further allowed to quantify collateral flow compensation (38).

The aim of our proposed modeling strategy is to quantitatively assess the hemodynamic impact of stenosis at the level of the stenosis, the CoW, and the tissue, thereby providing a more complete hemodynamic picture. However, one of the challenges in the cerebral vasculature is that the flow in each of the main arteries of the CoW is considerably controlled by the mechanisms of cerebral autoregulation in the distal vascular bed. Previous CFD modeling studies of cerebral blood flow in CAS patients have generally not accounted for these changes in the distal vasculature and instead have relied on idealized assumptions about the flow distribution in the CoW (17,18). Our proposed patient-specific model parameter tuning strategy allows to account for changes in the microvasculature and enables the quantification of collateral flow in the main pathways of the CoW additionally to capturing the pressure gradient over the stenosis.

This study was limited by the small sample size and is therefore intended as a feasibility study to demonstrate the capabilities of an MRI-informed CFD analysis to patient-specifically characterize cerebral hemodynamics rather than a replacement of gold standard diagnostic modalities. Furthermore, it remains unclear if hemodynamic differences in carotid arterial and intracranial flow are predictive of stroke risk and/or surgical outcomes. Given the limited number of patients in this study, we cannot account for the impact of factors associated with carotid artery disease (sex, tobacco use, HTN, HLD, etc.) which may be affecting the differences we are observing. Moreover, our study did not include an assessment of high risk/vulnerable plaques, which is associated with stroke risk and cerebrovascular events in symptomatic and asymptomatic patients (39,40). Furthermore, secondary collateral pathways (e.g., ophthalmic and leptomeningeal arteries), which have been shown to play an important role in stroke volume and outcomes (41,42), were not included in the CFD modeling.

In conclusion, we presented an MRI-informed CFD modeling strategy to characterize cerebral hemodynamics in patients with CAS. We demonstrated that our MRI-informed CFD analysis can provide detailed and quantitative information about hemodynamic impact of CAS and collateral flow compensation in the CoW. Future studies are needed to investigate the clinical impact of cerebrovascular hemodynamic differences and how they pertain to stroke risk and clinical management.
