Phantom-based quantification of the spectral accuracy in dual-layer spectral CT for pediatric imaging at 100 kVp
Introduction
Dual-energy CT (DECT) (1-3), the first clinical realization of spectral imaging, is an imaging technology that enables unique quantification of clinically relevant materials based on their elemental composition. By utilizing data from two different X-ray spectra, DECT overcomes several limitations of conventional single-energy CT imaging. Dedicated decomposition algorithms that exploit the material-specific energy dependency of X-ray attenuation (2,4-6) provide energy- and material-selective reconstructions. These include virtual mono-energetic images (VMIs) (7), quantitative material density assessment and virtual subtraction of clinical contrast agents, as well as information on electron density (ED) and effective atomic number (Zeff) (8).
Multiple solutions have been developed for generating spectral data based on different detection and source technologies (1,2). Among the commercially available DECT systems, dual-layer spectral CT has the unique property of creating the spectral separation at the detector level. This design uses a single X-ray source and two attached, but optically separated, scintillation detectors with different sensitivity profiles. While the upper (inner) layer selectively absorbs low-energy X-rays and serves as filtration, the bottom (outer) layer is more sensitive to higher energy X-rays (9,10).
This detector-based spectral data collection provides multiple advantages. First, both spectral and conventional anatomical images are generated simultaneously for every scan. Hence, one does not need to prospectively select studies for spectral acquisitions and the original imaging workflow can be maintained. Spectral imaging has only been possible at 120 and 140 kVp, but the latest generation of detector-based DECT also enables acquisitions at 100 kVp. Detector-based spectral separation also provides spatial and temporal alignment of both spectra, enabling efficient projection-space decomposition with an intrinsic reduction of beam-hardening artefacts (7) and better spectral denoising compared to image-space decomposition (9).
While the general clinical benefit of spectral information is well established (11-13), there is less evidence concerning the potential of DECT for pediatric imaging. Current applications of DECT in children include improved automated bone removal for CT angiography, assessment of lung blood volume as a surrogate for perfusion imaging, reduction of metal artifacts originating from highly-attenuating materials such as orthopedic hardware, and diagnosis of abdominal neoplasms (14-16).
One reason for the limited use of DECT in pediatric imaging is the unique requirements of this patient population. First, radiation exposure from medical procedures is a paramount concern for children and must be kept as low as reasonably achievable (17). Due to their longer lifetime expectancy and increased radiosensitivity of their cells compared to adults, children have a higher cumulative risk of developing radiation-induced cancers. Thus, pediatric CT protocols routinely use lower X-ray beam energies of 100 kVp for abdomen and chest scans to reduce the radiation exposure while maintaining or even improving diagnostic image quality (18). Second, young children are often unable to comply with instructions and do not remain still during extended scan times, which increases the likelihood for motion artifacts (19). The use of larger collimation widths and fast gantry rotation times, down to 0.27 s, allows reduction of the overall acquisition time, potentially avoiding the need for sedation.
The aim of this phantom study is a quantitative investigation of the impact of using 100 kVp tube voltage and 8 cm beam collimation width on the spectral imaging performance for pediatric imaging using a state-of-the-art dual-layer DECT system.
Methods
Phantom configuration
In this study, we used a spectral CT phantom (QRM GmbH) with custom-made extension rings. The cylindrical 10 cm diameter phantom (Figure 1) is composed of water-equivalent plastic and contains tissue-equivalent inserts corresponding to liver, adipose, and 100 and 400 mg/mL hydroxyapatite (HA) materials. For iodine density quantification, four solid iodine inserts with properties equivalent to iodinated contrast media at concentrations of 0.5, 2, 5 and 10 mg/mL were also included. To incorporate the large variability of body size in children and adolescents and assess its impact on spectral quantification, two supplemental extension rings of 15 and 20 cm outer diameter were 3D-printed from a polylactate acid (PLA) filament. The rings were attached to the original phantom (Figure 1) and the selected diameters (10, 15 and 20 cm) reflect typical waist circumferences in children aged 2 to 18 years (20,21).
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/4/articles/107448/public/107448-PB4-4805-R1.jpg/w300)
To evaluate the accuracy of the spectral results, the expected (i.e., ground truth) values for all inserts were calculated from the manufacturer material composition specifications. Nominal CT numbers in Hounsfield unit (HU) for a virtual monoenergetic images (VMI) of energy E are calculated as:
where i ranges over the elements composing the material and wi is the normalized mass fraction of element Zi with atomic mass Ai. ρ represents the physical density and the mass attenuation coefficients (μi and μwater for element i and water, respectively) were obtained from the NIST database (22). The effective atomic number of an insert material is given by (8,23):
fi corresponds to the fractional number of electrons of the constituent element Zi. The exponent 2.94 is selected based on published literature (8). ED values provided by the scanner are expressed as percentage relative to water (EDw=3.343×1023 cm−3) and can be calculated as:
where NA is Avogadro’s constant. The nominal values for all insert materials used in this work can be found in Shapira et al. (23).
Data acquisition
All acquisitions were performed on a commercial dual-layer spectral CT scanner (Spectral CT 7500, Philips Healthcare). Institutional review board approval was not required because this was a phantom study. Scans used the default infant and child abdomen protocols with 0.272 second gantry rotation time and a pitch of 1.234. Acquisitions were performed at 120 and 100 kVp tube voltages as well as 4 and 8 cm (total) collimation widths. The phantom was positioned in the iso-center and a similar positioning was maintained for all three phantom configurations. For each scenario (i.e., combination of scan parameter and phantom size), images were obtained at four different dose levels (CTDIvol) of 9, 6, 3 and 0.9 mGy. The CTDIvol was measured using a 32 cm phantom. Currently, achievable dose levels for examinations of abdomen and pelvis with contrast material in patients with effective diameter of 12–20 cm are 2.0–2.9 mGy CTDIvol (24); hence, 3 mGy acquisitions will be severing as reference. Three repetitions were performed for each scan.
The image series were reconstructed with the hybrid iterative reconstruction method iDose4 (spectral denoising level of 2) and a clinical standard kernel for body imaging (B). In total, 48 datasets (2 tube voltages × 4 dose levels × 2 collimation widths × 3 repetitions) were collected for each phantom configuration. We did not investigate different spectral denoising levels as they have no substantial impact on the accuracy of spectral results (8,25). The resulting spectral base images contain all relevant information to generate VMIs, as well as iodine density, Zeff, and ED images. A summary of all acquisition and reconstruction parameters is presented in Table 1.
Table 1
Parameters | Value |
---|---|
Tube voltage (kVp) | 120, 100 |
Collimation width (mm) | 40 (64×0.625), 80 (128×0.625) |
Dose level (CTDIvol) (mGy) | 9, 6, 3, 0.9 |
Tube current exposure time product (mAs) | ▪ 120 kVp/40 mm: 109, 72, 36, 11 |
▪ 120 kVp/80 mm: 116, 78, 39, 11 | |
▪ 100 kVp/40 mm: 175, 116, 58, 17 | |
▪ 100 kVp/80 mm: 188, 125, 63, 19 | |
Pitch | 1.234 |
Rotation time (s) | 0.272 |
Slice thickness (mm) | 3 |
Field-of-view (mm2) | 250×250 |
Pixel spacing (mm) | 0.488 |
CTDIvol, CT dose index.
Image quality assessment
Spectral accuracy was measured using circular regions of interest (ROIs) within each cylindrical insert on 26 consecutive axial slices in the center of the phantom. For each configuration, ROIs were positioned semi-automatically on the high dose 70 keV VMIs using an in-house developed python code and covered only half of the actual insert radius (i.e., ROI size of around 330 pixels per slice) to avoid inaccuracies originating from partial volume effects (Figure 1). Subsequently, these ROIs were used to extract pixel data from all datasets, i.e., conventional, VMIs, iodine density, Zeff and ED, and the mean value was obtained for each slice. Accuracy was calculated as the difference between DECT-estimated and nominal spectral result; hence, negative and positive values indicate an under- and overestimation of the nominal value, respectively. The average accuracy was calculated as the mean value of the absolute accuracies from all relevant materials (i.e., liver, adipose and HA for conventional images, VMIs, Zeff and ED, and 0.5, 2, 5 and 10 mg/mL iodine for iodine density). In addition, the precision of the spectral results (i.e., noise) for different dose levels was obtained as the standard deviation of the data obtained from aforementioned ROIs (cf. accuracy measurement). Results were subsequently averaged for all ROIs of the relevant insert materials.
Statistical analysis
Statistical analysis was performed using MATLAB R2021b (MathWorks Inc., Natick, Massachusetts). Differences in spectral quantification accuracy (i.e., mean error) for different collimation widths and tube voltages were compared using Mann-Whitney U tests (26). The Kruskal-Wallis test (27) was used to compare different dose levels and phantom sizes. In addition, we analyzed changes in spectral quantification variation (i.e., standard deviation of the measurement error) for different dose levels using Kruskal-Wallis tests followed by a post hoc pairwise comparison with Dunn’s test [using the Šidák correction (28)]. In all cases a P value ≤0.05 was considered as statistically significant.
Results
We first present each individual spectral result at the reference dose level of 3 mGy CTDIvol. The impact of varying dose levels was evaluated separately in the last subsection.
Virtual mono-energetic images
The accuracy of various VMIs (from 40 to 200 keV) is summarized in Table 2 for scans using the wide (8 cm) collimation width at 100 and 120 kVp. For both tube voltages, VMI CT numbers tend to increase with increasing phantom size. The average accuracy over all insert materials was 1.4, 5.6, and 7.2 HU for the small, medium, and large phantom configuration at 100 kVp. The corresponding results at 120 kVp were 1.3, 3.5, and 5.6 HU. However, differences between both tube voltages were not statistically significant (P=0.77). No difference between 4 and 8 cm collimation width was observed (P=0.57).
Table 2
Liver (HU) | Adipose (HU) | HA100 (HU) | HA400 (HU) | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
100 kVp | 120 kVp | 100 kVp | 120 kVp | 100 kVp | 120 kVp | 100 kVp | 120 kVp | ||||
40 keV | |||||||||||
Small | 15.5±2.7 | 12.0±2.3 | 4.4±1.7 | 6.6±1.9 | 9.4±3.2 | 0.6±3.6 | 1.4±3.1 | −27.0±3.4 | |||
Medium | 20.0±4.6 | 13.8±2.9 | 13.7±2.4 | 13.1±2.5 | 18.4±5.0 | 7.0±4.3 | 10.1±7.2 | −26.7±5.7 | |||
Large | 24.3±5.9 | 17.4±7.0 | 19.4±5.4 | 18.9±4.5 | 22.4±6.1 | 8.7±6.9 | 11.1±13.6 | −26.2±13.1 | |||
50 keV | |||||||||||
Small | 9.8±1.5 | 8.8±1.4 | −0.4±0.9 | 1.0±1.2 | 8.7±1.5 | 4.9±2.1 | 20.0±2.2 | 6.4±2.1 | |||
Medium | 13.1±2.6 | 10.2±1.6 | 5.1±1.4 | 5.1±1.4 | 15.1±2.6 | 9.5±2.4 | 27.1±4.2 | 8.1±3.5 | |||
Large | 16.3±3.1 | 13.3±3.8 | 8.4±2.8 | 8.7±2.6 | 17.6±3.2 | 11.2±4.0 | 28.9±7.8 | 9.5±7.7 | |||
60 keV | |||||||||||
Small | 6.9±1.1 | 7.2±0.9 | −1.4±0.6 | −0.2±0.7 | 5.4±0.9 | 4.5±1.3 | 16.9±1.9 | 11.8±1.5 | |||
Medium | 9.3±1.5 | 8.5±1.0 | 1.8±1.0 | 2.1±1.0 | 10.1±1.4 | 7.9±1.4 | 22.8±2.7 | 14.4±2.3 | |||
Large | 11.8±1.9 | 11.1±2.0 | 3.8±1.6 | 4.6±1.5 | 11.7±1.9 | 9.5±2.4 | 25.2±4.5 | 16.3±4.7 | |||
70 keV | |||||||||||
Small | 5.2±0.9 | 6.4±0.7 | −1.3±0.6 | −0.3±0.5 | 2.6±0.7 | 3.6±0.9 | 9.9±1.8 | 10.8±1.2 | |||
Medium | 7.2±1.1 | 7.5±0.8 | 0.5±0.9 | 0.9±0.7 | 6.7±1.0 | 6.4±1.0 | 15.2±2.0 | 13.8±1.7 | |||
Large | 9.3±1.7 | 10.0±1.3 | 1.5±1.4 | 2.7±1.1 | 7.7±1.7 | 8.0±1.7 | 18.1±2.7 | 16.0±3.0 | |||
100 keV | |||||||||||
Small | 2.2±1.0 | 4.5±0.8 | −0.6±0.7 | 0.1±0.5 | −4.1±1.2 | −0.8±0.8 | −7.8±1.9 | −0.7±1.2 | |||
Medium | 3.6±1.2 | 5.5±0.9 | −0.7±1.1 | 0.0±0.8 | −1.1±1.4 | 1.2±0.8 | −3.1±1.8 | 2.9±1.3 | |||
Large | 5.2±2.4 | 7.8±1.4 | −0.7±1.9 | 0.8±1.1 | −0.8±2.4 | 2.8±1.6 | −0.1±2.5 | 5.6±1.9 | |||
150 keV | |||||||||||
Small | 1.0±1.1 | 3.8±0.9 | −0.1±0.9 | 0.7±0.6 | −8.2±1.4 | −3.8±1.0 | −20.4±2.1 | −10.3±1.2 | |||
Medium | 2.0±1.5 | 4.5±1.0 | −0.5±1.2 | 0.3±0.9 | −5.5±1.8 | −2.3±1.0 | −16.1±2.1 | −6.4±1.4 | |||
Large | 3.3±2.8 | 6.7±1.9 | −1.2±2.4 | 0.4±1.4 | −5.6±2.9 | −0.5±1.9 | −12.9±3.2 | −3.5±2.3 | |||
200 keV | |||||||||||
Small | 0.4±1.2 | 3.1±0.9 | 0.6±0.9 | 1.1±0.7 | −9.7±1.5 | −5.3±1.1 | −25.8±2.2 | −14.5±1.3 | |||
Medium | 1.4±1.7 | 4.1±1.1 | −0.6±1.2 | 0.2±0.9 | −7.6±2.0 | −3.6±1.3 | −21.6±2.1 | −10.7±1.4 | |||
Large | 2.8±3.0 | 6.6±2.1 | −1.3±2.4 | 0.3±1.4 | −7.6±3.1 | −1.8±2.1 | −18.3±3.5 | −7.9±2.5 |
The table lists mean error and standard deviation of the CT numbers in Hounsfield units (HU). Results are reported for 100 and 120 kVp scans at a collimation width of 8 cm. Negative and positive errors indicate an under- and overestimation of the nominal value, respectively.
A VMI of 62 keV was selected for further comparison, as it most closely matched the CT numbers obtained from the conventional 100 kVp data for all phantom sizes. Figure 2 shows the absolute CT number difference from the average value over the three phantom sizes for conventional and 62 keV VMI data. For the medium phantom size (15 cm), both conventional and VMI provide a comparably low deviation of less than 3 HU. The VMI accuracy for the small and large phantom configuration is only slightly degraded. In contrast, conventional images demonstrate a substantially larger size-dependence with CT number variations of up to 28 HU.
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/4/articles/107448/public/107448-PB5-8439-R1.jpg/w300)
Iodine density

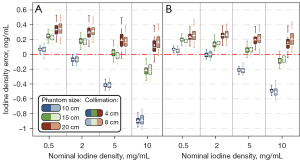

The error in quantified iodine density is shown in Figure 3 for inserts of increasing iodine concentration. A significant size dependence was observed for both tube voltages. Larger variations occurred for higher iodine concentrations and for smaller phantom geometries. The tube voltage of 100 kVp yields slightly higher absolute iodine density errors of 0.16, 0.05, and 0.02 mg/mL compared to 120 kVp for the small, medium, and large phantom sizes, respectively. However, those differences were not significant for any configuration (small: P=0.65; medium: P=0.96; large: P=0.72). Moreover, no significant difference in measurement error was found when comparing 4 and 8 cm collimation widths (P=0.94).
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/4/articles/107448/public/107448-PB6-9169-R1.jpg/w300)
Effective atomic number
Figure 4 shows the Zeff errors obtained for the various acquisition and phantom configurations. Overall, the size-dependence is much smaller than for iodine density (Figure 3), except for adipose tissue. Both tube voltages showed no significant differences when comparing the measurement error among the three phantom sizes (100 kVp: P=0.85, 120 kVp: P=0.93). The mean accuracy was 0.24 and 0.16 for 100 kVp and 120 kVp scans, respectively. No significant difference between both collimation widths was observed (P=0.93).
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/4/articles/107448/public/107448-PB7-6491-R1.jpg/w300)
Electron density

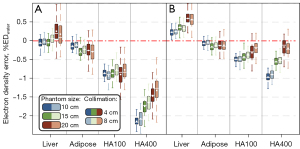

The electron density quantification is displayed in Figure 5. All mean errors were within the uncertainty of the nominal electron density values of 2 %EDwater, except HA400 for the smallest phantom size at 100 kVp (2.1 %EDwater mean error). As for Zeff, there was no influence of phantom size on measurement error (100 kVp: P=0.94, 120 kVp: P=0.47). However, larger variations between different phantom sizes were observed for HA400 in particular with 100 kVp. The mean electron density error was 0.75 %EDwater and 0.37 %EDwater for 100 kVp and 120 kVp, with the largest differences occurring for HA400. Difference between both collimation widths were not significant (P=0.78).
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/4/articles/107448/public/107448-PB8-1742-R1.jpg/w300)
Radiation dose dependency
No significant differences in spectral accuracy (mean measurement errors) were found for both tube potentials and all phantom sizes when comparing results obtained at 0.9, 3, 6 and 9 mGy CTDIvol. Variations in average accuracy between 9 mGy and 0.9 mGy scans for 100 kVp were 0.09 mg/mL, 0.10 and 0.09 %EDwater for iodine density, Zeff and electron density, respectively. The corresponding changes for 120 kVp were 0.03 mg/mL, 0.03 and 0.04 %EDwater. Figure 6 shows the standard deviation of the spectral results obtained from all relevant insert materials. As expected, higher values are observed for larger phantom configurations and with lower imaging doses. However, the results obtained at 0.9 mGy were significantly different only for the 20 cm phantom. The standard deviations for 120 kVp scans were lower by 0.02 mg/mL, 0.01 and 0.05 %EDwater, for iodine density, effective atomic number, and electron density, respectively. Significant differences between 4 cm (not shown in Figure 6) and 8 cm collimation widths were only observed for iodine density (100 kVp and 120 kVp) and electron density (120 kVp), and only with the smallest phantom configuration.
![Click on image to zoom](http://cdn.amegroups.cn/journals/amepc/files/journals/4/articles/107448/public/107448-PB9-4701-R1.jpg/w300)
Discussion
While spectral imaging is becoming more widely utilized in clinical imaging, few studies have been published on DECT in the pediatric population and more experience is required for its adoption into clinical practice (14). Precise and reliable spectral quantification is a key requirement of DECT. However, for pediatric imaging additional factors need to be considered including dose and scan time. While larger collimation width and lower tube voltage could be beneficial, they might compromise spectral quantification. We present the first investigation of quantitative spectral imaging performance at 100 kVp for a dedicated pediatric-sized phantom using the latest generation detector-based DECT.
The 62 keV VMIs demonstrated very similar attenuation values (within few HUs) compared to conventional 100 kVp images across all insert materials for the medium phantom size (Figure 2). Moreover, VMIs substantially increased the stability of CT numbers for varying patient geometries, which can be attributed to accurate correction of beam hardening effects (23,29). Hence, VMIs can enable consistent attenuation quantification for pediatric patients despite the variability of body sizes occurring during childhood. This can improve the characterization and increase conspicuity of abdominal pathologies (16).
Iodine quantification was affected by the phantom size (Figure 3). Similar findings have been reported for previous generations of dual layer (23,30) and dual source DECT (31). Overall, measured iodine densities systematically increased with phantom size and changes were larger for higher iodine concentrations. However, the error was always within 1 mg/mL. Hence, radiologists need to consider patient size when interpreting images based on quantitative iodine density information. Future work should aim to improve the stability of material decomposition algorithms or develop adequate correction methods.
Effective atomic number and electron density results showed excellent accuracy (Figures 4,5) with an accuracy of better than 3% and 1%, respectively. Results generally demonstrated reduced phantom size dependence compared to iodine density (Figure 3) even though larger variations were observed for HA400. This can be utilized to improve the relative stopping power accuracy in proton therapy treatment planning (32), which faces inherent limitations when relying on conventional CT images. Proton therapy allows sparing of normal tissues and reduces the integral dose, thereby making it very appealing for radiotherapy treatment in children (33).
Scans acquired at 120 kVp provided slightly better accuracy than 100 kVp, which can be attributed to the reduced spectral separation at lower tube potentials, as has been reported by others for 120/140 kVp (34,35). However, it should be noted that results depend on phantom size and attenuation (30). Materials such as HA400 and 10 mg/mL iodine showed larger accuracy differences between both tube voltages and the size dependence appears stronger for 100 kVp (Figures 3,5). The collimation width did not significantly affect spectral results (Figures 3-5). A larger collimation not only improves dose utilization but also reduces scan time, both crucial aspects for pediatric patients. It should also be noted that scans in this study were acquired with a very fast rotation time of 0.272 s.
Compared with its predecessor (IQon Spectral CT, Philips Healthcare), the overall spectral accuracy was improved (23). For the same setting (medium phantom size, 9 mGy radiation dose, and 4 cm collimation width) the absolute error in VMI CT number, effective atomic number, and electron density are reduced by 8.69 HU, 0.03 and 0.45 %EDwater, respectively, and the iodine density accuracy is comparable. The quantitative improvements between the two systems can be attributed to two technological advancements. First, the newer Philips Spectral CT 7500 is equipped with a next-generation dual-layer X-ray detection system that is based on a higher-efficiency detector array coupled with a two-dimensional anti-scatter grid. In contrast, the previous generation detector array was based on a stick design that readout the scintillator from the side and necessitated a one-dimensional anti-scatter grid (10). A second reason for the improvements in spectral quantification is an updated physics model of the detector system that is utilized in the 2-base material decomposition process. These improvements include more accurate detector design inputs and the inclusion of second-order physics effects, i.e., light-matter interactions, that occur within the detector system.
To the best of our knowledge there are no dedicated studies comparing the imaging performance of different DECT implementations for pediatric imaging. While many have compared the imaging performance of different DECT technologies in larger phantoms (36,37), results might differ for pediatric-sized phantoms. Moreover, the recent clinical implementation of the first commercial photo-counting CT (38-40) may open new possibilities for spectral imaging that can benefit pediatric patients; however, future studies are needed to investigate and compare the pediatric imaging performance.
The findings of our work evidence the high image quality achievable using standard pediatric abdominal protocol doses. The use of lower tube voltage and dedicated CT protocols are critical to avoid high doses due to the smaller transverse body diameter in children, which highlights the need for a careful trade-off between dose and image quality (41). In fact, it has been demonstrated that DECT scans of the head and abdomen in children can be dose-neutral compared to single energy CT (42,43). We found that spectral quantification was robust with further dose reductions down to 0.9 mGy (Figure 6). Variations were slightly higher for larger phantom sizes due to their increased attenuation, which is in agreement with previous publications (23,35).
A limitation of our study is the use of a geometric phantom. This enables consistent evaluation of spectral results with known ground truth but does not include anatomical features or organs. Therefore, future investigations should be extended to more realistic scenarios such as pediatric anthropomorphic or 3D printed (44) phantoms (ideally tailored to DECT applications). We also only employed a single scan protocol. However, results are not expected to vary much with scan parameters due to the simultaneous acquisition of both spectra (23).
Conclusions
Spectral imaging enables characterization of materials based on their attenuation at different energies and has resulted in various novel applications of CT imaging within the last two decades. Our initial phantom evaluation has shown that detector-based DECT imaging at 100 kVp maintains a high quality of spectral accuracy. Even though DECT offers several clear advantages, further clinical studies are needed for the broad integration of spectral information into pediatric imaging due to its unique requirements.
Acknowledgments
The authors would like to thank Michael Geagan for his help with 3D-printing the extension rings and Safaa Abdallah for her help with acquiring the data.
Funding: This work was supported by the National Institutes of Health (No. R01EB030494).
Footnote
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-22-552/coif). HIL and PBN received a hardware grant from Philips Healthcare. PBN receives research grant funding from Philips Healthcare. SSH is an employee of Philips Healthcare. The other authors have no relevant conflicts of interest to disclose.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. Informed consent and institutional review board approval was not required because this was a phantom study.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
