Abdominal virtual non-contrast images derived from energy spectrum CT to evaluate chemotherapy-related fatty liver disease
Introduction
The prevalence of non-alcoholic fatty liver disease (NAFLD) has been increasing rapidly in Asia, reaching 33.9% in 2015–2017 (1,2). Various factors are associated with NAFLD, including obesity and hyperlipidemia, parenteral nutrition, and the use of steroids and chemotherapy drugs (3,4). Chemotherapy-related fatty liver disease (CRFLD), one type of NAFLD, is a chronic but reversible disease associated with continuous chemotherapy in which drugs accumulate in the liver, resulting in excess phospholipids in the cells (5). Owing to the widespread use of chemotherapeutics in patients with cancer and their increased risk of postoperative death and liver failure (6,7), CRFLD monitoring during chemotherapy is crucial to improving patient prognosis.
Although liver biopsy is considered the gold reference standard for diagnosing and classifying fatty liver (8), it carries the risk of complications such as bleeding (9). Noninvasive imaging techniques can also detect fatty liver disease and help diagnose steatosis (10-13). Magnetic resonance imaging (MRI) is considered to have good diagnostic performance, but its application is limited by the high cost of examination and numerous clinical contraindications, such as the presence of metal foreign bodies and claustrophobia, which prevent patients from undergoing MRI examination (14). Ultrasonography is cost-effective; however, the interpretation of its findings depends on subjective evaluation by a physician. In clinical practice, computed tomography (CT) carries the advantages of having a low price, a short scanning time, and fewer contraindications than other imaging techniques. In addition, it is the most widely used image examination method and is often applied clinically for tumor staging and patient follow-up (15). For patients with cancer, CT can simultaneously be applied to follow up on cancer response to therapy by observing the volume change of the lesion before and after chemotherapy and to evaluate fatty liver, thereby optimizing the clinician’s time and reducing the financial resources required.
In clinical practice, non-enhanced CT is the most popularly used approach to identify fatty liver disease. It determines the measurement based on liver attenuation (13) and derives the liver-to-spleen ratio (LSR; LSR = CT value liver/CT value spleen ratio), which is regarded as a convenient and widely available measure of liver fat (16). The liver fat fraction from dual-energy CT has also been proposed for non-invasive diagnosis of fatty liver (17). However, excessive radiation doses are a major concern with CT use (18). For patients with cancer, non-contrast combined with contrast CT is a common scanning modality that can prevent the omission of metastatic lesions, but patients usually receive higher radiation doses compared to non-ionizing imaging techniques, such as MRI and ultrasonography. Virtual non-contrast (VNC) imaging, based on the energy spectrum CT multimaterial decomposition algorithm, mitigates radiation dose exposure (19). It does this by using technology that can accomplish iodine removal and the subsequent addition of blood after image acquisition through the use of postprocessing material separation techniques (20). Therefore, VNC imaging can serve as an appropriate substitute for true non-contrast (TNC) imaging, reducing the scan time and radiation dose required (21-23).
In this study, we hypothesized that VNC imaging would demonstrate similar diagnostic capabilities as TNC imaging. We attempted to demonstrate that VNC technology can be applied in place of TNC imaging in abdominal imaging for the evaluation of CRFLD and help to clinically simplify the scanning process, shorten the scan time, and reduce the radiation dose. We present the following article in accordance with the STARD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-22-742/rc).
Methods
Study design and population
The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The Ethics Committee of Lanzhou University Second Hospital approved this study (No. 2020A-284), and the requirement to obtain individual consent for this retrospective analysis was waived.

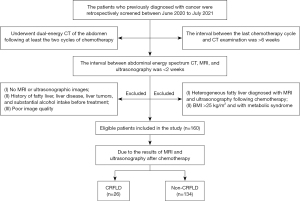

We retrospectively screened 277 patients at Lanzhou University Second Hospital who were diagnosed with various types of cancer and underwent dual-energy CT of the abdomen following at least two cycles of chemotherapy between June 2020 and July 2021. Patients were excluded if: (I) the interval between their last chemotherapy cycle and CT examination was >6 weeks (n=41); (II) the interval between abdominal energy spectrum CT, MRI, and ultrasonography was >2 weeks (n=10); (III) they had no MRI or ultrasonographic images (n=11); (IV) they had a history of fatty liver, liver disease, liver tumors, or substantial alcohol intake before treatment (n=28); (V) they had a body mass index (BMI) >25 kg/m2 (n=12); (VI) they had metabolic syndrome (n=1); (VII) they had heterogeneous fatty liver diagnosed with MRI and ultrasonography following chemotherapy (n=9); or (VIII) their data had poor image quality (n=5). Finally, 160 patients that met the inclusion and exclusion criteria were enrolled in the study.
Based on the MRI DIXON sequence in-phase/opposed-phase and ultrasound diagnostic results following chemotherapy, the patients were divided into the non-CRFLD (n=134) and CRFLD (n=26) groups. Comprising patients with cancer who did not have fatty liver disease after chemotherapy, the non-CRFLD group served as a control group. In the CRFLD group, there were 9 patients with gastric cancer, 5 patients with lung cancer, 5 patients with colorectal cancer, 5 patients with breast cancer, 1 patient with ovarian cancer, and 1 patient with esophageal cancer. The screening and grouping processes are shown in Figure 1.
Acquisition of CT images
Abdominal dual-energy CT was performed using a 256-row CT scanner (Revolution CT, GE Healthcare, Milwaukee, WI, USA). The scan range was from the upper edge of the liver to the lower edge of the pubic symphysis. The scan parameters were as follows: scanning field of view, 50 cm; display field of view, 24; matrix, 512×512; rapid switching between tube voltages, 80 and 140 kVp; tube current, 405 mA; kernel, standard; adaptive statistical iterative reconstruction Veo, 50%; rotation time, 0.5 s; helical pitch, 0.992:1; and slice thickness, 1.25 mm. Enhanced scanning was performed using a high-pressure dual-cylinder syringe (Bayer HealthCare AG, Germany), and iohexol (1 mL/kg) was injected through the median cubital vein at a rate of 4–4.5 mL/s. After injection of the contrast agent, the arterial phase was scanned when the intelligent monitoring reached its peak, while the venous and delayed phases were scanned at 30 and 90 s, respectively.
Objective assessment
The abdominal CT images were analyzed using an Advanced Workstation 4.7 (AW4.7; GE Healthcare) by two radiologists. The first reviewer had 9 years of abdominal diagnostic experience, and the second had 13 years of abdominal diagnostic experience. The reviewers were unaware of the patients’ clinical information and diagnostic imaging results. In total, three CT parameters were evaluated: the CT attenuation values of the liver and spleen and the calculated LSR. The CT image analysis was performed as follows. First, VNC images of the arterial (VNCa), venous (VNCv), and delay (VNCd) phases were calculated using an AW4.7 workstation. Second, on the axial TNC images, the two reviewers independently drew regions of interest (ROIs) of 3 cm in diameter in 4/8 segments of the liver, avoiding the blood vessels and bile duct. At the same level as the liver, the two reviewers each drew an ROI in the center of the spleen. Third, all the ROIs from the TNC images were copied and pasted onto three corresponding VNC images. Finally, the average calculated from the measurement results of the two radiologists was taken as the final value. Figure 2 shows the ROIs measured on the TNC and VNC images of patients with CRFLD and without CRFLD.
Since a difference of less than 10 Hounsfield units (HU) between VNC and TNC images can be ignored, and a difference of less than 5 HU can help to further validate the effect of VNC, we calculated the percentage of cases with differences of less than 5 HU and less than 10 HU between the TNC and three VNC attenuation values of the liver and spleen (24). Also, the receiver operating characteristic (ROC) curve was plotted to evaluate the performance of the LSR calculated on the TNC and three types of VNC image for diagnosing CRFLD.
Subjective assessment
To ensure the rigor of the evaluation, 1 month later, the two reviewers subjectively assessed the quality of the TNC and three types of VNC image using the following scale: 5= excellent; 4= good; 3= fair; 2= poor; and 1= unreadable (23). Further, based on differences in the visual attenuation of the liver relative to that of the spleen, the two reviewers subjectively scored their diagnostic confidence (i.e., their confidence that they had correctly diagnosed CRFLD) with the TNC and three types of VNC image. Scores were assigned as follows: 5=100% confidence; 4=75% confidence; 3=50% confidence; 2=25% confidence; and 1=0% confidence. If the diagnostic results of the two radiologists were different, a more senior chief physician was asked to make the final diagnosis.
Radiation dose analysis
The dose length product (DLP), volume CT dose index (CTDIvol), and effective dose (ED) values were used to assess the possible dose that was spared by eliminating the unenhanced examination. The DLP and CTDIvol were presented in the dose report of the CT scan, and the ED was the product of the DLP multiplied by a conversion factor of 0.015 (25).
Statistical analysis
Continuous variables were expressed as median (interquartile range) or mean ± standard deviation. Classification variables were presented as frequency (percentage). Intra-/interclass correlation coefficients (ICCs) were used to calculate the consistency of all measurements or assessments between the two radiologists. Classification variables were analyzed using the chi-square test. The subjective assessment and the CT attenuation values of the liver and spleen and the LSR measured on the TNC images were compared to those measured on the three types of VNC image using the Wilcoxon signed-rank test and the paired t-test. Bland-Altman analysis was used to evaluate the measurement agreement of the LSR between the TNC and three types of VNC image. Differences in the CT attenuation values of the liver and spleen and the LSR between patients with and without CRFLD were calculated using the Wilcoxon Mann-Whitney U test or an independent t-test. The area under the ROC curve (AUC) value of the LSR from the TNC images was compared to those of the three types of VNC image using the DeLong test. All data were analyzed using SPSS 23.0 (IBM Corp. Armonk, NY, USA) and MedCalc 19.6 (MedCalc Software Ltd., Ostend, Belgium).
Results
Interobserver agreement
Excellent agreement was observed between the two radiologists in the measurements of all CT attenuation values of the liver and spleen (all ICC values >0.80; Table S1).
Comparison of TNC images and three types of VNC image
The average CT attenuation values of the liver on VNCa, VNCv, and VNCd images were 61.25 (57.00–65.70) HU, 62.30 (58.50–66.68) HU, and 61.70 (57.80–66.23) HU, respectively; all these values were significantly lower than those on the TNC images [63.00 (57.25–71.75) HU; P<0.001]. Additionally, the average CT attenuation values of the spleen on the three types of VNC image were also significantly lower than those on the TNC images [TNC, VNCa, VNCv, and VNCd: 58.00 (52.00–64.00) HU, 54.95 (52.78–58.68) HU, 56.00 (53.60–60.38) HU, and 55.10 (53.43–59.28) HU, respectively; P<0.05]. The average LSR on the three types of VNC image did not differ significantly from that on TNC images [TNC, VNCa, VNCv, and VNCd: 1.12±0.20, 1.11 (1.03–1.19), 1.10 (1.02–1.20), and 1.11 (1.03–1.18), respectively; P>0.05; Table 1]. Bland-Altman plots to evaluate the measurement agreement of the LSR between the three types of VNC image and the TNC images showed good consistency and no significant bias (Figure 3).
Table 1
| Parameter | Liver | Spleen | LSR |
|---|---|---|---|
| TNC | 63.00 (57.25 to 71.75) | 58.00 (52.00 to 64.00) | 1.12±0.20 |
| VNCa | 61.25 (57.00 to 65.70) | 54.95 (52.78 to 58.68) | 1.11 (1.03 to 1.19) |
| VNCv | 62.30 (58.50 to 66.68) | 56.00 (53.60 to 60.38) | 1.10 (1.02 to 1.20) |
| VNCd | 61.70 (57.80 to 66.23) | 55.10 (53.43 to 59.28) | 1.11 (1.03 to 1.18) |
| Z/t* | 7.703 | 5.588 | 0.195 |
| Z/t# | 3.956 | –2.471 | –0.584 |
| Z/t& | 5.881 | 4.607 | 0.405 |
| P value* | 0.000 | 0.000 | 0.846 |
| P value# | 0.000 | 0.013 | 0.559 |
| P value& | 0.000 | 0.000 | 0.686 |
Data are expressed as median (interquartile range) or mean ± standard deviation. *, TNC was compared with VNCa; #, TNC was compared with VNCv; &, TNC was compared with VNCd. TNC, true non-contrast; VNC, virtual non-contrast; LSR, liver-to-spleen ratio; VNCa, virtual non-contrast from the arterial phase; VNCv, virtual non-contrast from the venous phase; VNCd, virtual non-contrast from the delayed phase.

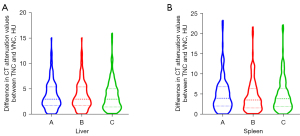

Percentages of cases with CT attenuation values with differences of less than 5 and less than 10 HU
Regarding the CT attenuation value of the liver, an intraindividual difference of less than 5 HU was observed between the TNC and three types of VNC image (VNCa, VNCv, and VNCd) in 73.13%, 73.13%, and 75.63% of cases, respectively, and an intraindividual difference of less than <10 HU was observed in 96.25%, 96.25%, and 95.63% of cases, respectively. Regarding the CT attenuation value of the spleen, an intraindividual difference of less than 5 HU was observed between the TNC and three types of VNC image (VNCa, VNCv, and VNCd) in 60.00%, 65.63%, and 63.75% of cases, respectively, and an intraindividual difference of less than 10 HU was observed in 90.00%, 89.38%, and 90.00% of cases, respectively (Table 2). The violin plots in Figure 4 show differences in the CT attenuation values of the liver and spleen between the TNC images and three types of VNC image.
Table 2
| Organ | |TNC-VNCa|, n (%) | |TNC-VNCv|, n (%) | |TNC-VNCd|, n (%) | |||||
|---|---|---|---|---|---|---|---|---|
| <5 HU | <10 HU | <5 HU | <10 HU | <5 HU | <10 HU | |||
| Liver | 117 (73.13) | 154 (96.25) | 117 (73.13) | 154 (96.25) | 121 (75.63) | 153 (95.63) | ||
| Spleen | 96 (60.00) | 144 (90.00) | 105 (65.63) | 143 (89.38) | 102 (63.75) | 144 (90.00) | ||
HU, Hounsfield units; TNC, true non-contrast; VNC, virtual non-contrast; VNCa, virtual non-contrast from the arterial phase; VNCv, virtual non-contrast from the venous phase; VNCd, virtual non-contrast from the delayed phase.
Comparison of patients with and without CRFLD
In this study, there were no significant differences in age, sex, or BMI between the CRFLD and non-CRFLD groups (all P values >0.05; Table 3). The average CT attenuation values of the liver on TNC, VNCa, VNCv, and VNCd images were all significantly lower in the CRFLD group than in the non-CRFLD group (all P values <0.001). The average LSR was also significantly lower in the CRFLD group than in the non-CRFLD group (all P values <0.001). However, the average CT attenuation values of the spleen showed no significant difference between the two groups of patients (all P values >0.05; Table 3).
Table 3
| Characteristics | Subtypes | Non-CRFLD (n=134) | CRFLD (n=26) | χ²/Z/t | P value |
|---|---|---|---|---|---|
| Clinical information | Age, years | 56.41±12.26 | 55.54±7.78 | 0.469 | 0.641 |
| Male (%) | 91 (67.91) | 17 (65.38) | 0.063 | 0.821 | |
| BMI, kg/m2 | 22.44 (20.92 to 24.00) | 21.66 (20.28 to 22.55) | –1.871 | 0.061 | |
| Liver | TNC | 65.00 (59.00 to 73.00) | 55.50 (49.50 to 61.25) | –5.256 | 0.000 |
| VNCa | 61.90 (58.48 to 66.58) | 53.90 (49.48 to 56.75) | –6.150 | 0.000 | |
| VNCv | 63.45 (60.40 to 67.98) | 54.75 (51.93 to 58.45) | –6.085 | 0.000 | |
| VNCd | 62.50 (59.45 to 66.65) | 55.00 (50.18 to 57.68) | –6.126 | 0.000 | |
| Spleen | TNC | 56.50 (51.00 to 64.00) | 59.00 (56.00 to 63.50) | –1.611 | 0.107 |
| VNCa | 55.00 (52.68 to 58.80) | 54.90 (52.90 to 58.15) | –0.405 | 0.686 | |
| VNCv | 55.85 (53.60 to 60.60) | 56.25 (53.60 to 59.20) | –0.412 | 0.681 | |
| VNCd | 55.10 (53.35 to 59.30) | 55.60 (53.35 to 59.33) | –0.259 | 0.796 | |
| LSR | TNC | 1.16±0.19 | 0.91±0.14 | 8.074 | 0.000 |
| VNCa | 1.13 (1.05 to 1.21) | 0.97 (0.91 to 1.04) | –5.620 | 0.000 | |
| VNCv | 1.12 (1.05 to 1.20) | 0.98 (0.89 to 1.04) | –5.097 | 0.000 | |
| VNCd | 1.13 (1.07 to 1.21) | 1.00 (0.90 to 1.03) | –5.661 | 0.000 |
Data are expressed as median (interquartile range), mean ± standard deviation, or n (%). CRFLD, chemotherapy-related fatty liver disease; LSR, liver-to-spleen ratio; BMI, body mass index; TNC, true non-contrast; VNCa, virtual non-contrast from the arterial phase; VNCv, virtual non-contrast from the venous phase; VNCd, virtual non-contrast from the delayed phase.
Performance of the LSR for diagnosing CRFLD

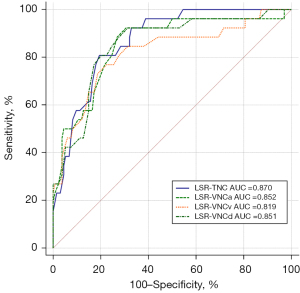

The AUC values of the LSR calculated on TNC, VNCa, VNCv, and VNCd images were 0.870 (95% CI: 0.808–0.918), 0.852 (95% CI: 0.787–0.903), 0.819 (95% CI: 0.750–0.875), and 0.851 (95% CI: 0.786–0.902), respectively (Figure 5). These values were not significantly different when compared using the DeLong test (all P values >0.05; Table 4). The cutoff values for TNC, VNCa, VNCv, and VNCd images were 0.99, 1.07, 1.04, and 1.08, respectively. The sensitivity of TNC, VNCa, VNCv, and VNCd images was 80.8%, 92.3%, 76.9%, and 92.3%, respectively, and the specificity was 80.6%, 69.4%, 77.6%, and 68.7%, respectively (Table S2).
Table 4
| Parameter in the DeLong test | Subtypes | Z value | P value |
|---|---|---|---|
| LSR-TNC | LSR-VNCa | 0.384 | 0.701 |
| LSR-VNCv | 0.960 | 0.337 | |
| LSR-VNCd | 0.432 | 0.666 | |
| LSR-VNCa | LSR-VNCv | 1.102 | 0.271 |
| LSR-VNCd | 0.036 | 0.972 | |
| LSR-VNCd | LSR-VNCv | 1.187 | 0.235 |
AUC, area under the curve; LSR, liver-to-spleen ratio; TNC, true non-contrast; VNCa, virtual non-contrast from the arterial phase; VNCv, virtual non-contrast from the venous phase; VNCd, virtual non-contrast from the delayed phase.
Results of subjective assessment
As shown in Table 5, the image quality and two reviewers’ subjective ratings of diagnostic confidence did not differ significantly between the TNC and three types of VNC image (all P values >0.05).
Table 5
| Group score | Reviewer 1 | Reviewer 2 | ICC value | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 1 | 2 | 3 | 4 | 5 | |||
| Image quality | ||||||||||||
| TNC | 0 | 0 | 0 | 34 | 126 | 0 | 0 | 0 | 31 | 129 | 0.905 | |
| VNCa | 0 | 0 | 0 | 36 | 124 | 0 | 0 | 0 | 32 | 128 | 0.852 | |
| VNCv | 0 | 0 | 0 | 35 | 125 | 0 | 0 | 0 | 34 | 126 | 0.834 | |
| VNCd | 0 | 0 | 0 | 37 | 123 | 0 | 0 | 0 | 34 | 126 | 0.874 | |
| Z/t* | –1.414 | –0.302 | – | |||||||||
| Z/t# | –1.000 | –1.000 | – | |||||||||
| Z/t& | –1.732 | –1.000 | – | |||||||||
| P value* | 0.157 | 0.763 | – | |||||||||
| P value# | 0.317 | 0.317 | – | |||||||||
| P value& | 0.083 | 0.317 | – | |||||||||
| Diagnostic confidence | ||||||||||||
| TNC | 0 | 0 | 2 | 42 | 116 | 0 | 0 | 1 | 41 | 118 | 0.901 | |
| VNCa | 0 | 0 | 3 | 43 | 114 | 0 | 0 | 2 | 42 | 116 | 0.883 | |
| VNCv | 0 | 0 | 2 | 44 | 114 | 0 | 0 | 2 | 43 | 115 | 0.880 | |
| VNCd | 0 | 0 | 5 | 39 | 116 | 0 | 0 | 4 | 38 | 118 | 0.871 | |
| Z/t* | –1.732 | –1.134 | – | |||||||||
| Z/t# | –1.414 | –0.943 | – | |||||||||
| Z/t& | –1.732 | –0.632 | – | |||||||||
| P value* | 0.083 | 0.257 | – | |||||||||
| P value# | 0.157 | 0.346 | – | |||||||||
| P value& | 0.083 | 0.527 | – | |||||||||
*, TNC was compared with VNCa; #, TNC was compared with VNCv; &, TNC was compared with VNCd. ICC, intra/interclass correlation coefficient; TNC, true non-contrast; VNCa, virtual non-contrast from the arterial phase; VNCv, virtual non-contrast from the venous phase; VNCd, virtual non-contrast from the delayed phase.
Potential dose savings
The average values of the total DLP, CTDIvol, and ED in the contrast phase were 2,410.51±650.05 mGy·cm, 46.32±6.54 mGy, and 36.16±9.75 mSv, respectively, which were significantly higher than those in the non-contrast phase (598.37±264.89 mGy·cm, 14.66±5.32 mGy, and 8.98±3.97 mSv, respectively; all P values <0.001). Elimination of the non-contrast phase from three-phase abdominal acquisition resulted in a potential dose saving of approximately 25.0%.
Discussion
This study explored whether VNC technology could serve as a replacement for TNC imaging in the diagnosis of CRFLD while reducing the radiation dose. The main findings of this study were as follows. First, the average CT attenuation value of the liver and the LSR measured on TNC and three types of VNC image were significantly lower in patients with CRFLD than in those without CRFLD. Second, the LSR showed good agreement between TNC and VNC images, with no difference in diagnostic performance observed. Finally, with VNC technology, little difference was noted in the image quality and diagnostic confidence compared to TNC imaging, while the radiation dose was reduced by approximately 25.0%.
The consistency between TNC and VNC images must be established before VNC imaging can serve as a substitute for TNC imaging in clinical practice (26). However, conflicting results have been reported by previous studies to assess the consistency of abdominal TNC and VNC images (22,27-29). Borhani et al. (22) and Laukamp et al. (27), for example, found that the average CT attenuation values of the liver or spleen did not differ significantly between TNC and VNC images. However, Haji-Momenian et al. (28) reported that the CT values of the liver and spleen on VNC images were higher than those on TNC images. Conversely, in the present study, the CT values of the liver and spleen were lower on VNC images than on TNC images, which is consistent with results reported by Choi et al. (29). This difference in results might be because VNC images can be affected by different material decomposition algorithms, scanners, and scanning schemes, which can result in variation in the elimination of the iodine component. Thus, the standard protocol is a prerequisite for VNC technology to replace TNC imaging in clinical applications.
Although there are differences between VNC and TNC images owing to variation in the elimination of the iodine component, differences of CT attenuation value less than 10 HU are negligible (24). Ananthakrishnan et al. (23) reported that 48.8% and 81.4% of patients had differences of less than 5 HU and 10 HU, respectively, between TNC and VNC images of the liver, while 48.8% and 73.8% of patients had differences of less than 5 HU and 10 HU, respectively, between TNC and VNC images of the spleen. Borhani et al. (22) found that 18.0% and 17.0% of patients had a difference of more than 10 HU between VNC and TNC images of the liver, respectively, and 22.0% and 18.0% of patients had a difference of more than 10 HU between VNC and TNC images of the spleen, respectively. Similar to these results (22,23), our study showed that more than 85.0% of patients had a difference of less than 10 HU in the CT values of the liver and spleen between VNC and TNC images. This result can be explained because VNC, based on a multimaterial decomposition algorithm, has a slight deviation in iodine removal. Moreover, in this study, the proportion of patients with a difference of more than 10 HU between the TNC and three types of VNC image was very low, indicating a negligible difference between the VNC and TNC images. Further, we also found that the image quality was good for both VNC and TNC images, showing that the VNC technology has little impact on image quality (30). We therefore recommend the use of VNC imaging as a good substitute for TNC imaging in clinical practice, as VNC technology ensures accurate and high-quality images.
The possibility of diagnosing CRFLD is important for patients undergoing CT for cancer follow-up (3). However, the high radiation dose required for the CT examination should not be ignored (31). Therefore, we used the VNC technique to evaluate CRFLD and reduce the radiation dose. We found that there were no differences in the average CT attenuation values of the spleen on TNC or VNC images between patients with and without CRFLD. However, the average CT attenuation values of the liver and the LSR on TNC and VNC images were lower in patients with CRFLD than in those without, which was consistent with the results of previous studies on NAFLD (29). In addition, two experienced abdominal radiologists performed a subjective assessment of CRFLD on the TNC and three types of VNC image and had consistent diagnostic confidence between the two types of images. This result was expected, since the VNC technique is based on a multimaterial decomposition algorithm that removes iodine from the enhancement contrast to resemble TNC images (21-23). Additionally, similar to other studies (23,24,32), our study demonstrated that VNC imaging could reduce the radiation dose by approximately 25.0%. Thus, these findings confirm the clinical applicability of VNC imaging as an alternative to TNC imaging for the diagnosis of CRFLD and its ability to reduce the radiation dose.
Abdominal CT is widely used to diagnose NAFLD (33). For the assessment of NAFLD, the LSR is clinically considered to be an accurate CT measure (16). Therefore, the LSRs measured on TNC and VNC images were used separately to evaluate CRFLD to further explore the feasibility of replacing TNC imaging with VNC imaging for the diagnosis of CRFLD. We found no significant difference in the LSR when the TNC images and three types of VNC image were compared (P values =0.846, 0.559, and 0.686, respectively). Bland-Altman analysis also showed that the LSR had good consistency between the TNC and three types of VNC image, and no obvious deviation was found. A reasonable explanation for this result is that the LSR is a relatively constant parameter for diagnosing CRFLD. It differs from the average liver CT attenuation value, which varies based on the patient and scanning equipment parameters (34). Also, we found that the LSR calculated on the TNC and three types of VNC image showed a promising performance in diagnosing CRFLD. No significant difference was detected in the AUC values with the DeLong test. According to Choi et al. (29), fatty liver could be correctly diagnosed using the LSR with AUC values greater than 0.75. Therefore, the LSR measured on VNC images is a good substitute for that measured on TNC images and could serve as a credible diagnostic tool for CRFLD. Also consistent with Choi et al.’s (29) findings, the cutoff values of the LSR on the three types of VNC image were higher than those on the TNC images because the CT values of the spleen on the TNC and three types of VNC image differed greatly from those of the liver. Therefore, appropriate cutoff values of the LSR should be used to indicate the possibility of CRFLD on VNC images.
There were several limitations to the study. First, it was a single-center study, and a larger multicenter study is warranted to verify our findings. Second, liver biopsy findings were not used for CRFLD evaluation. In the future, liver biopsy will be used as the gold standard to further validate the advantages of VNC imaging for CRFLD. Finally, the grade of CRFLD was not considered in this study; hence, the relationship between VNC and the grade of CRFLD needs to be further explored.
Conclusions
VNC images did not substantially differ from TNC images and had comparable image quality and diagnostic performance for CRFLD. They also enabled the radiation dose to be reduced by 25%. Therefore, VNC images are a suitable substitute for TNC images.
