Haglund’s syndrome: a case description

Introduction

Haglund’s syndrome is a common cause of heel pain that remains poorly understood in the clinic. Haglund’s deformity specifically refers to a bony bump (Haglund’s lesion) of the posterosuperior calcaneus. It is also commonly known as ‘retrocalcaneal exostosis’ and ‘pump bump’, terms which were first coined by Patrick Haglund in 1928 (1). Haglund’s syndrome refers to a series of symptoms caused by impingement of Haglund’s deformity, bursa, and Achilles tendon. It is difficult to differentiate between Haglund’s syndrome and other causes of heel pain. Imageology is of great value in the diagnosis of Haglund’s syndrome. Magnetic resonance imaging (MRI) can determine the site, extent, and severity of heel pain and assist with identifying the etiology due to its superior soft tissue contrast and multiplanar imaging, which is of great significance in guiding clinical diagnosis and treatment. Here, we report a case of a patient with Haglund’s syndrome, including the follow-ups after surgical treatment.

Case presentation

A 52-year-old female, with no previous surgical history, presented with bilateral heel pain, which had been present for more than 2 years and had become aggravated within the past 3 days (especially the right ankle).

Physical examination

A visible and palpable ‘pump bump’ on both posterior heels, with redness, local heat, swelling, tenderness, and a decreased range of motion was observed.

Laboratory tests

The results of laboratory tests [routine blood tests, biochemistry, coagulation, and rheumatoid factor (RF)] were within the normal ranges.

Imaging findings

Plain radiographs

On a lateral heel radiograph in a standing position (right), a parallel pitch line (PPL) was used to determine the prominence of the bony bump (Haglund’s deformity). The lower pitch line was tangent to the medial tuberosity and anterior tubercle of the calcaneus. The upper line was drawn parallel to the lower line, tangent to the posterior lip of the articular facet. A bony bump above the upper PPL was abnormal, denoted as +PPL. The projection bone cortex was intact. There was an increased density of the posterior soft tissues at the level of the Achilles tendon insertion (Figure 1A).

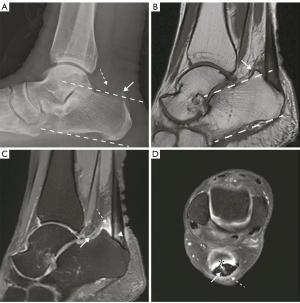

Figure 1 A 52-year-old woman with Haglund’s syndrome. (A) A lateral radiograph of the right ankle shows a bony bump (Haglund’s lesion) at the posterosuperior calcaneus (PPLs, arrow) above the upper PPLs (dashed lines). The density of the posterior soft tissues was increased (dashed arrow). (B) Sagittal T1-weighted image shows a bony bump on posterosuperior calcaneus (arrow), consistent with Haglund’s deformity. Sagittal (C) and axial (D) proton density-weighted images with fat suppression show distended retrocalcaneal bursa (dashed arrow, C; asterisk, D) and retro-Achilles bursa (dashed arrow, D), consistent with retrocalcaneal and retro-Achilles bursitis, respectively. Furthermore, the region of the insertion of the Achilles tendon shows type III tendinosis and partial tear (arrowhead, C; arrow, D). A small area of Kager’s fat pad edema is also shown (arrow, C). PPL, parallel pitch line.

MRI

A sagittal T1-weighted non-fat suppressed image of the right ankle showed a bony bump on the posterosuperior calcaneus (Figure 1B). Sagittal (Figure 1C) and axial (Figure 1D) proton density-weighted (PD) fat suppression images showed abnormally increased PD signal intensity in the region of retrocalcaneal and retro-Achilles bursae, indicating retrocalcaneal and retro-Achilles bursitis, respectively. Furthermore, the region of insertion of the Achilles tendon showed thickening (10 mm) and was partially torn. Moreover, the adjacent soft tissue showed slight edema.

The combination of the above examination results supported the diagnosis of Haglund’s Syndrome (2,3).

Treatment

The patient received surgical treatment, as conservative treatment is not effective for more than 6 months (4). A closing wedge calcaneal osteotomy was performed. For proper correction, the orientation, angle, and width of the wedge must be predefined based on the preoperative lateral radiograph (Figure 2A). The dorsal exit point of the posterior arm was at the middle of the posterior superior prominence. The plantar exit point of the posterior arm was posterior to the plantar calcaneal tubercle. The anterior arm was approximately 90° to the planta starting at the plantar calcaneal tubercle. Preserving the attachment of the Achilles tendon is important during the operation. The surgical technique was as follows. After administration of general anesthesia, an oblique incision under the lateral malleolus, about 5 cm long, was made. The ankle joint was plantar flexed, and the Achilles tendon and the bony bump were identified by sharp and blunt dissection. The surgical findings were as follows: A bony bump about 5 cm × 4 cm in size at the posterosuperior calcaneus and Achilles tendon thickening with high tension and which was partially torn at the insertion were found. The proliferative and inflammatory retrocalcaneal bursa was cleared, and then the superior aspect of the tuberosity was removed with an osteotome, until there was no obvious impact between the posterosuperior calcaneus and the Achilles tendon at dorsiflexion. The wedge calcaneal osteotomy was guided by C-arm imaging. The wedge was completed with the longer blade. Osteotomy guide pins were placed from lateral to medial for linear and parallel cuts. A threaded Kirschner wire was used to aid wedge removal, and then reduction forceps were used to connect the calcaneal tubercle closely with the calcaneal body. Under C-arm imaging guidance, two 5.5 mm (length 55 and 40 mm) titanium hollow screws (made by Double Medical Technology Inc., Xiamen, China) were cannulated in the direction of the cuboid bone and subtalar joint (Figure 2B). Postoperatively, the patient was advised to avoid weightbearing for a period of 6 weeks.

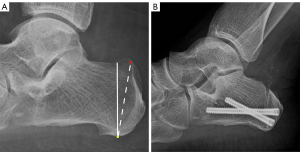

Figure 2 Preoperative lateral radiograph and radiograph 4 days after the operation (wedge calcaneal osteotomy). (A) A preoperative lateral radiograph of the right ankle, the dorsal exit point of the posterior arm (dashed line) is marked in the middle of the curve of the posterosuperior bony bump (red dot). The plantar apex point of the posterior arm is posterior to the plantar apex (yellow dot). The anterior arm (solid line) is approximately 90° to the planta starting at the plantar apex. (B) 4 days after the operation (wedge calcaneal osteotomy).

Follow-up

The patient recovered well after the operation and was walking normally 3 months later.

All procedures performed in this study were in accordance with the ethical standards of the institutional Ethics Committee of the First Hospital of Hunan University of Chinese Medicine (No. HN-LL-KY-2021-019-01) and with the Helsinki Declaration (as revised in 2013). Written informed consent was provided by the patient for publication of this case report and the accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Discussion

Haglund’s syndrome refers to a series of symptoms (Achilles tendinosis, retrocalcaneal bursitis, retro-Achilles bursitis, and a ‘pump-bump’) caused by impingement of Haglund’s deformity, bursa, and the Achilles tendon. It is a common cause of heel pain and often occurs in middle-aged women, often bilaterally. Haglund’s syndrome is clinically characterized by a prominent swelling with chronic pain and signs of inflammation, including redness, tenderness, and warmth at the posterosuperior calcaneus (5-7). However, the clinically detected pump-bump is not diagnostic of Haglund’s syndrome, as it may mimic other heel pain caused by other diseases such as systemic arthropathies, including rheumatoid arthritis and Reiter’s syndrome. Imageology is of great value for the diagnosis of Haglund’s syndrome.

Haglund’s syndrome is characterized radiographically by a bony bump with intact cortical, retrocalcaneal bursitis, retro-Achilles bursitis, Achilles tendinitis (degeneration or tear), and adjacent soft tissue edema (1).

A plain radiograph in a lateral standing position is helpful to assess the posterosuperior calcaneus bony bump of the calcaneum, the Haglund’s deformity. Some radiographic assessment methods have been proposed since Haglund’s deformity was first described in 1928. Conventional X-ray measurement methods, namely PPL, calcaneal pith angle (CPA), and Fowler-Philip angle (FPA) are commonly used in clinical practice (8-10). To date, researchers have designed and perfected many new radiographic measurements for the diagnosis of Haglund’s deformity, such as X/Y calcaneal ratio, but more research is required to validate these approaches (11,12). However, a plain radiograph does not show changes of adjacent soft tissue. An MRI allows superior soft tissue contrast and multiplanar imaging, is noninvasive, and can clearly display the shape and signal of calcaneus, Achilles tendon, and surrounding structures, and it can be helpful for diagnosis and presurgical planning (7).

Conservative treatments such as training modification (eccentric exercise), extra-corporeal shock wave therapy (ESWT), nonsteroidal anti-inflammatory medication (NSAIDs), and electrotherapy (microcurrent and microwave), are the first choices for patients with Haglund’s syndrome (13-16). Surgery is recommended when conservative treatment has been ineffective after at least 6 months (4,17,18).

In summary, Haglund’s syndrome is one of the clinical causes of heel pain but is poorly understood, and it is difficult to differentiate clinically from other conditions. It is essential to distinguish focal from systemic causes of heel pain. Imageology plays an important role in the diagnosis of Haglund’s syndrome.
