Developmental retardation of femoral head size and femoral head ossification in mild and severe developmental dysplasia of the hip in infants: a preliminary cross-sectional study based on ultrasound images

Introduction

Developmental dysplasia of the hip (DDH) is a common developmental disorder in infants, with an incidence of 1.5 to 20 per 1,000 births (1,2). DDH refers to a broad spectrum of abnormalities affecting the hip joint, ranging from dysplasia to subluxation to dislocation. Unrecognized and untreated DDH can lead to premature osteoarthritis and is responsible for up to 15–20% of hip replacements in adults under the age of 50 years (3).

For infants up to 6 months, ultrasound (US) screening of DDH using the Graf method is recommended by Chinese, European, and American imaging guidelines (4-6). There is no doubt that dislocation or decentered hips (Graf D, III or IV) should be treated immediately once diagnosed (7,8). However, it is controversial how and when to treat well-centered stable infant hips with acetabular dysplasia (Graf II) (9-11). From 6 weeks of age, if the US examination does not show that the hip has improved to Graf IIa (+) or Graf I, Graf II hips should be treated according to international DDH guidelines (5).

Regarding the influence of DDH on the development of the femoral head, Wanner et al. (12) found that the femoral head diameter (FHD) in the severe DDH (Graf D, III, or IV) group was significantly smaller than that in the normal hip group. The severe DDH femoral head growth rate was significantly slower than the normal femoral head growth rate. The ossification center of the femoral head typically appears between 4 months and 6 months of age, which is often delayed in DDH-affected hips (13). However, there have been few reports of the impact of mild DDH (Graf II) on the development of the femoral head and ossification.

According to our experience, we speculated that both mild and severe DDH would affect the development of the femoral head and the occurrence of femoral head ossification in infants, which requires appropriate treatment. Thus, we conducted this retrospective study to investigate the developmental data of femoral head and femoral head ossification in mature hips and the impact of mild and severe DDH on femoral head development. We present the following article in accordance with the STROBE reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-22-513/rc).

Methods

Participant selection

This retrospective study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and approved by the institutional review board of West China Hospital, Sichuan University (No. 2022-1372). As it was a retrospective study, the requirement for informed consent was waived. We reviewed all hip US studies performed from January 2018 to December 2019 to evaluate DDH in infants younger than 6 months in West China Hospital, Sichuan University. Participants were included in the study if they (I) had positive physical examinations, including unequal length of legs, asymmetric hip and leg creases, abnormal hip bounce, and limited hip abduction; (II) were people with a potentially high risk, such as a breech delivery and DDH family history; and (III) had a routine physical examination in 4- to 6-week-old infants. Participants were excluded if they had a pathological hip dislocation, hip trauma, congenital multiple joint contractures with hip dislocation, or involvement of the hip due to familial genetic disease.

The sample size of this study was determined to be at least 1,400 according to our previous pilot sampling and the following sample size formula of the cross-sectional study:

N=Z1−α22SD2d2[1]

(where N = sample size, Z_1-α/2 = confidence interval, SD = standard deviation, d = desired precision).

Initially, 1,450 infants were identified in our US databases, and 46 infants were excluded because of the exclusion criteria. The standard longitudinal and transverse section US images of the hip were collected for Graf type classification and femoral head ossification analysis, respectively. Finally, a total of 1,037 normal participants with 2,074 mature hips and 367 DDH participants with 456 dysplastic hips were included in this study (Figure 1).

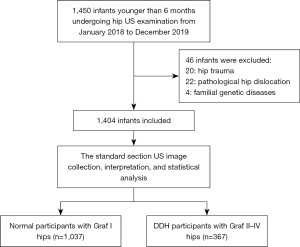

Figure 1 Flow diagram of the study design. DDH, developmental dysplasia of the hip; US, ultrasound.

Hip US examination

The Philips iU22 US system (Philips Healthcare, Bothell, WA, USA) with an L12-5 linear array transducer (5–12 MHz) was used. The participants were placed into a lateral position, with the hip joint slightly flexed. The transducer was placed on the hip joint to obtain the standard coronal section image of the hip joint with 3 essential landmarks according to the Graf method: the inferior border of the ilium, the osseous acetabular roof, and the labrum, (14). The α angle is the osseous acetabular roof angle, and the β angle is the acetabular cartilaginous angle (Figure 2). According to the Graf US classification, infant hips can be categorized into the following types: I, IIa, IIb, IIc, and D, III or IV (14). When we measured the femoral head coverage, the FHD was recorded as D (Figure 2).

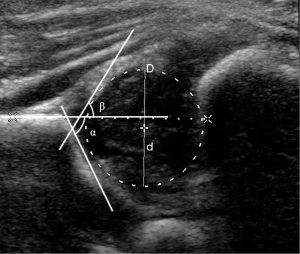

Figure 2 A hip ultrasound examination of a 2-month-old girl with Graf type I hip. The α and β angles are 63.1° and 61.0°, respectively. The diameter of the femoral head diameter circle is the femoral head diameter, which is 1.46 cm, recorded as D. d refers the distance of the line tangent to the medial femoral head to the osseous acetabular roof.

Graf type I hips were considered mature hips or the control group. All affected hips that were staged as Graf type IIa–IV were placed into the DDH group and were classified into 5 categories according to disease severity: Graf IIa (+), physiologically immature hip; Graf IIa (–), maturational deficit hip; Graf IIb, dysplastic hip; Graf IIc, heavily dysplastic hip; and Graf D, III or IV, decentered hip (5,8).

Femoral head ossification center type

All US standard transverse section images of the hip were read by 2 pediatric radiologists (reader 1 J.L., with 7 years of experience, and reader 2 H.L., with 5 years of experience) to classify the ossification center of the femoral head.

Maturity of the femoral head ossification center was classified into 4 categories according to US morphology and echo intensity: type I, no ossification; type II, punctate ossification; type III, patchy ossification without acoustic shadow; and type IV, crescent ossification with acoustic shadow (Figure 3) (15).

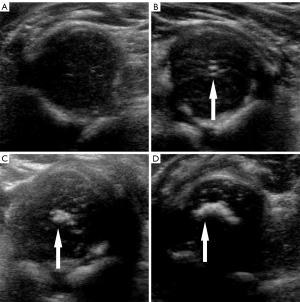

Figure 3 A hip ultrasound examination of femoral head ossification by transverse section images. (A) Type I, no ossification. (B) Type II, punctate ossification (arrow). (C) Type III, patchy ossification without acoustic shadow (arrow). (D) Type IV, crescent ossification with acoustic shadow (arrow).

Tests of intraobserver and interobserver reliability

Forty participants were randomly selected to test the intraobserver and interobserver reliability of the measurement of the α angle, the β angle, FHD, Graf classification, and femoral head ossification center type. The 2 pediatric radiologists were independent in their interpretation of US images.

Statistical analysis

SPSS v. 25.0 software (IBM Corp., Armonk, NY, USA) was used for statistical analysis. Propensity score matching for age and sex was used to match the different DDH type patients with the normal participants (1:1). Continuous variables were compared using Student’s t test or 1-way analysis of variance, categorical variables were compared using the χ² test, and ranked variables were compared using the Mann-Whitney test or the Kruskal-Wallis test. For the intraobserver and interobserver variability tests, the intraclass correlation coefficient (ICC), weighted kappa test, and Bland-Altman plots were used. P<0.05 was considered statistically significant.

Results

Participant characteristics

After hip US examination, a total of 1,037 normal participants (607 females aged 4.0±1.2 months; 430 males aged 3.9±1.2 months) with 2,074 mature hips were included in this study (Table 1). Among them, 578 participants had positive physical examinations, and 459 participants were scheduled for a routine physical examination at 4- to 6-week-old All participants were outpatients. The age stratification of the participants is shown in Table 1. The femoral head ossification center of males occurred significantly later (i.e., a lower percentage of ossification types II–IV) than that of females (P<0.001; Table 1). A total of 367 DDH participants (301 females aged 3.7±1.6 months; 66 males aged 3.3±1.8 months) with 456 dysplastic hips were included in this study (Table 2). Among them, 267 participants had positive physical examinations, and 100 participants were scheduled for a routine physical examination at 4–6 weeks. All participants were outpatients except for 2 participants who were inpatients with exomphalos. There was a total of 278 cases of unilaterally affected DDH and 89 cases of bilaterally affected DDH. The femoral head ossification center type and mean FHD of each DDH type are shown in Table 2.

Intraobserver and interobserver reliability

There was good intraobserver reproducibility of the measurement of the α angle, the β angle, and FHD, with ICCs of 0.99, 0.99, and 0.92, respectively (all P values <0.001). There was good agreement between the 2 operators in the measurement of the α angle, the β angle, and FHD, with ICCs of 0.99, 0.95, and 0.91, respectively (all P values <0.001). The weighted kappa values of the measurements of the Graf classification and femoral head ossification type were 0.90 and 0.85, respectively (both P values <0.001), which showed good reliability. The Bland-Altman plots also showed good agreement between the 2 operators in measuring the α angle, the β angle, and FHD (Figures S1-S3).

The developmental FHD and femoral head ossification center data in mature hips

We analyzed the developmental data of mature hips (Graf type I). The mean FHD and the corresponding 95% confidence interval of every age stratification are shown in Figure 4 and Table S1. As expected, the FHD of mature male hips was significantly larger than that of female hips from the age of 2 months to 6 months (all P values <0.01; Table S1). The femoral head ossification center occurred at 2–3 months in females and 3–4 months in males (Table S2; Figure 5). From 3 months to 6 months, the femoral head ossification center of males occurred significantly later (i.e., a lower percentage of ossification types II–IV) than that of females of the same age (all P values <0.05; Table S2; Figure 5). There was no significant difference in femoral head ossification center types between males and females at less than 3 months of age (all P values >0.05; Table S2).

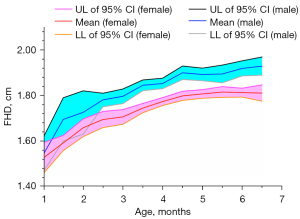

Figure 4 The developmental FHD of mature male and female hips at different ages. UL, upper limit; CI, confidence interval; LL, lower limit; FHD, femoral head diameter.

Figure 5 The developmental femoral head ossification type distribution in mature hips. (A) Femoral head ossification type distribution of male participants at different ages. (B) Femoral head ossification type distribution of female participants at different ages.

The impact of different DDH types on FHD development

There was no significant difference in FHD between Graf IIa (+) and age- and sex-matched mature hips (P=0.186; Figure 6A). However, the FHD of Graf IIa (–) was significantly smaller than that of the matched mature hips (1.64±0.15 vs. 1.72±0.13 cm; P=0.006; Figure 6A). The FHD of Graf IIb was also smaller than that of the matched mature hips (1.75±0.15 vs. 1.79±0.15 cm; P=0.006; Figure 6A). The FHD of Graf IIc was significantly smaller than that of the matched mature hips (1.65±0.18 vs. 1.73±0.15 cm; P=0.035; Figure 6A). The FHD of Graf D, III or IV was also markedly smaller than that of the matched mature hips (1.51±0.19 vs. 1.71±0.18 cm; P<0.001; Figure 6A). The results indicated marked developmental retardation of the femoral head in Graf IIa (–), IIb, IIc, D, III or IV.

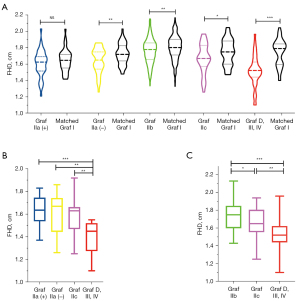

Figure 6 The impact of different DDH types on FHD development. (A) Violin plots of FHD data of the comparison of different DDH types with the corresponding matched Graf I. (B) Box plots of FHD of an intercomparison of Graf IIa (+), IIa (–), IIc, and D, III or IV. (C) Box plots of FHD of an intercomparison of Graf IIb, IIc, and D, III or IV. *, P<0.05; **, P<0.01; ***, P<0.001. FHD, femoral head diameter; NS, not significant; DDH, developmental dysplasia of the hip.

After age- and sex-matching and intercomparison of different DDH types, the developmental retardation of the femoral head in Graf D, III or IV was the worst among all the DDH types (the FHD was smaller than that of Graf IIa (+), IIa (–), IIb, or IIc; all P values <0.01; Figures 6B,6C). The FHD of Graf IIc was smaller than that of the matched Graf IIb (P=0.027; Figure 6C). Because of the mismatched age of Graf IIa and IIb, we did not compare the FHDs of these hips.

The impact of different DDH types on femoral head ossification center development

The occurrence of femoral head ossification in Graf IIa (–) was significantly delayed compared with that in matched mature hips (P=0.045; Figure 7A). There was no significant difference in femoral head ossification center types between Graf IIa (+)/IIb/IIc and the matched mature hips (Figure 7A). However, the occurrence of the femoral head ossification center in Graf D, III or IV was markedly later than that in matched mature hips (P=0.027; Figure 7A).

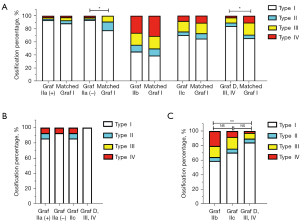

Figure 7 The impact of different DDH types on femoral head ossification center development. (A) The comparison of the femoral head ossification percentages of the different DDH types with the corresponding matched Graf I. (B) The intercomparison of the femoral head ossification types as percentages of Graf IIa (+), IIa (–), IIc, and D, III or IV. (C) The intercomparison of the femoral head ossification types as percentages of Graf IIb, IIc, and D, III or IV. *, P<0.05; **, P<0.01. NS, not significant; DDH, developmental dysplasia of the hip.

After age- and sex-matching and intercomparison of different DDH types, no significant difference in femoral head ossification center types was found among Graf IIa (+), IIa (–), IIc, and D, III or IV (Figure 7B). However, the occurrence of the femoral head ossification center in Graf D, III or IV was significantly delayed compared with that in matched Graf IIb hips (P=0.008; Figure 7C). Because of the mismatched age of Graf IIa and IIb, we did not compare the femoral head ossification center types of these hips.

Discussion

DDH is a developmental disorder and not a congenital disease. A relatively normal range of the development of the femoral head will provide more reference for the evaluation of the development of infants’ hips and as a risk factor for the surveillance of DDH. This study provided a relatively normal range of FHD of male and female infants from 1 to 6 months old. From 2 months old, the FHD of males was significantly larger than that of females at the same age. From 3 months old, the femoral head ossification center of males occurred significantly later than that of females of the same age. According to the latest World Health Organization child growth standard, boys develop later than girls at the same age, and the first-year growth rate of boys is faster than that of girls of the same age (16). The peak in growth of boys (14–15 years) is later than that of girls (12–13 years), which fits the occurrence time of the femoral head ossification center (17).

We found that the femoral head ossification center occurred at 2–3 months in females and 3–4 months in males. The ossific nucleus of the femoral head appears radiographically by age 4–6 months in normal hips. Compared with the reported ossification rate curve (18), the femoral head ossification in our study occurred much earlier. The ossification center can be seen 6–8 weeks earlier with sonography than with radiography (19), and the better feeding and nutrition condition currently also accounts for these results (20).

This study revealed the developmental retardation of the femoral head in DDH. Compared with the matched mature hips, the FHD of Graf IIa (–) hips was significantly smaller, and the occurrence of the femoral head ossification center was delayed. However, no significant developmental retardation was found in Graf IIa (+) hips. The development retardation of FHD was also found in Graf IIb, IIc, and D, III or IV hips. The occurrence of the femoral head ossification center was delayed in Graf D, III or IV hips.

A right anatomic relationship and located femoral head are necessary for acetabular and femoral head development (21). Persistent lateral hip subluxation and dislocation result in a shallow acetabulum and a mismatched femoral head. A smaller femoral head and delayed appearance of the ossific nucleus in radiographic DDH were also found in the study of Wu et al. (22) and Sugawara et al. (23). More importantly, a smaller femoral head was significantly associated with the incidence of avascular necrosis (22). The surveillance of femoral head size in DDH by US and appropriate treatment are necessary to avoid avascular necrosis or other poor outcomes. Closed reduction and subsequent spica casting are alternative, important, and widespread treatment methods for DDH (24). However, if the diagnosis of DDH is too late, closed reduction is no longer possible, as the femoral head continues growing, making repositioning into the acetabulum mechanically impossible or aggravated.

Management of type IIa/IIa (–) hips remains controversial, and these hips always carry a risk of either overtreatment or development of true hip dysplasia (25,26). If untreated, 95.3% and 84.4% of type IIa (+) and IIa (–) hips, respectively, become normal (27). Therefore, sonographic surveillance for these immature hips is conducted in some areas (10). However, according to the latest international DDH guideline, a Pavlik harness is recommended to treat Graf IIa (–) hips from 6 weeks of age (5,8). Bilgili et al. (25) found that, compared with Graf type IIa (+) hips, Graf type IIa (–) hips were less improved during natural progression and needed more treatment with a hip abduction orthosis. Omeroglu et al. (28) found that Graf Type IIa (–) had a 93% rate of treatment success by the Pavlik harness. Our study showed significant developmental retardation of Graf IIa (–) hips, which supports the appropriate treatment for these hips.

Our results showed that US is a useful and easy method for screening and early diagnosis of DDH. However, to evaluate the therapeutic effect following open and closed reduction, magnetic resonance imaging (MRI) is typically performed to confirm the concentric reduction and predict prognosis (24,29). At this point, for severe DDH that needs reduction, the US results of femoral head size and femoral head ossification may be reproduced by MRI images. We would like to continue further studying this topic.

There are several limitations of this study. First, we employed a retrospective design with no follow-up. The classification of DDH may change over time. Second, we used the Graf type I mature group as the control group. However, there was selection bias in our study. The participants in the Graf I group might have had risk factors or abnormal physical examinations. We will continue future hip studies for healthy infants. Third, we did not record the FHD or the femoral head ossification center type after treatment. Successful treatment should result in the improvement or catch-up of the femoral head. Finally, the present study was conducted in 1 medical center, and validation in different centers is needed.

In summary, we provided a relatively normal range for the development of infants’ hips from 1 to 6 months old and found significant developmental retardation of the femoral head; that is, delayed ossification and smaller size FHD, in Graf IIa (–), IIb, IIc, and D, III or IV hips. This is a preliminary study of the developmental impact of DDH on the femoral head. We will continue the follow-up study after treatment and compare outcomes of different therapeutic strategies.
