Original Article

Amide proton transfer-weighted magnetic resonance imaging for the diagnosis of symptomatic chronic intracranial artery stenosis: a feasibility study

Kunjian Chen1,2#^, Weiqiang Dou3#, Huimin Mao2, Xinyu Wang2, Xinyi Wang1, Yu Guo2, Chao Zhang1

1Department of Radiology, The First Affiliated Hospital of Shandong First Medical University & Shandong Provincial Qianfoshan Hospital, Jinan, China; 2Shandong First Medical University, Jinan, China; 3Magnetic Resonance Research, GE Healthcare, Beijing, China

Contributions: (I) Conception and design: K Chen, W Dou, H Mao, Xinyi Wang; (II) Administrative support: Xinyi Wang; (III) Provision of study materials or patients: K Chen, W Dou, Xinyu Wang, Y Guo, C Zhang; (IV) Collection and assembly of data: K Chen, W Dou, H Mao, Xinyu Wang; (V) Data analysis and interpretation: K Chen, W Dou, Xinyi Wang; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

^ORCID: 0000-0003-1749-8848.

Correspondence to: Xinyi Wang. Department of Radiology, The First Affiliated Hospital of Shandong First Medical University & Shandong Provincial Qianfoshan Hospital, No. 16766 Jingshi Road, Jinan 250014, China. Email: wxy_88@163.com.

Background: Hemodynamic changes after intracranial artery stenosis (ICAS) or occlusion are important causes of metabolic alterations in tissue. This study aimed to explore the feasibility of using amide proton transfer-weighted (APTw) magnetic resonance imaging (MRI) to diagnose patients with symptomatic chronic ICAS based on pH variations caused by metabolite damage.

Methods: Sixty-seven patients with clinically confirmed unilateral anterior circulation ICAS (≥70% arterial narrowing) and 20 healthy volunteers were recruited for the study. Each patient underwent an MRI examination including a T2 fluid-attenuated inversion recovery (T2-FLAIR) sequence, spin-echo echo-planar diffusion-weighted imaging (DWI), three-dimensional pseudo-continuous arterial spin labeling (pcASL), and an APTw sequence. Areas with abnormal perfusion and APTw effects were defined as perfusion/pH matched areas; areas with abnormal perfusion but normal APTw effects were defined as perfusion/pH unmatched areas; the contralateral mirror areas were defined as the normal areas. Regions of interest (ROIs) were selected within these three areas, and the corresponding apparent diffusion coefficient (ADC), cerebral blood flow (CBF), and magnetization transfer ratio asymmetry (MTRasym) were measured.

Results: High intraclass correlation coefficient (ICC) values (0.78≤ ICCs ≤0.97; P<0.05) were observed between the two radiologists who independently performed the data analysis. Significant differences were found in CBF and MTRasym between the perfusion/pH matched, perfusion/pH unmatched, and normal areas [F(2,64)=288.5, 163.5; both P<0.05], but the ADC values were comparable between the three [F(2,64)=2.11; P>0.05]. Spearman correlation analysis revealed no significant correlation between changes in MTRasym and CBF (P>0.05). Finally, APTw showed a robust performance in diagnosing symptomatic chronic ICAS, with an area under the receiver operating characteristic curve (ROC) of 0.953 (sensitivity 97.01%; specificity 85.07%; cut-off value 1.005%).

Conclusions: The present study has demonstrated that metabolic alterations are present in patients with symptomatic chronic ICAS. Our findings illustrate that APTw imaging could potentially serve as an effective method to provide a robust clinical diagnosis for patients with symptomatic chronic ICAS.

Keywords: Intracranial artery stenosis (ICAS); amide proton transfer-weighted (APTw); metabolic changes; intracellular hydrogen

Submitted Oct 31, 2021. Accepted for publication Jul 14, 2022.

doi: 10.21037/qims-21-1063

Introduction

Intracranial artery stenosis (ICAS) is the primary cause of ischemic events globally. Clinically identified ICAS with a previous transient ischemic attack (TIA) and infarction is known as symptomatic ICAS (1,2). Patients with moderate and severe ischemic stroke are characterized by acute onset, severe symptoms, and high mortality and disability, so these patients have been extensively investigated in previous studies (3,4). In chronic cases, symptomatic ICAS often produces transient or slight neurological deficits (such as recurrent TIA or mild ischemic stroke), and is considered to be an independent predictor of death, a high-risk factor for stroke recurrence, and a priority for secondary prevention (5,6). Therefore, symptomatic chronic ICAS is attracting increasing attention from researchers.

Several imaging modalities have been used to diagnose symptomatic chronic ICAS. Computed tomography (CT) or magnetic resonance imaging (MRI) can reflect morphological changes in brain tissues after infarction. Diffusion-weighted imaging (DWI), a widely applied functional MRI technique for diffusivity measurement in clinic, is particularly sensitive to (sub-)acute ischemic stroke but is prone to misdiagnosing patients with minor stroke in the non-acute stage or TIA (7,8). Magnetic resonance angiography (MRA) and CT angiography (CTA) can display the degree and location of vascular stenosis; however, they are not capable of assessing the state of cerebral parenchymal ischemia (9,10). Also, although perfusion MRI (i.e., perfusion-weighted imaging) can quantitatively measure blood perfusion in tissue and has been proven to have high clinical value in patients with infarction and DWI-negative TIA, this technique frequently overestimates vascular events (11).

Metabolic damage is a key factor for ICAS stroke and may introduce changes before cerebral infarction (12,13). An effective indicator of metabolic alterations caused by hemodynamic changes is pH (14). During ICAS, the body maintains the normal aerobic metabolism through compensatory mechanisms, such as arteriole expansion and collateral circulation opening, and cellular oxygen uptake increases. When stenosis is aggravated, the perfusion pressure decreases beyond its compensatory limit and cell metabolism is damaged, eventually leading to tissue injury and ischemic stroke (15). The pH values of brain tissue change according to the cell’s metabolic state after experiencing reduced blood perfusion. Therefore, tissue pH values may be a biological marker of metabolite damage after ischemia (16).

Magnetic resonance spectroscopy (MRS) can measure changes in metabolite concentration in the infarct area and indirectly reflect the pH of brain tissues. However, its clinical application is not wide owing to its intrinsic low resolution and sensitivity (17). As a promising alternative, non-invasive amide proton transfer-weighted (APTw) imaging, which relies on the proton exchange between amide compounds and bulk water, is reportedly sensitive to intracellular pH changes (18,19). For every 0.5 pH unit change in the tissue, the change in the amide proton transfer rate can reach 50–70% (20,21). Because of its high sensitivity to pH variation, APTw imaging has been applied in the diagnosis of (sub-)acute cerebral infarction (22,23). In patients with acute stroke, according to the degree of acidification, the ischemic tissue allows for the stratification of fine tissue damage in the infarct core, ischemic penumbra, and benign hypoperfusion area, which is crucial for revascularization and medical treatment decision-making (24,25). However, whether pH-sensitive APTw imaging can reflect the corresponding changes in metabolism in patients with chronic ICAS has yet to be established.

Therefore, the main goal of this study was to investigate the feasibility of using APTw MRI imaging to diagnose patients with symptomatic chronic ICAS based on pH variations caused by metabolite damage. We present the following article in accordance with the STARD reporting checklist (available at https://qims.amegroups.com/article/view/10.21037/qims-21-1063/rc).

Methods

Patients

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This prospective study was approved by Shandong Province Qianfoshan Hospital Review Board (No. S986), and written informed consent was obtained from all the participants.

Sixty-seven patients were recruited consecutively to the study. They included 41 men and 26 women, aged 56.49±11.27 years old, who were diagnosed with unilateral chronic ICAS (≥70% arterial narrowing) or occlusion by digital subtraction angiography (DSA) or MRA between September 2020 and July 2021 in the Department of Neurology, First Affiliated Hospital of Shandong First Medical University (Figure 1). The patient inclusion criteria were as follows: (I) a DSA or MRA diagnosis of unilateral anterior ICAS (≥70% arterial narrowing) or occlusion (including an intracranial segment of the internal carotid artery, middle cerebral artery, and anterior cerebral artery); (II) minor ischemic stroke or TIA, with ischemic symptoms corresponding to the vascular lesion distribution; (III) an interval of ≥4 weeks between the first symptom onset and the examination; and (IV) other intracranial lesions, such as cerebral hemorrhage, were excluded by CT/MRI examination. Patients with the following conditions were excluded: (I) bilateral anterior circulation vascular lesions; (II) complications with severe posterior circulation or extracranial vascular lesions; (III) a large area of acute or subacute infarcts; and (IV) contraindications to MRI examination. Various clinical variables were collected from the patients, including blood pressure and their history of diabetes, smoking, and drinking.

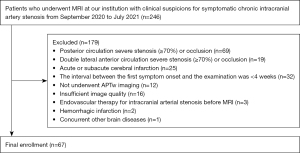

Figure 1 Study population flow diagram. MRI, magnetic resonance imaging; APTw, amide proton transfer-weighted.

In addition, 20 healthy volunteers (11 men and 9 women, aged 55.40±10.15 years old) were recruited, and their basic clinical data (sex, age, blood pressure, and history of diabetes, smoking, and drinking) were acquired. The lack of stenosis was confirmed by MRA and the lack of obvious abnormalities or the presence of only small lacunar infarcts was confirmed by routine MRI. Further, none of the healthy volunteers had a brain injury or any neurological, psychiatric, metabolic diseases, or other systemic disease that may affect the nervous system.

Acquisition of MRI images

All MRI examinations were performed using a 3.0T MRI scanner (GE Discovery 750, USA) with a 32-channel head coil. In addition to routine MRI imaging [T2 fluid-attenuated inversion recovery (T2-FLAIR) and DWI], three-dimensional pseudo-continuous arterial spin labeling (3D-pcASL) and APTw imaging were performed on each patient. The healthy volunteers only underwent APTw imaging. Two-dimensional fast-spin-echo (FSE)-based T2-FLAIR was first acquired in the axial plane. The scan parameters were as follows: field of view (FOV) =240 mm × 240 mm, slice thickness =5 mm, repetition time (TR)/echo time (TE) =8,000/88.4 ms, inversion time =2,344 ms, matrix size =320×256, number of slices =20, and scanning time =1 min 44 s. A two-dimensional spin-echo echo-planar-imaging (EPI)-based sequence was used for DWI in the axial plane. The scan parameters were as follows: FOV =240 mm × 240 mm, slice thickness =5 mm, TR/TE =3,000/65.6 ms, matrix size =160×160, b=0, 1,000 s/mm2, number of slices =20, and scan time =24 s. Three-dimensional FSE-based pcASL imaging was used to measure brain perfusion. The following scan parameters were applied: FOV =240 mm × 240 mm, slice thickness =4 mm, TR/TE =4,632/10.5 ms, matrix size =128×128, labeling time =1,450 ms, post-labeling delay (PLD) =1,525 ms, number of slices =36, and scan time =4 min 29 s. For APTw imaging, a spin-EPI-based sequence was used with three consecutive axial slices centered on the layer of the largest hypoperfusion area for the patients with chronic ICAS and the corresponding three axial slices for the healthy volunteers. B1 saturated images were acquired with 49 off-resonance frequencies ranging from –600 to 600 Hz in increments of 25 Hz, and another three images were acquired at 5,000 Hz but without B1 saturation. The applied saturation B1 power was 2 µT and the saturation duration 2,000 ms. In this study, ±3.5 ppm frequency off sets were acquired, a Fermi shaped radio-frequency pulse was used for chemical exchange saturation transfer (CEST). The other scan parameters were: FOV =240 mm × 240 mm, slice thickness =6 mm, TR/TE =3,000/21.9 ms, matrix size = 128×128, number of slices =3, and total scan time =14 min 15 s.

Data post processing

All data were analyzed using vendor-provided DWI, 3D-pcASL, and APTw post-processing software on the GE workstation 4.6. The apparent diffusion coefficient (ADC) for DWI imaging, 3D-pcASL derived cerebral blood flow (CBF) mapping, and magnetization transfer ratio asymmetry (MTRasym) for APTw imaging were obtained.

The DWI-derived ADC was calculated using the following equation (26):

Sb/S0=exp(−bADC)

where S0 is the signal intensity at a b-value of 0, and Sb is the signal intensity at a b value of 1,000 s/mm2.

The 3D-pcASL-derived CBF mapping was determined by applying the following formula (27):

f=λ2αT1b(1−e−τT1b)(Sctrl−S1bl)(1−e−tsatT1g)SrefewT1b

where f is the flow multiplied by a scaling factor [6,000] and converted to physiological units of mL/100 g/min; S is the acquired signal on the control (ctrl), labeled (1bl) signal, or the reference image; T1b and T1g are the T1 values of blood and gray matter, respectively (T1b=1.6 s; T1g=1.2 s); α is the labeling efficiency (α=0.85); λ is the cortex-blood partition coefficient (λ=0.9); and τ and ω represent the labeling duration (1,450 ms) and PLD time (1,525 ms), respectively.

Before generation of the APTw imaging contrast, the B0 map was first calculated with off-resonance frequencies of –200 to 200 Hz based on the water saturation shift reference (WASSR) method (28) for B0 inhomogeneity correction. Then, MTRasym was calculated using the following formula (29):

MTRasym(%)=(S−Δω−SΔω)S0

where S−∆ω and S∆ω correspond to the water signals at negative and positive frequency offsets, respectively, and S0 is the mean level over three imaging cycles without saturation at 5,000 Hz. To quantify the APTw effect, ω was set to 3.5 ppm.

Regions of interest (ROIs) analysis

Two radiologists ( Xinyi Wang and Dong Dong), each with more than 3 years of diagnostic experience in cerebrovascular disease, independently performed the data analysis. CBF and MTRasym images were fused on axial T2-FLAIR images to delineate the abnormal signal area. On the slice with the low perfusion area, areas with abnormal perfusion and APTw effects were defined as perfusion/pH matched areas; areas with abnormal perfusion but normal APTw effects were defined as perfusion/pH unmatched areas; the contralateral mirror areas were the normal areas (Figure 2). Three ROIs of comparable area (0.3–0.4 cm2) were chosen by each radiologist accordingly. These ROIs were further copied onto the ADC, CBF, and MTRasym maps, and the two radiologists obtained the corresponding mean ADC, CBF, and MTRasym values for further statistical analyses.

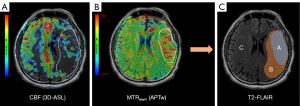

Figure 2 Regional division diagram. (A) CBF and (B) MTRasym images were fused on axial T2-FLAIR images to delineate the abnormal signal area. (C) Axial T2-FLAIR image showing the relationship between CBF and MTRasym abnormal regions. Orange represents abnormal CBF regions; blue represents abnormal MTRasym regions. A shows the perfusion/pH matched region; B shows the perfusion/pH unmatched region; C shows the normal region. CBF, cerebral blood flow; MTRasym, magnetization transfer ratio asymmetry; T2-FLAIR, T2 fluid-attenuated inversion recovery sequence.

To investigate the difference in the APTw effect between patients with chronic ICAS and healthy volunteers, 20 of the 67 patients were randomly selected based on the random sampling method using the IBM SPSS 23.0 statistical software (Armonk, NY, USA). Their basic clinical information (sex, age, blood pressure, and their history of diabetes, smoking, and drinking) was matched to that of the 20 healthy volunteers. Because certain differences in APTw effects occur between the left and right cerebral hemispheres in healthy subjects (30), the average APTw effect over the bilateral cerebral hemispheres should be used as a normal reference to exclude the influence of region-specific APTw signals. Therefore, based on the ROIs drawn in the patient group, the bilateral areas in healthy volunteers were selected according to the MTRasym maps, and the mean MTRasym values for both sides were calculated for statistical analysis.

Statistical analysis

All statistical analyses were performed in GraphPad Prism 9 (GraphPad Software, Inc., La Jolla, CA, USA) and IBM SPSS 23.0 (Armonk, NY, USA). The intraclass correlation coefficient (ICC) was used to evaluate the inter-observer agreement for ADC, CBF, and MTRasym measures between the two radiologists, with ICC >0.75 considered to show good reproducibility. The Kolmogorov-Smirnov test was used to test the normality of continuous variables. Continuous variables with normal distribution were expressed as the mean ± standard deviation (SD). A paired t-test was used to compare differences in MTRasym between the healthy volunteers and patients’ normal region. One-way analysis of variance (ANOVA) was used to compare differences in ADC, CBF, and MTRasym between the matched, unmatched, and normal regions. A post hoc least-significant difference test was applied to further the compare parameter differences of each group in pairs. Non-normally distributed continuous variables were represented as the median and interquartile range (IQR) and were analyzed using the Wilcoxon rank-sum test. Enumeration data were expressed as n (%) and tested using the χ2 test. Spearman correlation analysis was used to analyze the correlation between CBF and MTRasym in the matched area. Receiver operating characteristic curve (ROC) analysis and the area under the ROC curve (AUC) were used to evaluate the diagnostic efficacy of APTw-derived MTRasym for symptomatic chronic ICAS. All statistical tests were bilateral, and the significant threshold was set at P<0.05.

Results

Baseline data summary

A total of 67 patients (41 men, aged 53.90±11.98 years old; 26 females, aged 60.19±8.62 years old) were included in our study (Table 1). Of the patients, 9 were diagnosed with internal carotid artery lesions, 48 with middle cerebral artery lesions, 1 with an anterior cerebral artery lesion, and 9 with internal carotid artery lesions combined with middle cerebral artery lesions. The ICAS or occlusion etiologies were as follows: thrombus, n=25; atherosclerotic stenosis, n=36; intermural hematoma, n=3; arterial dissection, n=1; and smoke syndrome, n=2. On DWI, 23 patients showed microinfarcts in the disordered vessel supply area, and 44 patients showed no definite infarction lesions with recurrent and intermittent TIA attacks. The median interval from the first ischemic stroke or TIA to the examination was median 3 (IQR 1 to 24) months.

Table 1

Baseline patient characteristics (n=67)

Variable Value
Age (mean ± SD) (year) 56.49±11.27
Male/female 41/26
Interval time [median (IQR)] (months) 3 [1–24]
Risk factors, n (%)
   Hypertension 43 (64.18)
   Diabetes 15 (22.39)
   History of smoking 23 (34.33)
   History of drinking 22 (32.84)

SD, standard deviate; IQR, interquartile range.

Inter-observer agreement analysis

The ICC analysis revealed high inter-observer agreement between the two radiologists in their measurements of ADC (0.78), CBF (0.95), MTRasym (0.97), and the healthy volunteers’ MTRasym (0.93).

Comparison of APTw effects between patients and healthy volunteers

Twenty patients (first: 14 male/6 female, aged 58.10±10.32 years old; second: 13 male/7 female, aged 53.75±12.37 years old) were randomly selected and compared with 20 healthy volunteers (11 male/9 female, aged 55.40±10.15 years old). The χ2 test showed no significant difference in baseline characteristics between the patients and the healthy volunteers (P>0.05). Using paired t-test analysis, the MTRasym of the contralateral normal region of randomly selected patients was comparable with the mean MTRasym of the bilateral brain parenchyma of the healthy controls (P>0.05; Table 2).

Table 2

Baseline characteristics and MTRasym of normal brain regions in healthy volunteers and patients with ICAS

Variable First Second
Patients Healthy volunteers t/c2 P value Patients Healthy volunteers t/c2 P value
Age (mean ± SD) (year) 58.10±10.32 55.40±10.15 0.84 0.41 53.75±12.37 55.40±10.15 0.45 0.66
Male/female 14/6 11/9 0.96 0.33 13/7 11/9 0.42 0.52
Risk factors, n [%]
   Hypertension 13 [65] 10 [50] 0.92 0.34 15 [75] 10 [50] 2.67 0.10
   Diabetes 4 [20] 3 [15] 0.17 0.68 3 [15] 3 [15] 0.00 >0.99
   History of smoking 9 [45] 8 [40] 0.10 0.75 8 [40] 8 [40] 0.00 >0.99
   History of drinking 9 [45] 10 [50] 0.10 0.75 9 [45] 10 [50] 0.10 0.75
MTRasym (mean ± SD) (%) 0.72±0.26 0.68±0.21 0.56 0.59 0.63±0.28 0.64±0.20 0.25 0.81

MTRasym, magnetization transfer ratio asymmetry; ICAS, intracranial artery stenosis.

Quantitative analysis of DWI, 3D-pcASL and APTw imaging of patients with ICAS

One-way ANOVA revealed significant differences in the CBF and MTRasym values between the perfusion/pH matched, unmatched, and normal areas [F(2,64)=288.5, 163.5; both P<0.0001]; however, the ADC values were comparable between the areas [mean: (2.74±0.14)×10−3vs. (2.69±0.13)×10−3vs. (2.72±0.13)×10−3 mm2/s, F(2,64)=2.11, P>0.05; Table 3]. In the further post hoc least-significant difference test, the matched side showed significantly lower CBF (20.51±6.68 mL·100 g−1·min−1) than the unmatched side (26.36±6.77 mL·100 g−1·min−1) and the contralateral side (54.79±12.00 mL·100 g−1·min−1; all P<0.0001). Higher MTRasym was found in the matched side (1.38%±0.36%) than in the unmatched (0.67%±0.19%) and contralateral (0.69%±0.20%) sides (all P<0.0001). However, the difference between the unmatched and contralateral sides was not statistically significant (P=0.89; Figure 3).

Table 3

ADC, CBF and MTRasym values in matched, unmatched, and normal areas of patients with ICAS

Variables Matched area (mean ± SD) Unmatched area (mean ± SD) Normal area (mean ± SD) F P value
ADC (×10–3 mm2/s) (b=1,000 s/mm2) 2.74±0.14 2.69±0.13 2.72±0.13 2.11 0.12
CBF (mL·100 g−1·min−1) 20.51±6.68 26.36±6.77 54.79±12.00 288.5 <0.0001
MTRasym (%) 1.38±0.36 0.67±0.19 0.69±0.20 163.5 <0.0001

ADC, apparent diffusion coefficient; CBF, cerebral blood flow; MTRasym, magnetization transfer ratio asymmetry; ICAS, intracranial artery stenosis.

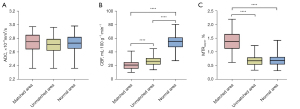

Figure 3 Box-plot analysis. Group comparisons of (A) ADC, (B) CBF, and (C) MTRasym among matched, unmatched, and normal areas using box-plot analysis (significant difference: ****, P<0.0001). Areas with abnormal perfusion and APTw effects were defined as perfusion/pH matched areas; areas with abnormal perfusion but normal APTw effects were defined as perfusion/pH unmatched areas; the contralateral mirror areas were defined as the normal areas. ADC, apparent diffusion coefficient; CBF, cerebral blood flow; MTRasym, magnetization transfer ratio asymmetry; APTw, amide proton transfer-weighted.

Correlation analysis between CBF and MTRasym in the matched areas of patients with ICAS

Spearman correlation analysis was applied to investigate the relationship between CBF and MTRasym changes in the perfusion/pH matched region in patients with ICAS. No significant correlation was found between the changes in CBF and MTRasym (CBF and MTRasym, r=−0.14, P=0.26; CBF(/normal-matched/) and MTRasym (/normal-matched/), r=0.03, P=0.81; CBF(normal/matched) and MTRasym(normal/matched), r=−0.03, P=0.78; Figure 4).

Figure 4 Spearman correlation analysis. Spearman correlation analysis between changes in (A) CBF and MTRasym, (B) CBF(/normal-matched/) and MTRasym(/normal-matched/), and (C) CBF(normal/matched) and MTRasym(normal/matched). MTRasym(/normal-matched/): the absolute difference in MTRasym between the normal side and the perfusion/pH matched area. MTRasym (normal/matched): MTRasym ratio of normal side to perfusion/pH matched area. CBF(/normal-matched/): the absolute difference in CBF between the normal side and the perfusion/pH matched area. CBF(normal/matched): CBF ratio of normal side to perfusion/pH matched area). CBF, cerebral blood flow; MTRasym, magnetization transfer ratio asymmetry.

Diagnostic ROC analysis of APTw imaging for symptomatic chronic ICAS

The ROC analysis confirmed the robust clinical efficacy of APTw-derived MTRasym for diagnosing symptomatic chronic ICAS, with a high AUC (0.953) and sensitivity and specificity of 97.01% and 85.07%, respectively (Figure 5). The cut-off MTRasym value was 1.005%.

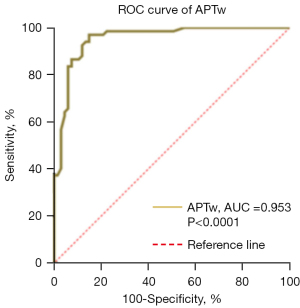

Figure 5 Using ROC curve analysis, APTw-derived MTRasym showed a robust performance in diagnosing symptomatic chronic ICAS, with a high AUC of 0.953, sensitivity of 97.01%, and specificity of 85.07%. The corresponding MTRasym cut-off value was 1.005%. ROC, receiver operating characteristic; APTw, amide proton transfer-weighted; AUC, area under curve; MTRasym, magnetization transfer ratio asymmetry; ICAS, intracranial artery stenosis.

Discussion

This study investigated the clinical value of using intracellular pH-sensitive APTw imaging to reflect metabolite damage-induced pH variation in chronic ischemic brain tissues for the diagnosis of patients with symptomatic chronic ICAS. The intracranial arteries mainly include the anterior and posterior circulation systems. Bilateral cerebral hemispheres are mainly supplied by the anterior circulation, specifically the middle cerebral artery. Therefore, in this study, we chose patients with unilateral anterior circulation artery stenosis or occlusion. Aside from DWI and 3D-pcASL, we performed APTw imaging to measure the hypoperfusion area of brain tissues caused by unilateral anterior circulation artery stenosis or occlusion. The resultant ADC, CBF, and MTRasym were quantitatively compared between the affected and normal sides to analyze the chronic ischemic tissues further. We found no abnormal ADC in the matched, unmatched, and normal areas of patients, but abnormal CBF and MTRasym levels were found in diseased vessels.

Interestingly, the abnormal CBF and MTRasym areas were not perfectly matched. In the matched area, CBF decreased, and MTRasym increased, but no significant correlation was found between the changes in CBF and MTRasym. In the unmatched area, CBF also decreased, but MTRasym in this area was not statistically different from that in the normal area (Figure 6). Further, ROC analysis demonstrated the robust performance of APTw imaging in diagnosing symptomatic chronic ICAS, with high AUC, sensitivity, and specificity values.

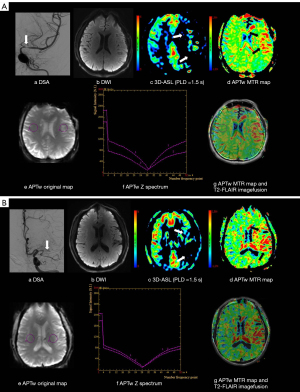

Figure 6 Typical cases. (A) A 49-year-old man with severe stenosis of the left MCA M1. (B) A 56-year-old man with an occlusion in the left MCA [a, white arrow; b, DWI (b=1,000 s/mm2)] showed no obvious abnormal signals. (c) Lower perfusion in the ipsilateral side than in the contralateral side; A-CBFave =20.48 vs. 38.16 mL·100 g−1·min−1; B-CBFave =19.32 vs. 40.72 mL·100 g−1·min−1 (white arrows). (d) High APTw value area; A-MTRasym =1.41% vs. 0.68%; B-MTRasym =1.47% vs. 0.54% (black arrows). (e) APTw original map; (f) APTw Z spectrum, MR units represent signal intensity, images (im) represent the corresponding number frequency point; (g) APTw MTR map and T2-FLAIR image fusion. DSA, digital subtraction angiography; DWI, diffusion-weighted imaging; 3D-ALS, three-dimensional arterial spin labeling; PLD, post-labeling delay; APTw, amide proton transfer-weighted; MTR, magnetization transfer ratio; T2-FLAIR, T2 fluid-attenuated inversion recovery sequence; MCA, middle cerebral artery; CBF, cerebral blood flow; MTRasym, magnetization transfer ratio asymmetry.

In our study, tissue perfusion in the affected side was obviously reduced compared with that in the contralateral region, and APTw imaging in partial hypoperfusion areas (perfusion/pH matched regions) showed a high signal. In ischemic disease, Zhou et al. (19) showed that the exchange rate of amide protons was highly sensitive to pH changes. The significant change in the high APTw signal in our study could be attributed to the elevated pH level in the lesion. Sappey-Marinier et al. (31) showed that, for patients with chronic ischemic stroke, the pH was higher in the stroke group than in the control group (7.25±0.07 vs. 7.03±0.04). A recent study by Seiler et al. (32) found that, before the carotid intervention, T2' was significantly decreased in hypoperfusion areas ipsilateral to the stenosis relative to the contralateral side, and intracellular pH and T2' showed a significant negative relationship. With these findings, it can be speculated that the pH levels in hypoperfusion areas ipsilateral to the stenosis are increased, which was consistent with our results. However, the mechanism of tissue alkalosis in the brain after hypoxia-ischemia has not been fully elucidated. Studies in the literature tend to agree that this phenomenon is caused by an active compensatory mechanism after tissue acidosis or a relatively high perfusion state after necrosis (33,34).

In this study, a simple index of MTRasym, which has been widely applied in clinical CEST studies, was calculated to assess the APT effect quantitatively. However, in addition to the pure APT effect, other components, including magnetization transfer (MT), direct saturation (DS) as well as relayed nuclear Overhauser enhancement (rNOE), may also contribute to MTRasym at 3.5 ppm, and the effect of rNOE is sensitive to intracellular pH level (35). Nowadays, multiple advanced post-processing methods for CEST effect analysis have been developed to separate pure APT signals from other signals. A novel method called extrapolated semisolid MT reference can remove the rNOE signal and obtain the APT signal (36). Another apparent exchange-dependent relaxation method takes into account the contribution of the T1 relaxation time while quantifying the CEST effect (37). With these advantages, our follow-up study may investigate the relationship between pH variation and the APT effect in the hypoperfusion areas of patients with symptomatic chronic ICAS.

Neither pH nor metabolite levels were measured directly in our study. Mapping pH based on CEST could provide a quantitative pH level for the abnormal metabolic region. Based on analysis of CEST effects under different radio frequency irradiation power levels (38), a novel ratiometric pH MRI method has been proposed to generate pH mapping that can be used for glioma pH quantification, skeletal muscle, and renal pH mapping (39-41). We will consider the application of pH mapping in our follow-up study.

Compared with previous MRS studies on metabolic changes in chronic cerebral infarction, our study did not find obvious signs of infarction in ADC maps. This result may be due to small and scattered ischemic infarction cells in the hypoperfusion area when no marked lesions had yet formed. A previous 1H-MRS study (42) found that N-acetyl aspartate decreased and choline increased in the brain tissues of patients with a non-infarcted internal carotid artery, middle cerebral artery severe stenosis or occlusion. The results confirmed the presence of brain cell damage in non-infarcted areas. In acute ischemic stroke studies, the APTw/DWI mismatch zone around the infarct core, known as the ischemic penumbra, was key to clinical treatment and prognosis (43-45). Accordingly, we speculate that tissues in the abnormal pH region might have metabolic and electrophysiological abnormalities but are not yet dead, which can survive or progress to complete necrosis. However, the specific mechanism underlying these findings needs to be further validated. Nevertheless, these tissues with metabolic abnormalities may be a potential cause of ischemic stroke symptoms and may increase the risk of ischemic stroke.

Lower tissue perfusion is the fundamental reason for changes in the cellular pH level. The APTw signal intensity has been reported to reflect the pH-weighted characteristics of ischemic tissue at different stages or time points (23,44). Therefore, we evaluated the relationship between CBF and MTRasym changes in the perfusion/pH matched region. However, no significant correlation was observed. A previous study showed that although a decrease in CBF caused a change in the tissue pH, the tissue pH did not change with the CBF after ischemia, which may be related to the dynamic change in the tissue pH value with the extension of ischemia time (16). In the early stage of ischemic injury, different processes occur in the affected brain tissues, including a sharp decrease in blood flow, insufficient tissue perfusion, aerobic metabolic disorder, increased anaerobic metabolism, and lactic acid accumulation. These events eventually lead to a decrease in pH. Low pH in cells may cause tissue damage by activating destructive enzymes such as proteases and lipases (12). Previous APTw and MRS studies (46-48) have confirmed an increase in lactic acid, a decrease in MTRasym, and neuron damage in the acute infarction area. With the increase in the ischemic injury time, the acidification gradually eased and the pH increased. Zöllner et al. (33) showed that the pH of subacute stroke tissue was significantly increased compared to that of the contralateral healthy tissue. Song et al. (23) reflected the dynamic pH evolution in post-infarction tissue by grouping stroke patients according to onset time. Also, alkalosis in the later stage of metabolic tissue injury is related to various mechanisms, and tissue sensitivity to ischemia differs. Therefore, we were unable to establish a clear correlation between CBF and MTRasym changes.

In this study, we found that the hypoperfusion area was larger than the APTw hyperintensity area on the lesion side (the perfusion/pH unmatched area). In acute ischemic infarction studies, similar mismatched areas have been called “benign hypoperfusion areas” (24,25). The progression from hemodynamic damage to metabolic alterations can be divided into three stages: 0, I, and II (15). In stage 0, the cerebral vessels maintain a constant CBF through small artery self-regulation. With a further decrease in perfusion pressure, CBF starts to decrease when it exceeds the autoregulation limit of vasodilation. In stage I, brain cells begin to obtain enough oxygen to maintain their own physiological and metabolic needs by increasing the oxygen extraction fraction. Positron emission tomography and quantitative susceptibility mapping (QSM) studies have confirmed the existence of this compensatory process (49-52). In addition, the collateral circulation pathway in the brain gradually opens, providing an alternative vascular pathway for ischemic tissue (53,54). In stage II, the body’s reserve capacity is exhausted, and the ischemic tissue shows metabolic alterations and changes in pH. In severe cases, ischemic stroke eventually occurs. Therefore, despite the fluctuating cerebral perfusion and oxygen saturation in the perfusion/pH unmatched area, the tissue pH is well regulated under normal physiological conditions and the APTw signal is at a normal level.

Currently, angiography imaging techniques such as CTA, MRA, or DSA are widely used in the clinical diagnosis of ICAS or occlusion. In recent years, high-resolution vascular wall MRI, with its unique imaging mode, has gradually demonstrated its diagnostic value in assessing stenosis etiology and predicting stroke risk (55,56). However, the damage to the blood flow rate is not necessarily related to the degree of arterial stenosis, and collateral connections and compensation mechanisms between cerebral arteries play an important role (57,58). Compared with these imaging methods, perfusion imaging, such as 3D-pcASL, can more directly and sensitively reflect hemodynamic changes in cerebral artery stenosis or occlusion. However, in patients with severe chronic ICAS, 3D-pcASL may overestimate the size of the hypoperfused area due to the slow compensatory blood flow (59,60). However, APTw can exclude the influence of compensatory factors and directly reflect tissue metabolism damage. Our experimental results confirm that APTw has high diagnostic efficiency for ICAS. Therefore, APTw can provide added clinical diagnostic value in new dimensions from the perspective of molecular biology.

Limitations

Our study has several limitations. First, our study had a limited sample size, which may have introduced potential selection bias. Second, due to technical and time constraints, we did not perform APTw imaging in more than three slices covering the whole blood supply area for the narrowed artery. Third, we did not include patients with posterior circulatory artery stenosis because the APTw signal has been reported to have poor reproducibility in the subtentorial position (61).

Conclusions

High APTw-derived MTRasym could reflect pH variation in patients with symptomatic chronic ICAS, which may indicate the presence of potential metabolic alterations in brain tissues in chronic ischemia. Therefore, APTw imaging may be an effective method to provide a new dimension and additional clinical value in the diagnosis of patients with symptomatic chronic ICAS.

Acknowledgments

Funding: This work was supported by the Science and Technology Development Plan Contract of Shandong Province (No. 2009GG10002024).

Footnote

Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://qims.amegroups.com/article/view/10.21037/qims-21-1063/rc

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://qims.amegroups.com/article/view/10.21037/qims-21-1063/coif). All the authors report that this work was supported by the Science and Technology Development Plan Contract of Shandong Province (No. 2009GG10002024). And WD is an employee of GE Healthcare. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This prospective study was approved by the Shandong Province Qianfoshan Hospital Review Board (No. S986), and written informed consent was obtained from all patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
